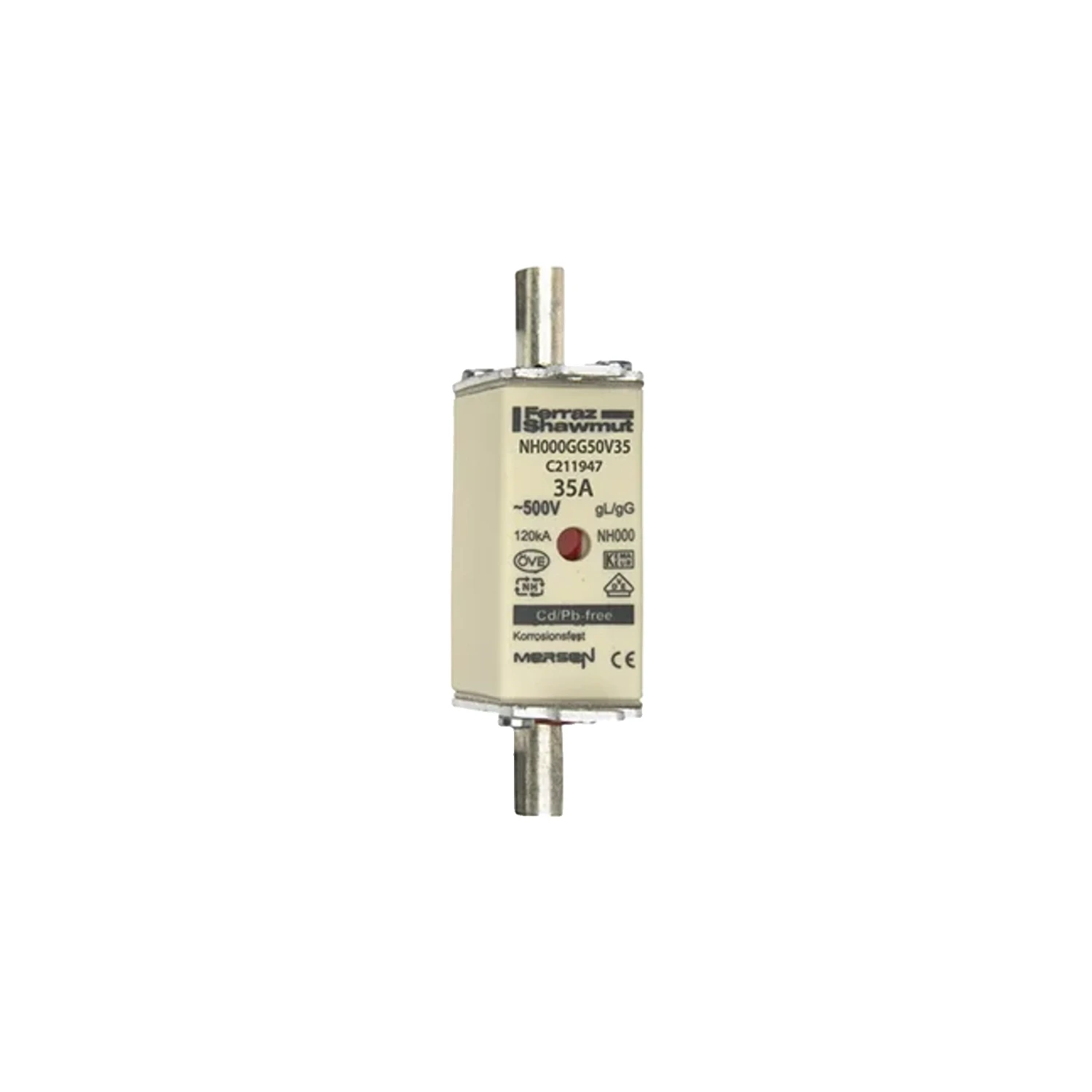

NH00 35A gG 500VAC Ceramic Cartridge Fuse Link Size 000

Photo is representative

NH00 35A gG 500VAC Ceramic Cartridge Fuse Link Size 000

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NHOO35
GTIN —
Stock status: In stock

priced individually

Net price: £3.34

Gross price

£4.00

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH00 gG fuse-link, size 000, rated 35A. For general purpose cable and line protection in LV AC circuits up to 500VAC.

Ceramic body with copper and silver-plated contacts. Double indicator fitted. Live (non-isolated) gripping lug.

  • Rated current: 35A
  • AC voltage: 500V | DC voltage: 250V
  • AC breaking capacity: 120kA | DC breaking capacity: 80kA
  • Class: gG (full-range)
  • Width: 21mm
Specifications

Rated Current

35 A

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

250 V

Rated Breaking Capacity AC

120 kA

Rated Breaking Capacity DC

80 kA

Fuse Class

gG

Size

000

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Indication System

Double indicator

Gripping Lugs

Live (non-isolated)

Power Dissipation at Rated Current

3 W

Width

21 mm

Standards

IEC 60269-1, IEC 60269-2, VDE 0636 Part 201
