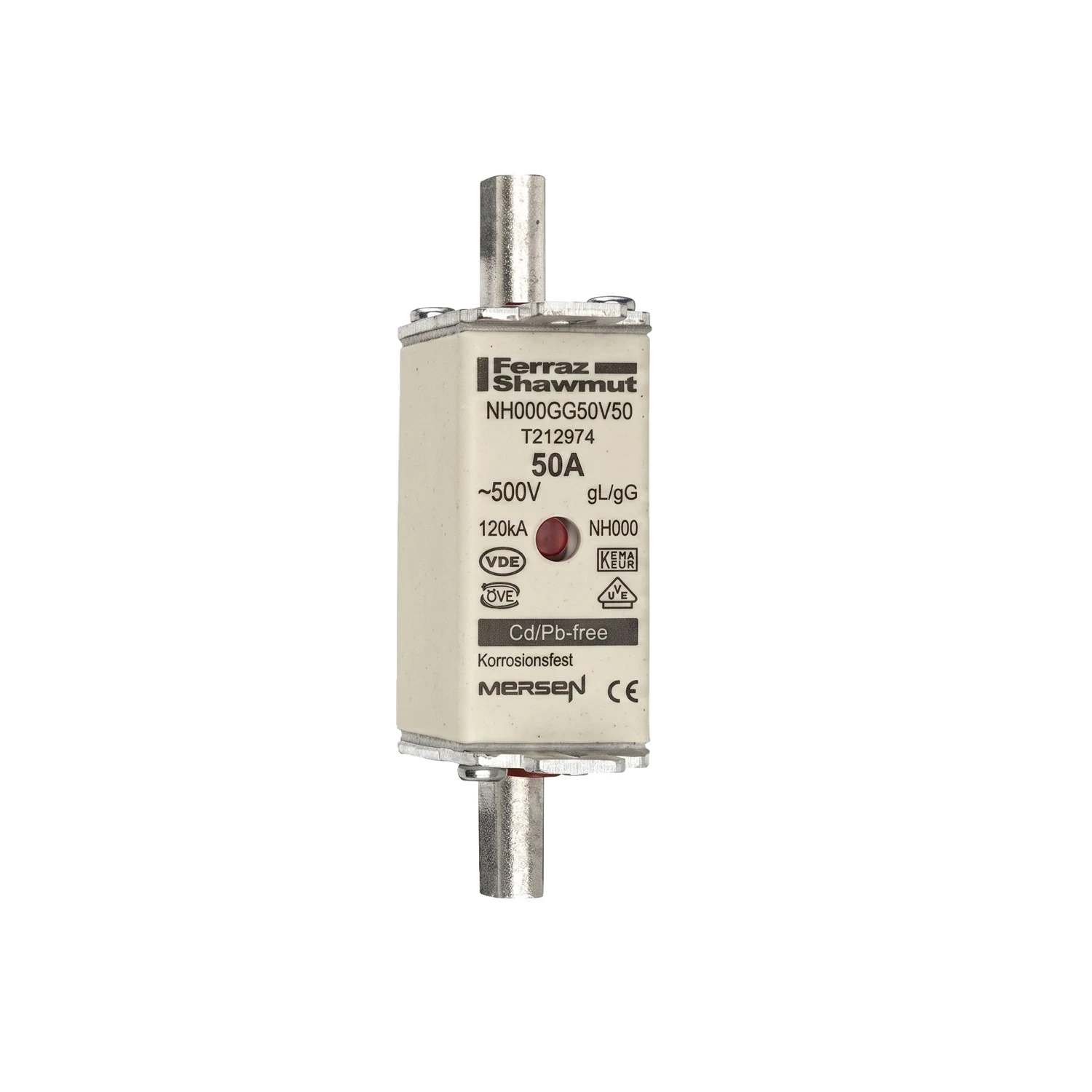

NH00 50A gG 500V AC Ceramic Fuse-Link Size 000

Photo is representative

NH00 50A gG 500V AC Ceramic Fuse-Link Size 000

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NHOO50
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.63

Gross price

£4.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH size 000 fuse-link rated 50A gG. Suits general-purpose cable and line protection on AC circuits. Full-range breaking capacity — interrupts from lowest fusing current up to rated breaking capacity.

  • Rated voltage: 500V AC / 250V DC
  • Breaking capacity: 120kA AC / 80kA DC
  • Body: ceramic, copper and silver-plated contacts
  • Double indicator fitted
  • To DIN 43 620 and IEC 60269-1 & -2
Specifications

Rated Current

50 A

Fuse Class

gG

Size

000

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

250 V

Breaking Capacity AC (IEC)

120 kA

Breaking Capacity DC (IEC)

80 kA

Power Dissipation at Rated Current

4.1 W

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Width

21 mm

Indication System

Double indicator

Non-Isolated Gripping Lugs

Yes

Standards

IEC 60269-1 and -2, VDE 0636 Part 201, DIN 43 620 Parts 1 to 4
