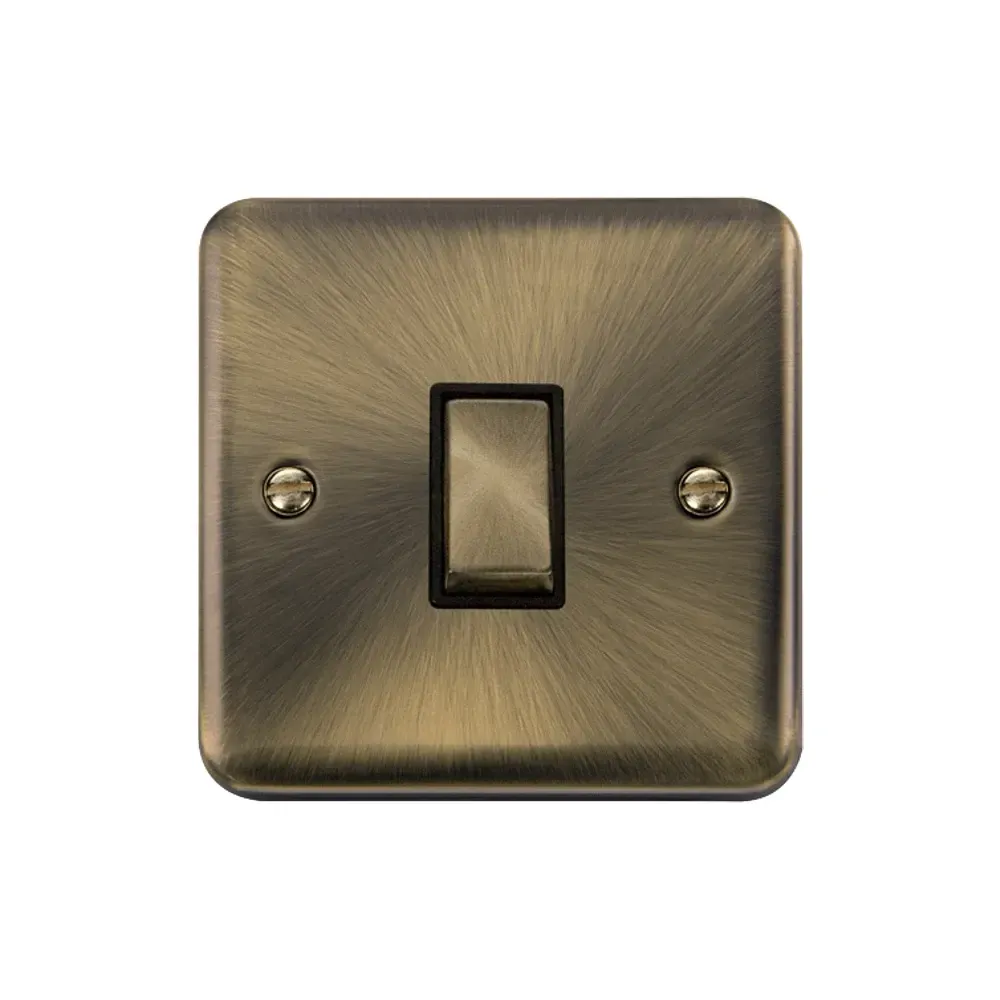

Click DPAB411BK 10AX Ingot 1 Gang 2 Way Switch - Antique Brass
Professional 10AX rated 2-way plate switch from Click’s Deco Plus range with premium antique brass finish and black insert. Features stainless steel construction and MiniGrid compatibility for versatile installation options. Suitable for LED, fluorescent and inductive load control up to 250V AC operation. Engineered with screw terminals accepting 4x1.5mm² or 2x2.5mm² cable capacity. Compact 88x88x8mm profile requires minimum 16mm back box depth. IP20 rating ensures safe indoor operation in dry environments. BS EN 60669-1 compliant construction includes brass terminals, nylon housing, and silver overlay contacts. 20-year manufacturer warranty provides long-term reliability.
Product Information
Product Features
Applications & Uses
Residential Lighting Control
Premium 2-way switching for hallways, staircases and rooms requiring multiple control points with antique brass aesthetic appeal.
Commercial Fluorescent Systems
10AX inductive load rating handles fluorescent ballasts and LED driver circuits in office and retail environments.
Heritage Building Installations
Antique brass finish complements period properties while meeting modern BS EN 60669-1 electrical safety standards.
Installation Guidelines
Terminal Connections
Use 0.5Nm torque on screw terminals. Strip cables to 12-15mm exposure length for optimal contact area.
Back Box Requirements
Standard UK 35mm deep back boxes accommodate 16mm minimum depth requirement with space for cable management.
Earth Connection
Connect earth conductor to dedicated terminal using appropriate green/yellow sleeving as per BS 7671 wiring regulations.
Standards & Compliance
BS EN 60669-1
Fully compliant with European switch standard covering electrical, mechanical and environmental performance requirements for domestic use.
UKCA Marking
UK Conformity Assessed marking demonstrates compliance with relevant UK electrical safety legislation and technical standards.
Frequently Asked Questions
-
What cable sizes fit the DPAB411BK screw terminals?
Terminals accommodate 4x1.5mm² solid conductors or 2x2.5mm² cables with 0.5Nm torque specification for secure connections.
-
What back box depth is needed for proper installation?
Minimum 16mm back box depth required. Standard UK back boxes provide adequate space for cable connections and terminations.
-
Is this switch compatible with other MiniGrid modules?
Yes, single width module design allows mixing with other Click MiniGrid range components in multi-gang installations.
