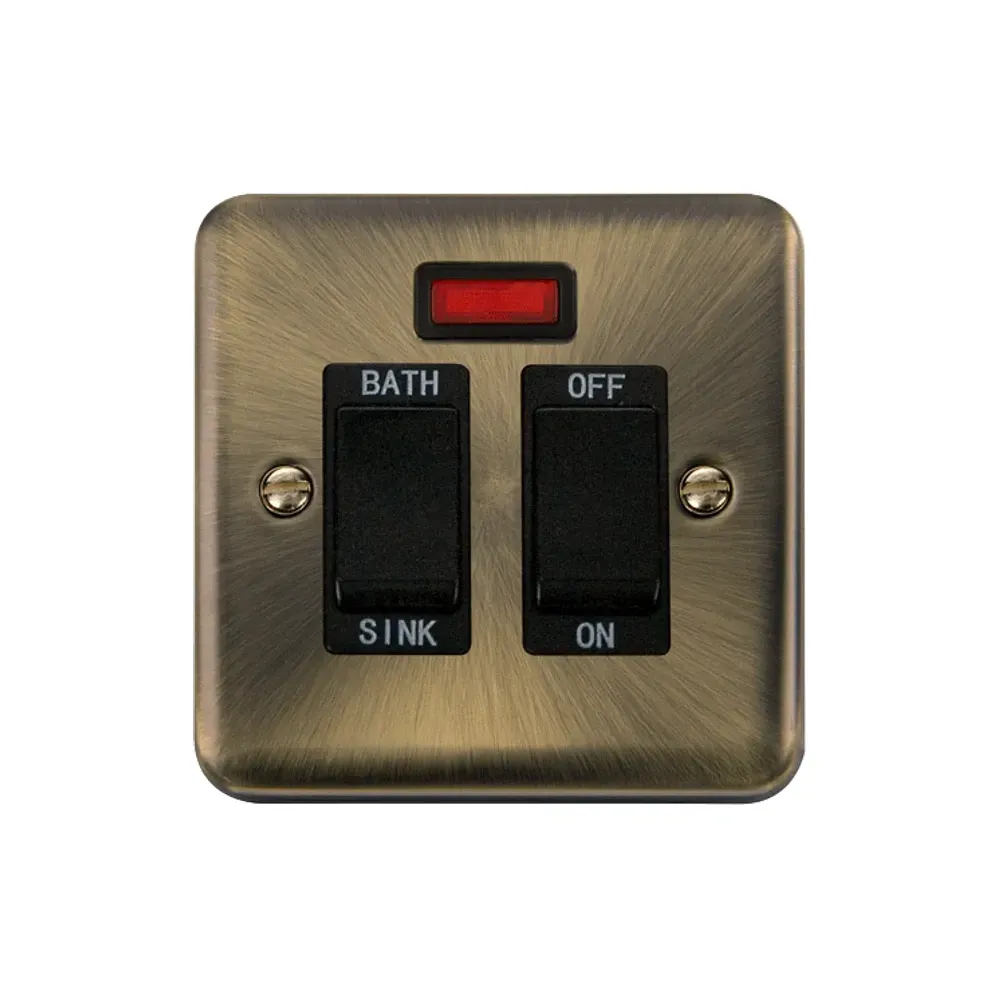

Click DPAB024BK 20A DP Immersion Switch - Antique Brass
Professional-grade Click Deco Plus 20A double pole immersion switch with red neon indicator for sink/bath applications. Features antique brass stainless steel plate with black insert, twin earth terminals, and BS EN 60669-1 compliance for reliable bathroom electrical control. Accommodates 3 x 2.5mm² solid conductors with screw terminals and requires minimum 25mm back box depth. IP20 rated construction with rounded profile design delivers robust performance in domestic electrical installations. Includes 20-year manufacturer warranty and comprehensive safety features for professional installation by qualified electricians.
Online:
Product Features
| Product Code | DPAB024BK |
|---|---|
| Electrical Rating | 20A Double Pole 250V AC |
| Switch Type | DP Immersion Switch with Red Neon |
| Plate Dimensions | 88 x 88 x 8mm |
| Front Plate Material | Stainless Steel Antique Brass |
| Insert Colour | Black Urea |
| Terminal Type | Screw Terminals Ø5mm |
| Terminal Capacity | 3 x 2.5mm² Solid Conductors |
| Ingress Protection | IP20 |
| Compliance | BS EN 60669-1, CE, UKCA |
| Back Box Depth | Minimum 25mm |
| Fixing Centres | 60.3mm Horizontal |
| Warranty | 20 Years |
Installation Requirements
Back Box Specifications
Minimum 25mm depth required with 60.3mm horizontal fixing centres. Standard electrical box compatibility for professional installation.
Terminal Connections
Screw terminals accommodate 3 x 2.5mm² solid conductors. Twin earth terminals with 1.8Nm torque specification for secure connections.
Circuit Requirements
20A double pole switching at 250V AC 50Hz. Mains isolation required before installation with circuit diagram reference.
Safety Features
Double Pole Isolation
Complete circuit isolation with double pole switching. Twin earth terminals provide enhanced safety for immersion heater applications.
Visual Indication
Red neon indicator shows switch status clearly. On/Off/Bath/Sink markings provide operational clarity for user safety.
Installation Safety
BS EN 60669-1 compliance ensures professional installation standards. Bare earth cables must be sleeved per regulations.
Frequently Asked Questions
-
What cable size does the DPAB024BK accommodate?
The switch accepts 3 x 2.5mm² solid conductors via screw terminals with Ø5mm terminal size and twin earth connections.
-
Is this switch suitable for both sink and bath immersion heaters?
Yes, the DPAB024BK is specifically designed for sink/bath immersion control with clear product marking and 20A double pole switching.
-
What back box depth is required for installation?
Minimum 25mm back box depth required with 60.3mm horizontal fixing centres for standard electrical installation practices.
-
Does the red neon indicator show live status?
Yes, the integrated red neon provides visual indication of switch status with clear On/Off/Bath/Sink markings for safe operation.
-
What compliance standards does this immersion switch meet?
The DPAB024BK meets BS EN 60669-1 standards with CE and UKCA marking for professional electrical installation compliance.
