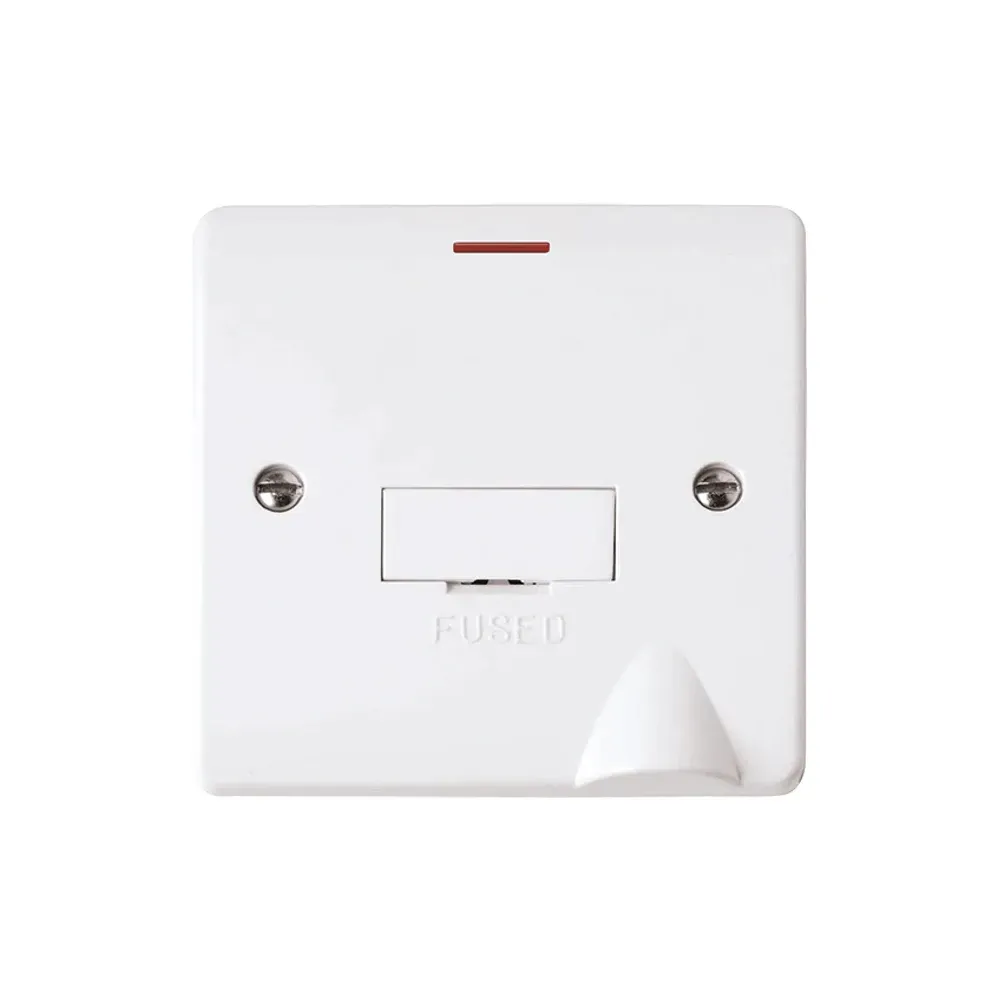

Click CMA2053 13A unswitched fused connection unit white finish

Photo is representative

Click CMA2053 13A Unswitched Fused Connection Unit LED - White

13A unswitched fused connection unit with red LED indicator for fixed appliance connections up to 3kW. Features screw terminals accepting 3 x 2.5mm² or 2 x 4mm² conductors with 2Nm torque specification. BS 1363-4 compliant with twin earth terminals and optional 10mm flex outlet. Constructed from antimicrobial urea formaldehyde with 25mm minimum backbox depth requirement. Suitable for immersion heaters, extractor fans, and kitchen appliances requiring fused protection. UKCA marked with 25-year manufacturer warranty.

Product Information

Stock Code CMA2053
MPN —
GTIN —
Stock status: In stock
Price: £5.71
incl. VAT, 20% priced individually

Product Features
Current Rating 13A at 250V AC, 50Hz
Configuration 1-Gang Unswitched Fused Connection Unit
Load Compatibility Resistive loads up to 3kW
Terminal Specification Screw terminals, 5mm diameter, 2Nm torque
Cable Capacity 3 x 2.5mm² or 2 x 4mm² conductors
Fuse Type 13A BS 1362 plug top cartridge fuse
LED Indicator Red LED shows circuit status
Mounting Requirements 25mm minimum backbox depth
Flex Outlet Optional 10mm diameter bottom outlet
Compliance Standards BS 1363-4, BS 1362, UKCA marked
IP Rating IP20 for standard indoor use
Construction Antimicrobial urea formaldehyde, polar white
Operating Temperature -5°C to +40°C ambient range
Warranty Period 25-year manufacturer warranty

Documents

Installation Specifications

Terminal Configuration

Screw terminals with 5mm diameter accept multiple cable sizes. 2Nm torque specification ensures secure connections without over-tightening.

Mounting Requirements

86mm x 86mm faceplate with 60.3mm horizontal fixing centres. 25mm minimum backbox depth accommodates rear housing.

Cable Entry Options

Optional 10mm diameter flex outlet at bottom of plate. Standard knockouts accept conduit entries for fixed wiring.

Applications

Immersion Heaters

13A rating suitable for 3kW immersion heaters. LED indicator shows heating element status for maintenance diagnostics.

Kitchen Appliances

Fixed connection for dishwashers, waste disposal units, and built-in appliances. Fused protection prevents appliance damage.

Ventilation Systems

Extractor fans and bathroom ventilation requiring switched isolation. Red LED confirms power availability when troubleshooting.

Frequently Asked Questions

  • What backbox depth is required for the Click CMA2053?

    Minimum 25mm backbox depth required. Standard 35mm backbox provides optimal cable management space for 2.5mm² ring main connections.

  • Can this FCU handle 3kW immersion heater loads?

    Yes, 13A rating supports resistive loads up to 3kW at 230V. LED indicator confirms circuit status for fixed appliances.

  • What fuse rating should be used with this connection unit?

    Uses standard 13A BS 1362 plug top cartridge fuse. Replace only with identical rating fuse for appliance protection.

  • Are the terminals suitable for ring main wiring?

    Screw terminals accept 3 x 2.5mm² conductors at 2Nm torque. Twin earth terminals fitted for ring main continuation.
