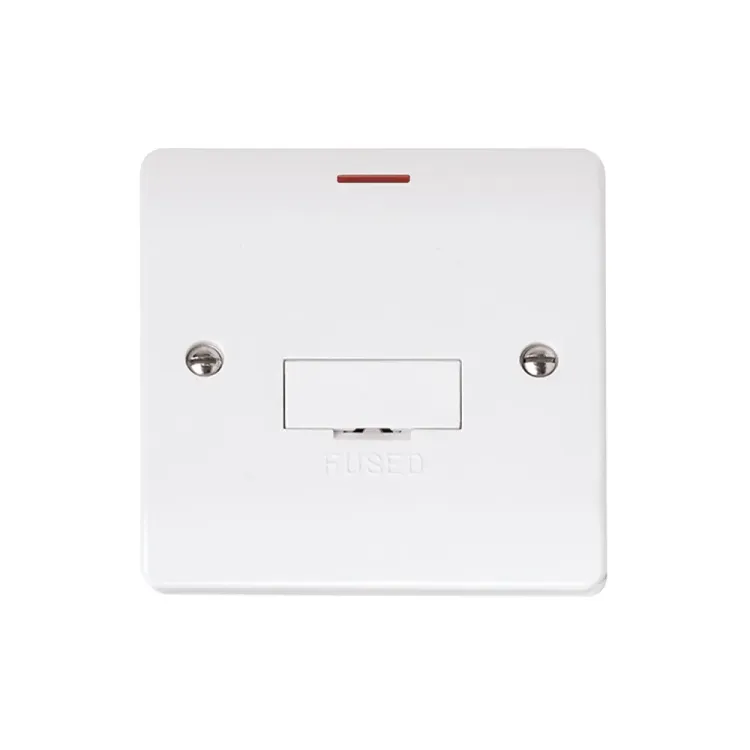

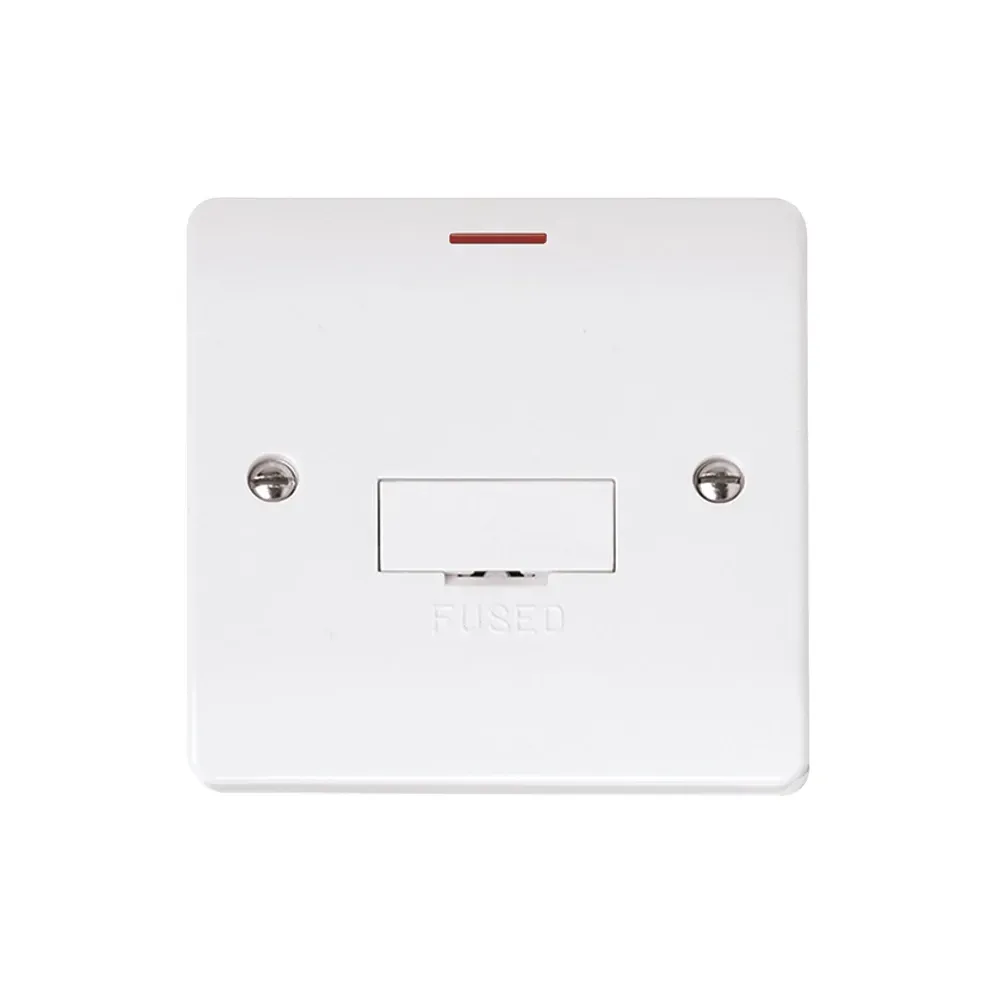

Click MODE CMA2653 13A Unswitched FCU with LED - Polar White
13A fused connection unit with LED indicator for fixed appliance circuits up to 13A resistive load. Features screw terminals accepting 3 x 2.5mm² or 2 x 4mm² conductors with twin earth provision. Red LED indicates circuit status for appliances like boilers, extractor fans, and immersion heaters. BS 1363-4 compliant with UKCA marking. Antimicrobial coating certified for 99.9% bacteria and virus elimination. Requires minimum 25mm backbox depth. Torque terminals to 2Nm using Ø5mm screwdriver. Click MODE range offers 25-year warranty with rounded profile design in polar white finish. Temperature rated -5°C to +40°C for residential and commercial installations.
Online:
Product Features
| Current Rating | 13A Resistive Load |
|---|---|
| Connection Type | Fused Connection Unit (Unswitched) |
| LED Indicator | Red LED Status Light |
| Terminal Type | Screw Terminals (Ø5mm) |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² |
| Terminal Torque | 2Nm |
| Backbox Depth | 25mm Minimum |
| Compliance | BS 1363-4, BS 1362, UKCA |
| Operating Temperature | -5°C to +40°C |
| IP Rating | IP20 |
| Antimicrobial Coating | 99.9% Kill Rate Certified |
| Warranty | 25 Years |
Installation Specifications
Terminal Configuration
Brass screw terminals accept 3 x 2.5mm² solid conductors or 2 x 4mm² with dedicated twin earth provision for ring main connections.
Mounting Requirements
86 x 86 x 9.5mm plate dimensions with 60.3mm horizontal fixing centres. Compatible with standard UK backboxes from 25mm depth.
Torque Specifications
Terminal screws require 2Nm torque using Ø5mm flat-blade screwdriver. Proper torque ensures secure connection without conductor damage.
Professional Applications
Fixed Appliances
Ideal for boilers, immersion heaters, and central heating controls requiring permanent 13A supply with visual circuit status indication.
Ventilation Systems
Suitable for extractor fans and mechanical ventilation units. LED provides remote status monitoring for maintenance schedules.
Commercial Installations
Temperature rated -5°C to +40°C with antimicrobial coating makes suitable for commercial kitchens and healthcare environments.
Frequently Asked Questions
-
What backbox depth is required for the CMA2653 FCU?
Minimum 25mm backbox depth required. Standard 35mm backboxes provide adequate clearance for cable connections and meet installation best practices.
-
Can this FCU handle inductive loads like extractor fans?
Rated for 13A resistive loads. For inductive loads like motors, derate to approximately 80% capacity. Consult manufacturer specifications for specific appliances.
-
What appliances typically use unswitched FCUs?
Boilers, immersion heaters, extractor fans, and fixed appliances requiring permanent connection. LED indicator shows circuit status without switching control.
-
What torque setting for terminal connections?
Tighten screw terminals to 2Nm using Ø5mm flat-blade screwdriver. Over-tightening may damage brass terminals or conductor strands.
-
Does this meet Part P Building Regulations?
Yes, BS 1363-4 and UKCA compliant for domestic installations. Installation by competent person or notification to Building Control required.
