278748 2A C curve miniature circuit breaker, 2 pole.

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

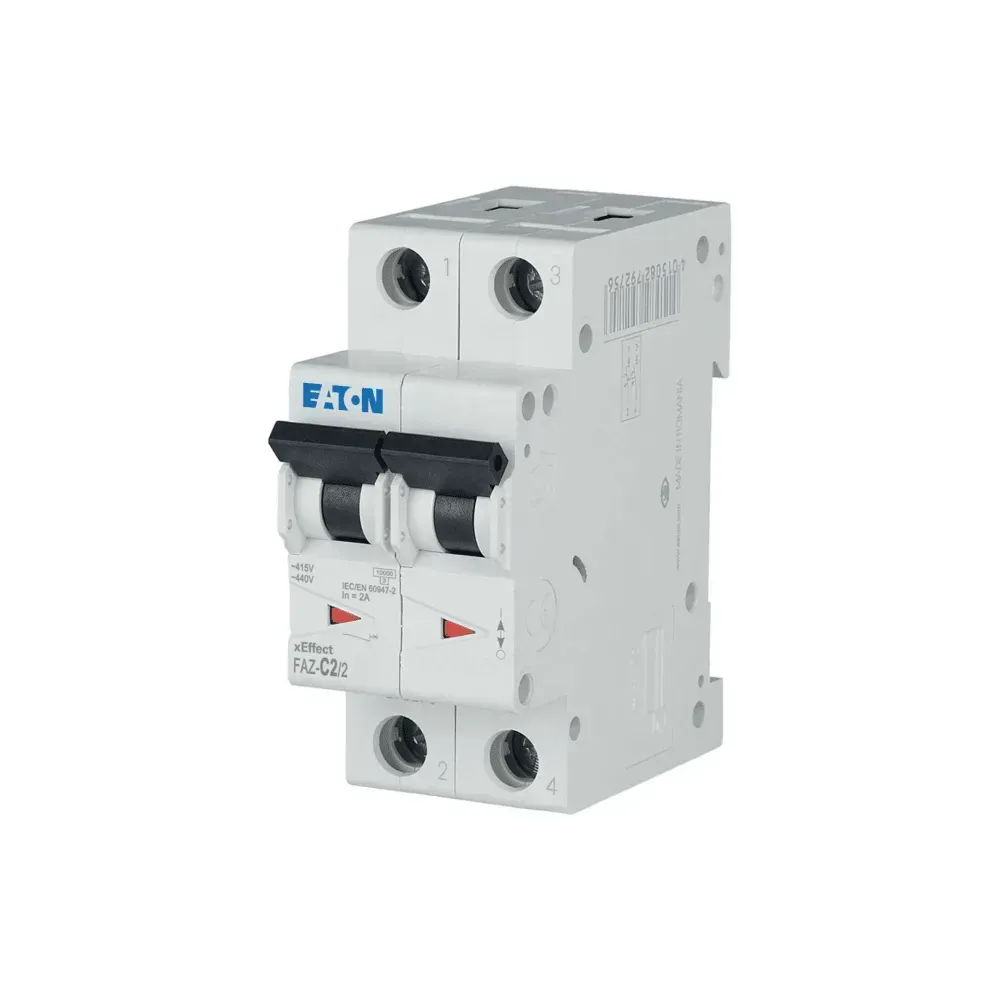

Eaton 2A 2P C Curve 10kA MCB

This Eaton 2A 2-pole MCB provides C curve protection with a 10kA breaking capacity.

  • 2A rated current.
  • 2-pole configuration.
  • C curve tripping characteristic.
  • 10kA breaking capacity.
Stock Code 278748
Few in stock
Price 55.48 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Curve

    C

  • Model

    FAZ-C2/2

  • Poles

    2-pole

  • Series

    Moeller xEffect - FAZ

  • Modules

    2

  • Mounting

    Top-hat rail IEC/EN 60715

  • Certifications

    UL, CSA, IEC/EN 60898, IEC/EN 60947-2, CE

  • Current Rating

    2A

  • Product Weight

    0.226 kg

  • Breaking Capacity

    10kA

  • Protection Degree

    IP20 (IP40 when fitted)

  • Voltage Rating (AC)

    240V/415V

  • Voltage Rating (IEC)

    415 VAC

  • Voltage Rating (UL/CSA)

    480Y/277 V AC; 96 V DC

Documents

Brand

Eaton
