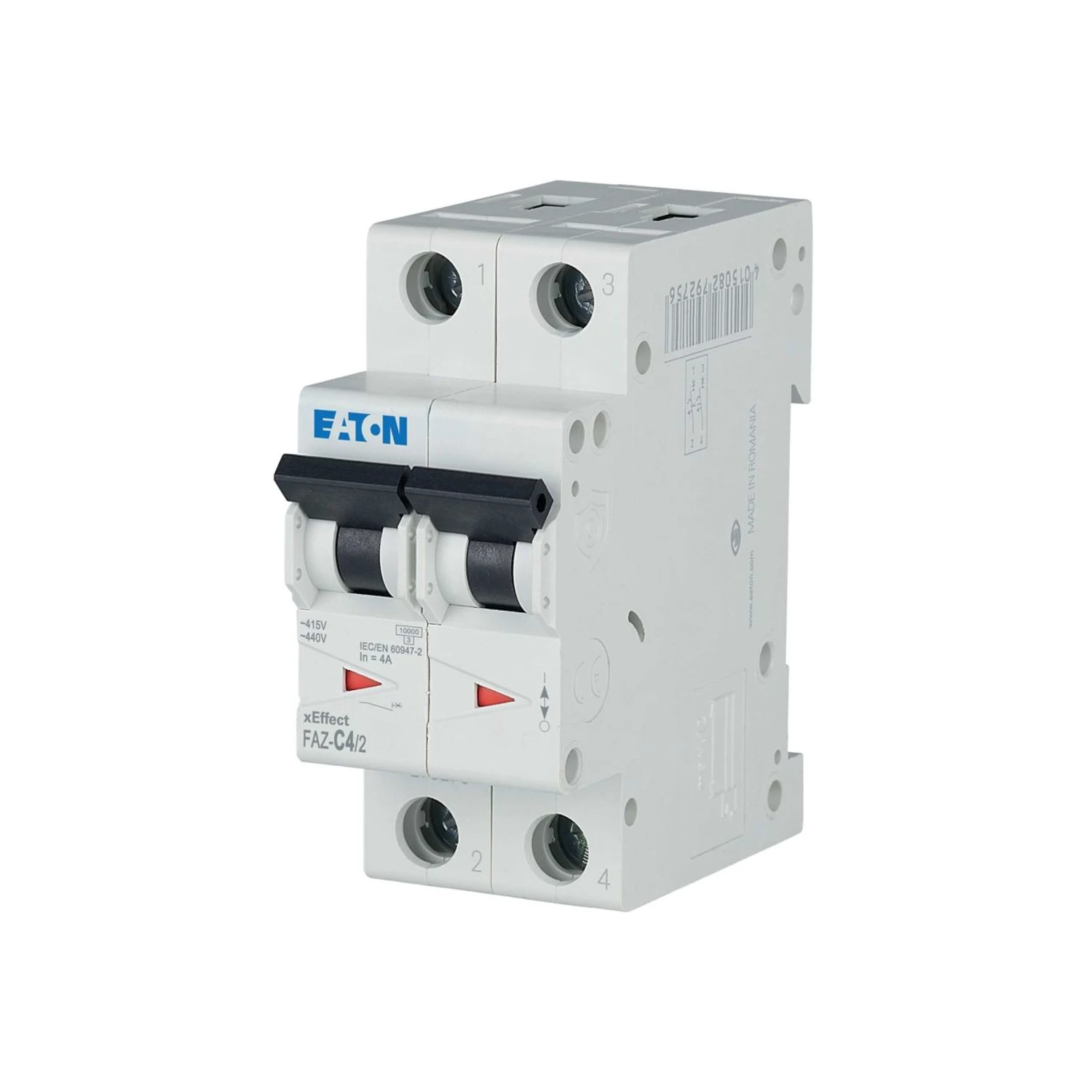

Eaton 2P MCB 4A Type C 15kA FAZ xEffect

Photo is representative

Eaton 2P MCB 4A Type C 15kA FAZ xEffect

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 278752
GTIN 4015082787523
Stock status: In stock

priced individually

More arriving soon

Net price: £46.84

Gross price

£56.21

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Two-pole MCB from the Eaton Moeller xEffect FAZ range. Built to IEC 60947-2 for industrial and advanced commercial switchgear — not for use as a BCPD.

Rated 4A Type C with 15kA Icu at 400V AC. Current limiting class 3. Fits standard DIN rail to IEC/EN 60715 and takes up 2 module spacings.

  • Icu: 15kA at 230V and 400V AC (IEC 60947-2)
  • Icn: 10kA at 230V and 400V AC (IEC 60898-1)
  • Ics: 7.5kA
  • Terminal capacity: 25mm² (1x), 10mm² (2x)
  • Operating temp: -25°C to +75°C
  • Certifications: IEC/EN 60947-2, IEC/EN 60898, CE, UL, CSA
Specifications

Poles

2P

Rated Current In

4 A

Tripping Characteristic

Type C

Voltage Rating

240V AC / 415V AC

Rated Insulation Voltage Ui

440 V

Icu at 230V AC (IEC 60947-2)

15 kA

Icu at 400V AC (IEC 60947-2)

15 kA

Icn at 230V AC (IEC 60898-1)

10 kA

Icn at 400V AC (IEC 60898-1)

10 kA

Ics

7.5 kA

Current Limiting Class

3

Rated Impulse Withstand Voltage Uimp

4 kV

Overvoltage Category

III

Frequency

50–60 Hz

Mounting

DIN rail, IEC/EN 60715

Module Width

2 modules (36 mm)

Dimensions (W x H x D)

36 x 75.5 x 80 mm

Weight

0.225 kg

Terminal Capacity

25 mm² (1x); 10 mm² (2x)

Cable Range (solid/multi)

1–25 mm²

Operating Temperature

-25°C to +75°C

IP Rating

IP20 (IEC)

Pollution Degree

2

Certifications

IEC/EN 60947-2, IEC/EN 60898, CE, UL (E177451), CSA (204453)

Electrical Lifespan

10,000 operations
