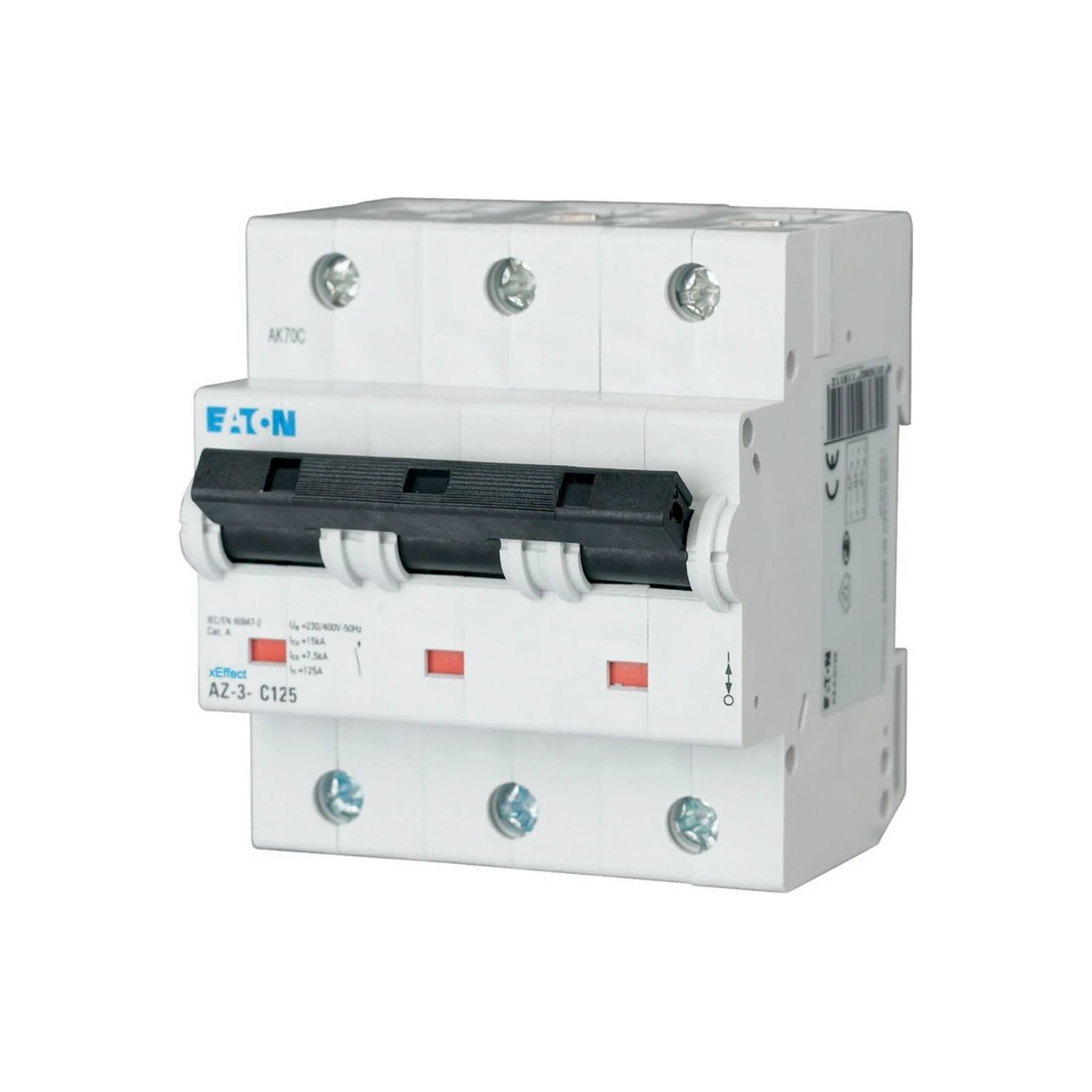

Eaton 3P MCB 100A Type B 20kA AZ-3-B100

Photo is representative

Eaton 3P MCB 100A Type B 20kA AZ-3-B100

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 174513
GTIN 4015081709694
Stock status: 5 in stock

priced individually

More arriving soon

Net price: £130.94

Gross price

£157.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Three-pole MCB from Eaton’s Moeller xEffect AZ series. Rated 100A Type B at 400V AC with a 20kA Icu breaking capacity to IEC 60947-2. Current limiting class 3. Built for industrial and commercial switchgear panels.

Note: a 1°C rise in ambient temperature results in a 0.5% linear reduction in current carrying capacity.

  • Rated voltage: 400V AC
  • Breaking capacity: 20kA Icu at 230V and 400V
  • Terminal range: 2.5–50mm² solid or multi-wire
  • Operating temperature: -25°C to +55°C
  • IP20, pollution degree 2
Specifications

Poles

3P

Current Rating (In)

100 A

Tripping Characteristic

Type B

Rated Operational Voltage (Ue)

400 V AC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4 kV

Breaking Capacity (Icu) at 230V

20 kA

Breaking Capacity (Icu) at 400V

20 kA

Current Limiting Class

3

Frequency

50/60 Hz

IP Rating

IP20

Pollution Degree

2

Overvoltage Category

III

Terminal Conductor Range

2.5–50 mm²

Operating Temperature

-25°C to +55°C

Heat Dissipation (current-dependent)

27.3 W

Dimensions (W x H x D)

81 x 90 x 75 mm

Weight

0.699 kg

Standard

IEC 60947-2
