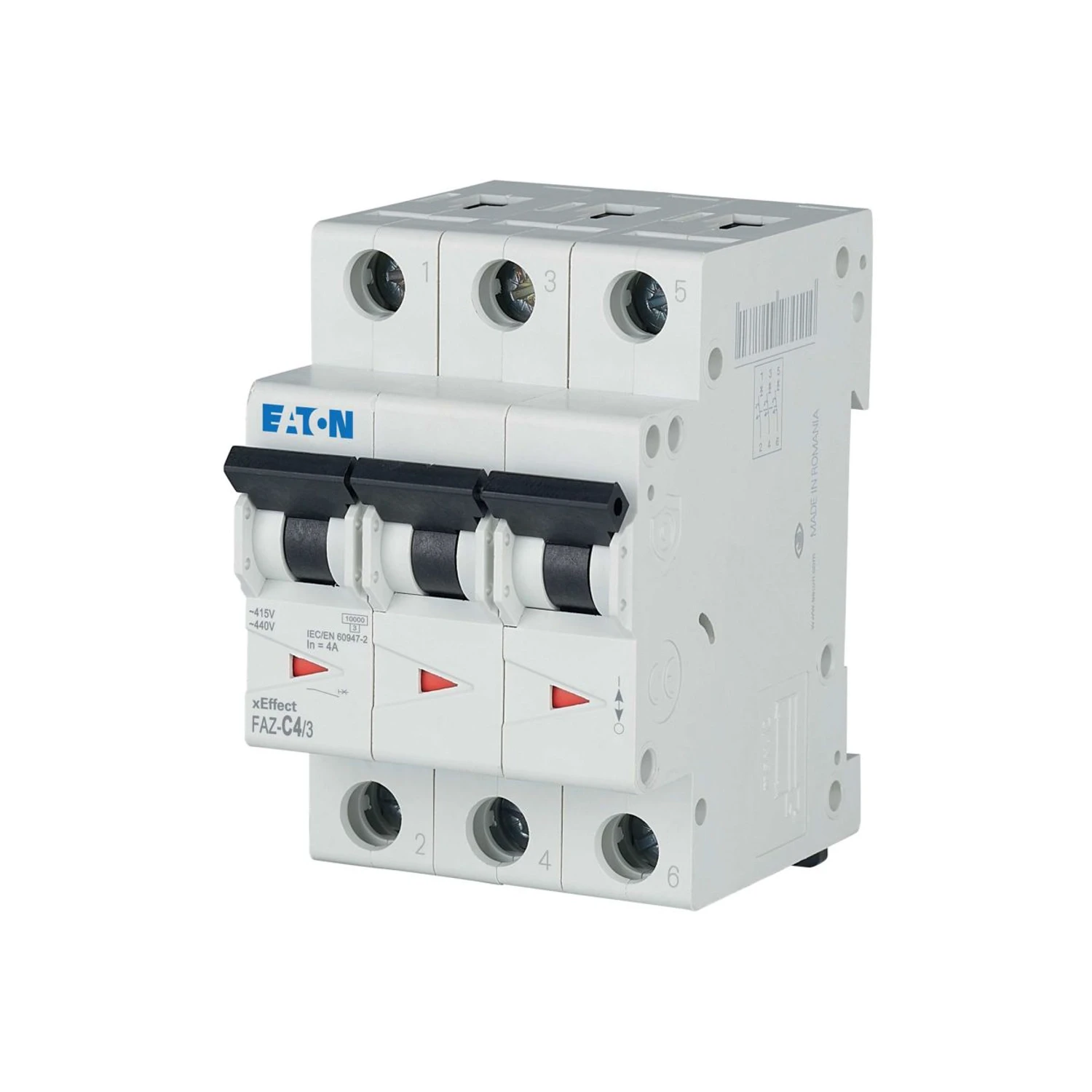

Eaton 3P MCB 4A Type C 15kA FAZ xEffect

Photo is representative

Eaton 3P MCB 4A Type C 15kA FAZ xEffect

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 278865
GTIN 4015082788650
Stock status: In stock

priced individually

More arriving soon

Net price: £66.94

Gross price

£80.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Three-pole MCB from the Eaton Moeller FAZ xEffect range. Rated to IEC/EN 60947-2 for industrial and commercial switchgear — not for use as BCPD.

Type C curve with 15kA Icu at both 230V and 400V. Current limiting class 3. Twin-purpose terminals accept conductors up to 25mm².

  • Icu: 15kA at 230/400V (IEC/EN 60947-2)
  • Icn: 10kA at 230/400V (IEC/EN 60898-1)
  • Ics: 7.5kA
  • Voltage: 415V AC (IEC/EN 60898-1), 440V AC (IEC/EN 60947-2)
  • Operating temp: -25°C to +75°C
Specifications

Poles

3P

Current Rating

4 A

Curve Type

Type C

Icu (IEC/EN 60947-2) at 230V

15 kA

Icu (IEC/EN 60947-2) at 400V

15 kA

Icn (IEC/EN 60898-1) at 230V

10 kA

Icn (IEC/EN 60898-1) at 400V

10 kA

Ics

7.5 kA

Current Limiting Class

3

Voltage Rating (IEC/EN 60898-1)

415V AC

Voltage Rating (IEC/EN 60947-2)

440V AC

Frequency

50/60 Hz

Terminal Capacity (Main Cable)

10 mm² (2x)

Terminal Capacity (Control Cable)

25 mm² (1x)

Conductor Cross Section

1–25 mm²

Mounting

DIN rail IEC/EN 60715

Module Width

3 modules (54 mm)

IP Rating

IP20

Operating Temperature

-25°C to +75°C

Overvoltage Category

III

Pollution Degree

2

Electrical Lifespan

10,000 operations

Weight

0.338 kg

Standards

IEC/EN 60947-2, IEC/EN 60898-1, CE

Documents

datasheet Eaton 278865 Datasheet
