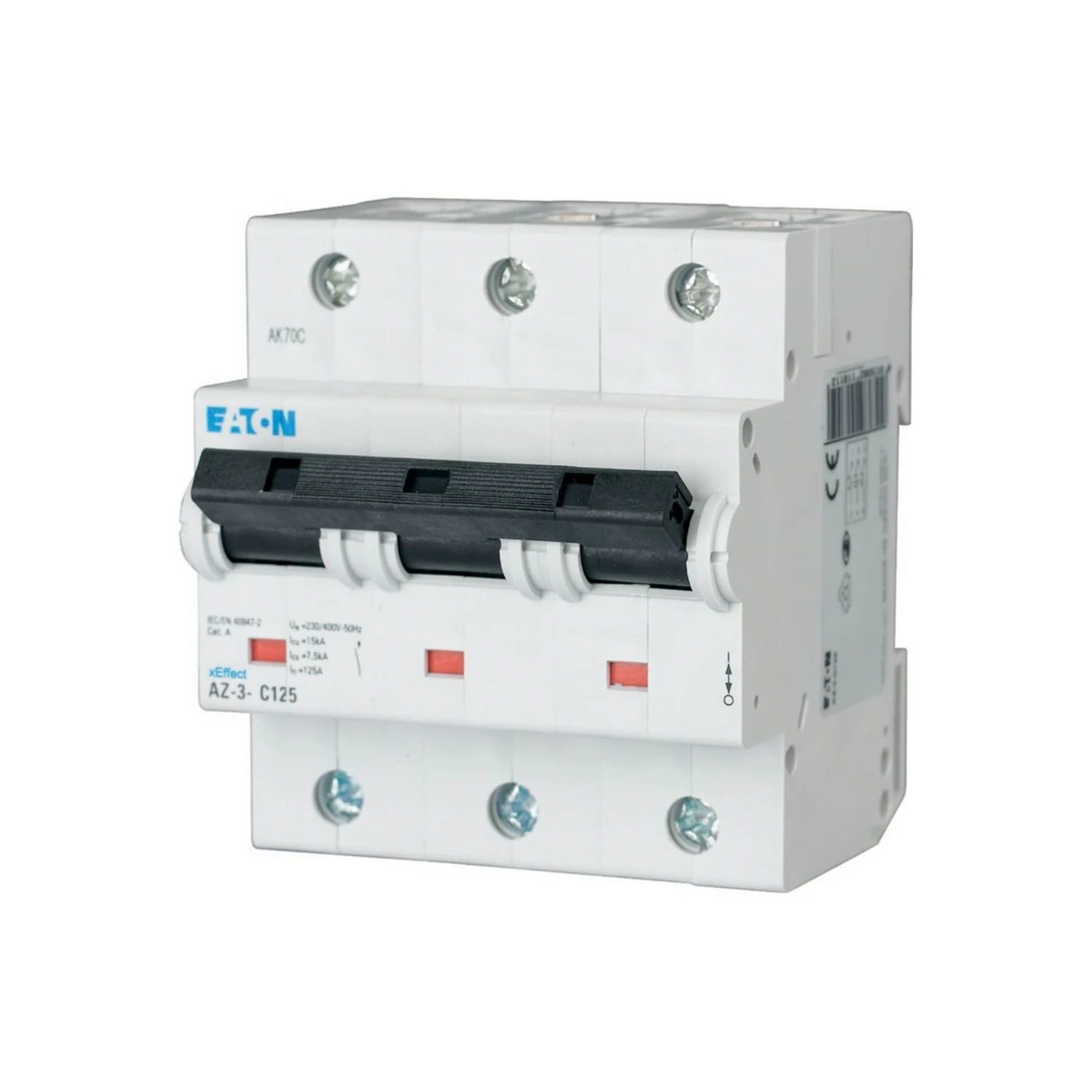

Photo is representative
Eaton 3P MCB 63A Type D 25kA AZ-3-D63
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
211820
GTIN
4015082118204
Stock status:
In stock
priced individually
More arriving soon
Net price: £132.21
Gross price
£158.65
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Three-pole MCB from the Eaton Moeller xEffect AZ range. Rated 63A with a Type D tripping characteristic — suited to industrial and advanced commercial switchgear where high inrush loads demand a slower instantaneous trip threshold.
25kA breaking capacity at both 230V and 400V AC makes it suitable for high fault-level boards. Current limiting class 3, selectivity class 3.
- 3P, 63A, Type D, 25kA Icu (IEC/EN 60947-2)
- 230/400V AC, 50/60Hz
- DIN rail mount (IEC/EN 60715), 4.5 modules wide
- Terminal range: 2.5–50mm² solid or stranded
- Operating temp: -25°C to +55°C
