120660 - Eaton 4 Pole 16A 30mA C-Curve RCBO 120660

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

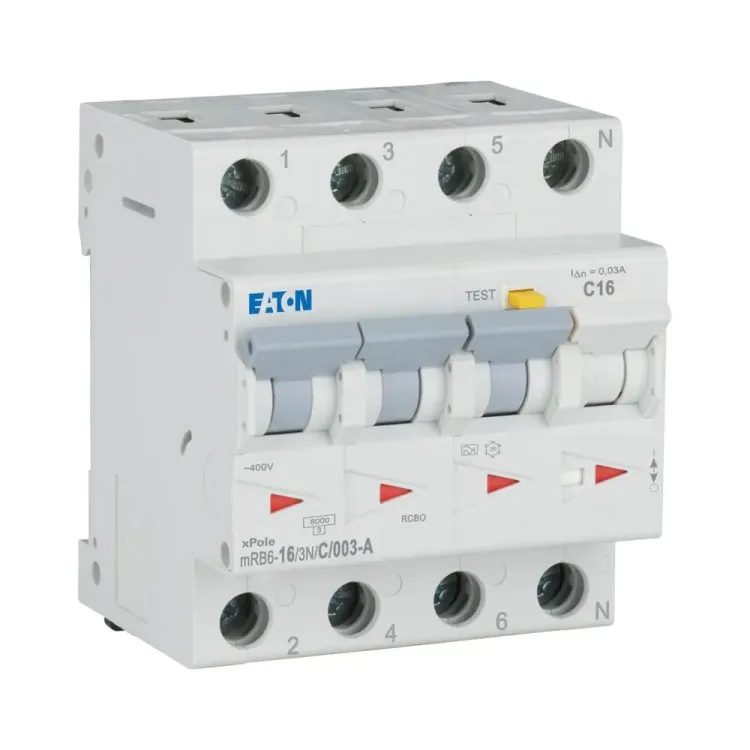

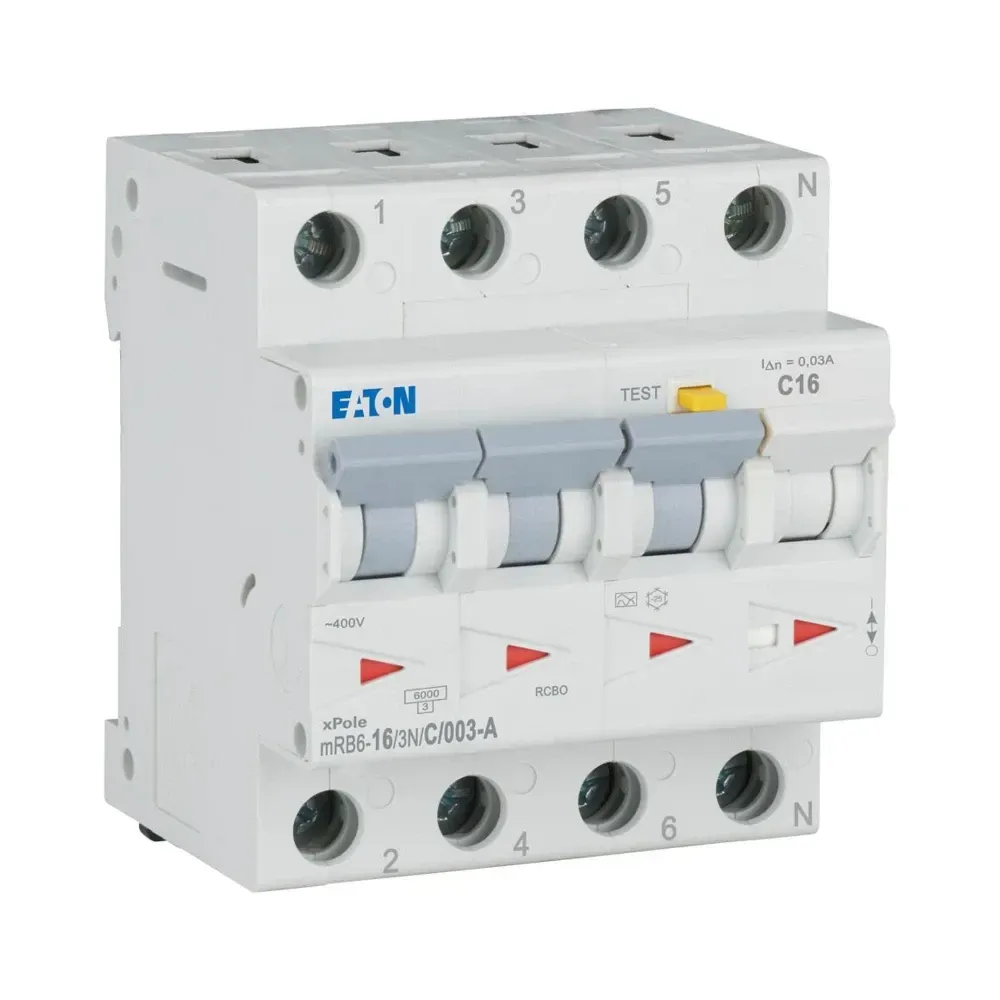

Eaton 4 Pole 16A 30mA C-Curve RCBO 120660

The Eaton 4 Pole 16A 30mA C-Curve RCBO 120660 is a crucial component for protecting electrical installations with its up to 16 Amps rating and includes a test button. It offers C Curve tripping for enhanced safety.

Stock Code 120660
In stock
Price 155.93 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Sku

    120660

  • Lifespan

    S

  • Tripping

    Non-Delayed

  • Standards

    IEC/EN 61009

  • Sensitivity

    DC And Pulsed Current

  • Rated Current

    Ie A 6 - 25

  • Characteristic

    C

  • Rated Frequency

    F Hz 50

  • Selectivity Class

    3

  • Rated Fault Currents

    I n mA 30 100 300

  • Electrical Operations

    > 4000

  • Mechanical Operations

    > 20000

  • Rated Operating Voltage

    Ue V AC 230/400

  • Rated Switching Capacity

    Icn kA 6

  • Rated Non-Tripping Current

    I no 0.5 x I n

  • Rated Impulse Withstand Voltage

    Uimp kV 4 (1.2/50s)

  • Limit Values Of The Operating Voltage

    V AC 0.85 x 1.1 x Un

  • Maximum Max. As Short-Circuit Protective Device

    A gL 100

Brand

Eaton
