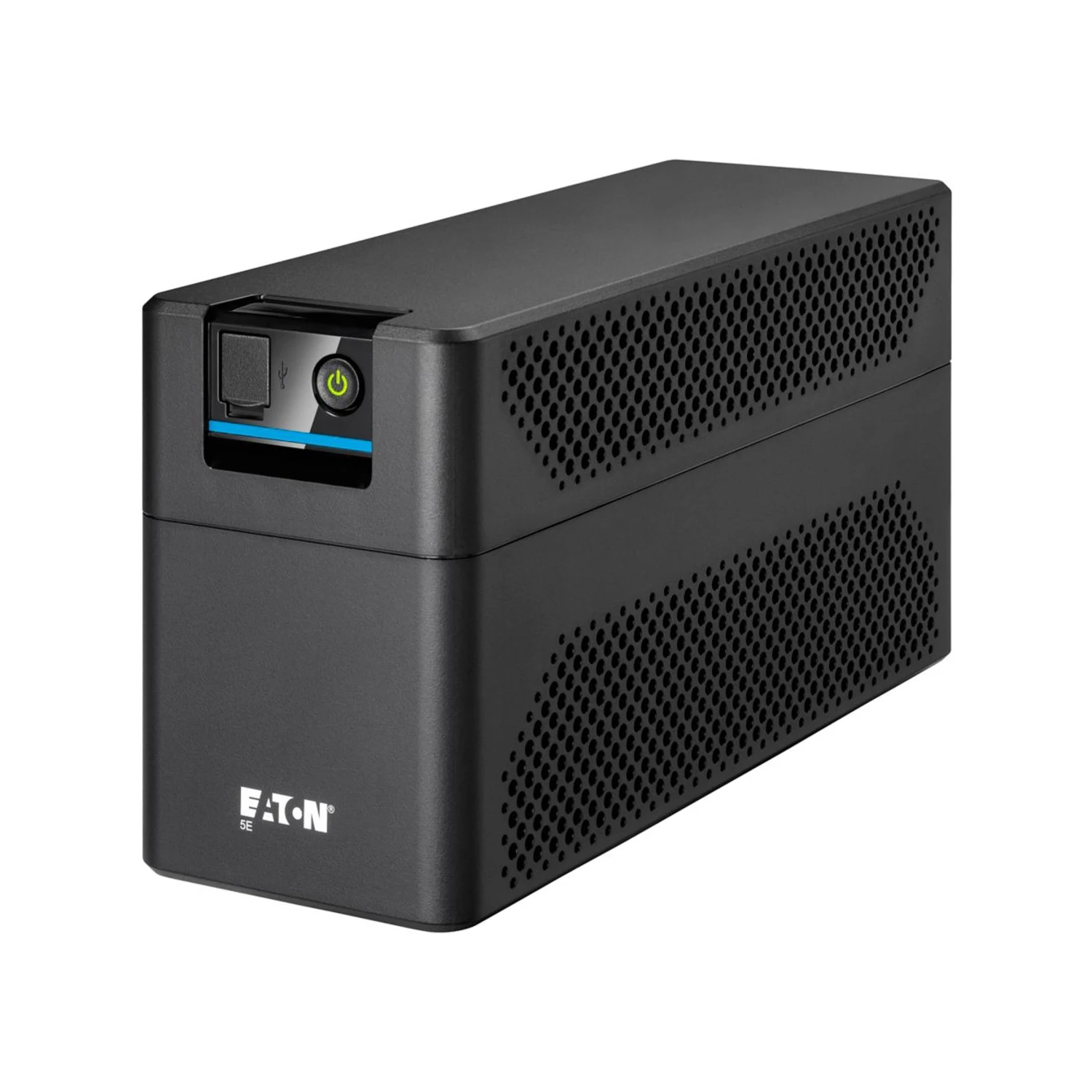

Eaton 5E Gen2 UPS 700VA 360W Line-Interactive C14 Input 4x C13 Output

Photo is representative

Eaton 5E Gen2 UPS 700VA 360W Line-Interactive C14 Input 4x C13 Output

Product Information

Stock Code 5E700UI
GTIN —
Stock status: 7 in stock

priced individually

More arriving soon

Net price: £272.10

Gross price

£326.51

This item is not available to order online. Contact us to arrange supply.

Line-interactive UPS from Eaton’s 5E Gen2 range. 700VA/360W capacity with automatic voltage regulation. Suits small office computers, network gear, and desktop equipment.

C14 input accepts 140–300 V, handles input frequency from 45–63 Hz — covers most European single-phase supplies without switching to battery. USB port is HID compliant, works with Eaton UPS Companion software for safe shutdown and energy metering.

  • Input: C14, 230 V nominal (220/230/240 V), 140–300 V range
  • Outputs: 4x C13, 230 V nominal
  • Battery: Sealed lead-acid, 12 V / 7 Ah, deep-discharge protection, cold-start capable
  • Comms: USB HID, LED status indicators
  • Efficiency at max load: 95%
  • Operating temp: 0–40 °C
Specifications

Topology

Line-interactive

VA Rating

700 VA

Wattage

360 W

Input Connection

C14

Input Nominal Voltage

230 V (220/230/240 V)

Input Voltage Range

140–300 V

Input Frequency Range

45–63 Hz

Output Receptacles

4x C13

Output Nominal Voltage

230 V

Output Voltage Range

195–257 V

Battery

Sealed lead-acid, 12 V / 7 Ah

Battery Quantity

1

Communication

USB (HID compliant)

Efficiency at Max Load

95%

Operating Temperature

0–40 °C

Relative Humidity

0–90% non-condensing

Dimensions (L x H x W)

288 x 148 x 100 mm

Weight

4.18 kg

Certifications

IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, UKCA, EAC

Documents

datasheet Eaton 5E700UI Datasheet
