Eaton Breaker Auxiliary Switch 1NO+1NC LH Range MCB Right Mount 230V

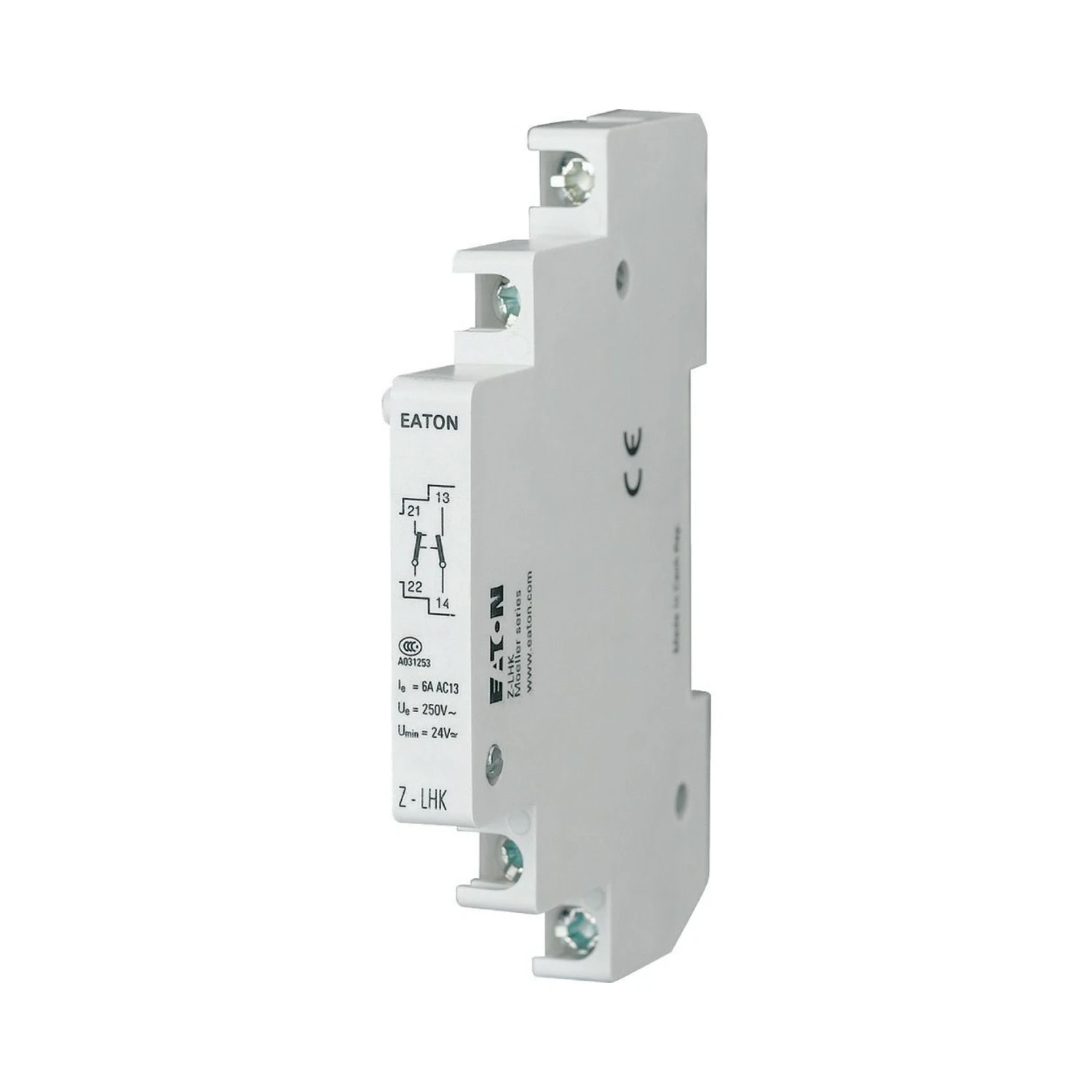

Photo is representative

Eaton Breaker Auxiliary Switch 1NO+1NC LH Range MCB Right Mount 230V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 248440
GTIN —
Stock status: 4 in stock

priced individually

More arriving soon

Net price: £21.77

Gross price

£26.12

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Auxiliary contact block for Eaton PLHT and AZ miniature circuit breakers. Fits to the right-hand side of the MCB to add 1NO and 1NC contact for signalling and control circuits in industrial and commercial switchgear.

Suitable for main contact units up to 8A, 2-pole max.

  • Contact arrangement: 1NO + 1NC
  • Rated operational voltage: 230V AC
  • Rated switch current: 6A
  • Operating temperature: -5°C to +40°C
  • Compatible devices: AZ, PLHT series MCBs
Specifications

Contact Arrangement

1NO + 1NC

Rated Operational Voltage (Ue)

230V AC

Rated Switch Current

6A

Max Main Contact Current

8A

Max Poles (Main Contact Unit)

2

Mounting Position

Right-hand mount

Compatible Devices

AZ, PLHT

Operating Temperature

-5°C to +40°C

Depth

80mm

Height

75mm

Width

8.8mm

Weight

0.041kg

Certifications

EN45545-2, IEC 61373, RoHS
