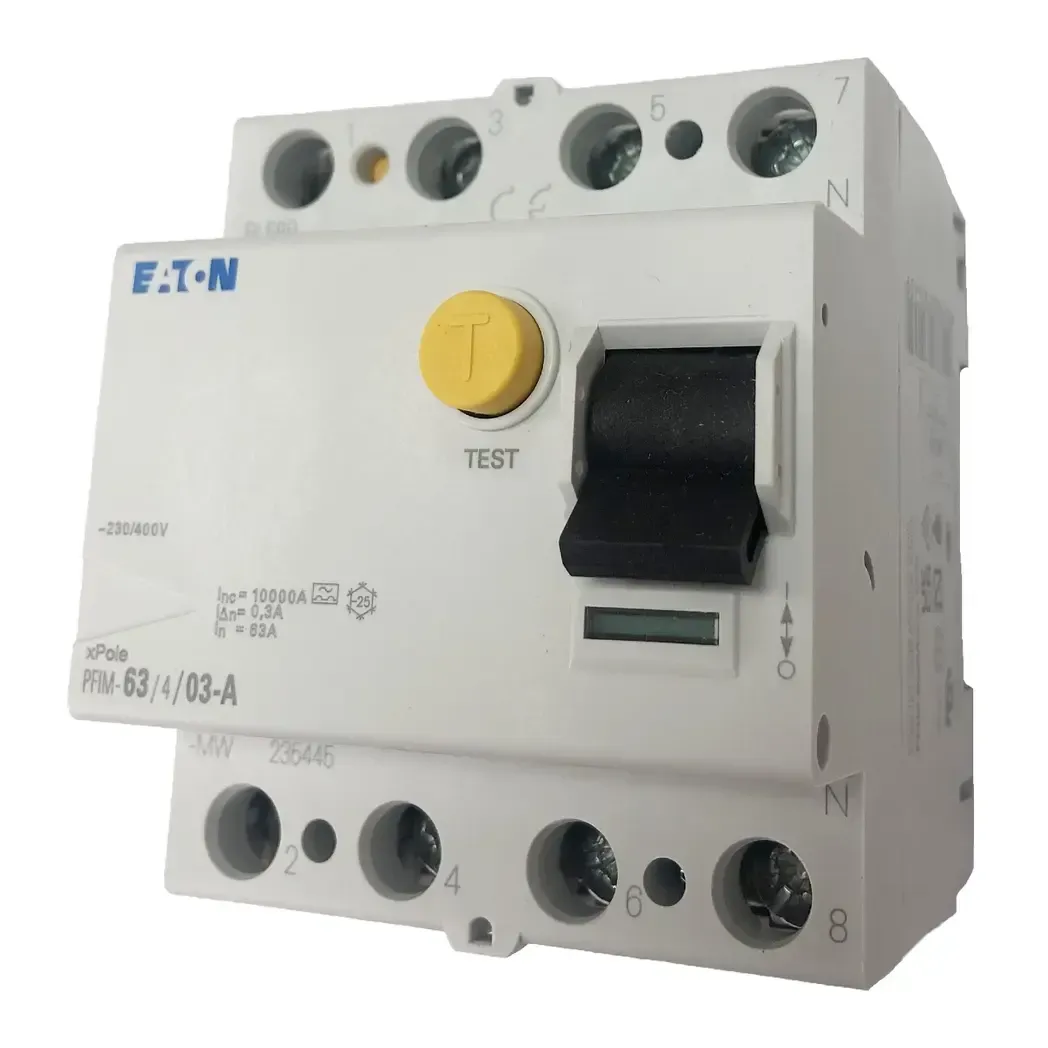

235445 - Eaton ELCB 4P 63A 300MA 235445

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

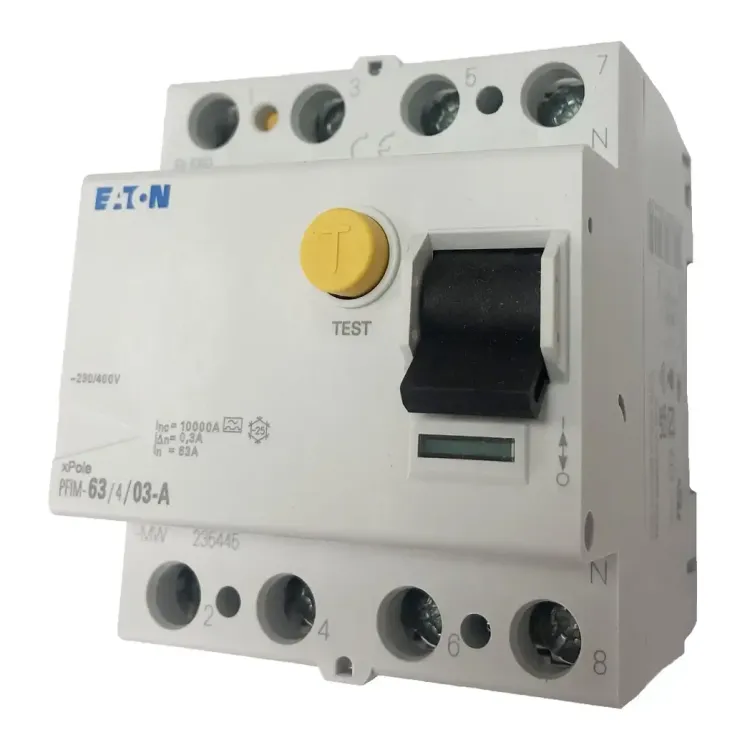

Eaton ELCB 4P 63A 300MA 235445

Eaton Moeller series xPole - PFIM Type AC A U R RCCB. Residual current circuit breaker (RCCB) 63A 4p 300mA type A MW for residential and commercial applications. Suitable for connecting solid-core conductors of 1.5mm - 35mm. Features include pulse-current sensitivity, IP20 protection, and a built-in width of 70mm.

Stock Code 235445
Few in stock
Price 113.86 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Ean

    4015082354459

  • Sku

    235445

  • Model Code

    PFIM-63/4/03-A-MW

  • Designed For

    Residential and commercial applications

  • Tripping Time

    Non-delayed

  • Voltage Rating

    230 V AC / 400 V AC

  • Amperage Rating

    63 A

  • Number of Poles

    Four-pole

  • Frequency Rating

    50 Hz

  • Lifespan Electrical

    4000 operations

  • Lifespan Mechanical

    20000 operations

  • Degree of Protection

    IP20

  • Fault Current Rating

    300 mA

  • Rated Operational Current

    63 A

  • Ambient Operating Temperature

    -25 to 60 C

Brand

Eaton
