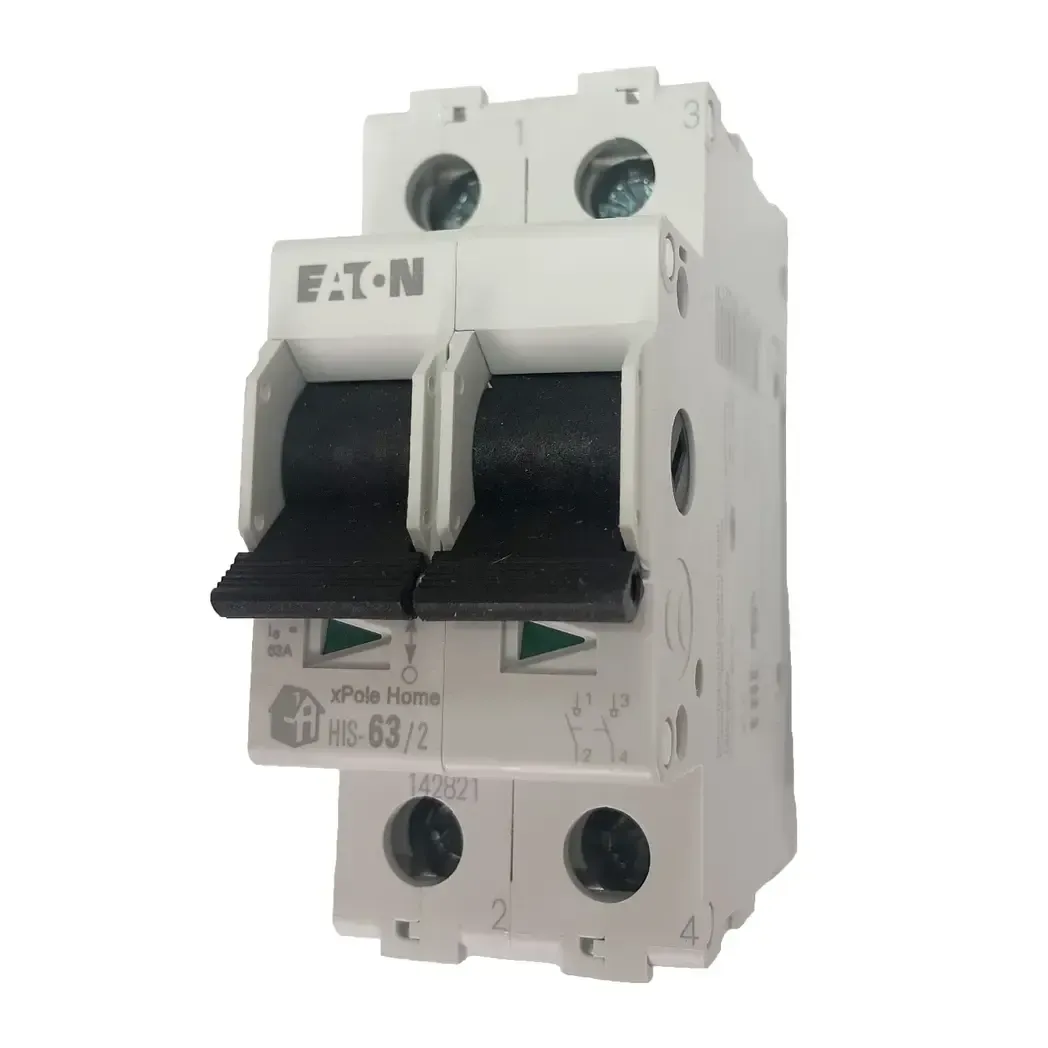

Eaton Isolator 2P 63A 142821
Main switch 63A 2P 2 Pole Up to 63 Amps. Eaton Isolator 2 Pole 63 Amp is a durable and reliable product designed for use in Eaton Distribution parts. With a compact size of 80x76x35mm, this isolator offers a rated operational voltage of up to 240V and a short-time withstand current of 2 kA. It is RoHS compliant and has an IP20 degree of protection.
Stock Code:
142821
Online:
Out of stock
Price 18.27 £
incl. VAT, 20%
priced individually
Product Features
| SKU | 142821 |
|---|---|
| Lamp Type | Other |
| Compliances | RoHS conform |
| Lamp Socket | Other |
| Voltage Type | AC |
| Product Width | 35 mm |
| Built-in Depth | 69.5 mm |
| Product Height | 76 mm |
| Product Weight | 0.201 kg |
| Amperage Rating | 63 A |
| Number of Poles | Two-pole |
| Voltage Rating Min | 240 V |
| Product Switch Type | Off switch |
| Degree Of Protection | IP20 |
| Product Length/Depth | 80 mm |
| Rated Switching Capacity | 0 kA |
| Rated Operational Voltage (UE) Max | 240 V |
| Width in Number of Modular Spacings | 2 |
| Rated Short-Time Withstand Current (ICW) | 2 kA |
| Number of Contacts (Change-Over Contacts) | 0 |
| Number of Contacts (Normally Open Contacts) | 0 |
| Number of Contacts (Normally Closed Contacts) | 0 |
