276280 - Eaton Isolator 3P 80A 276280

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

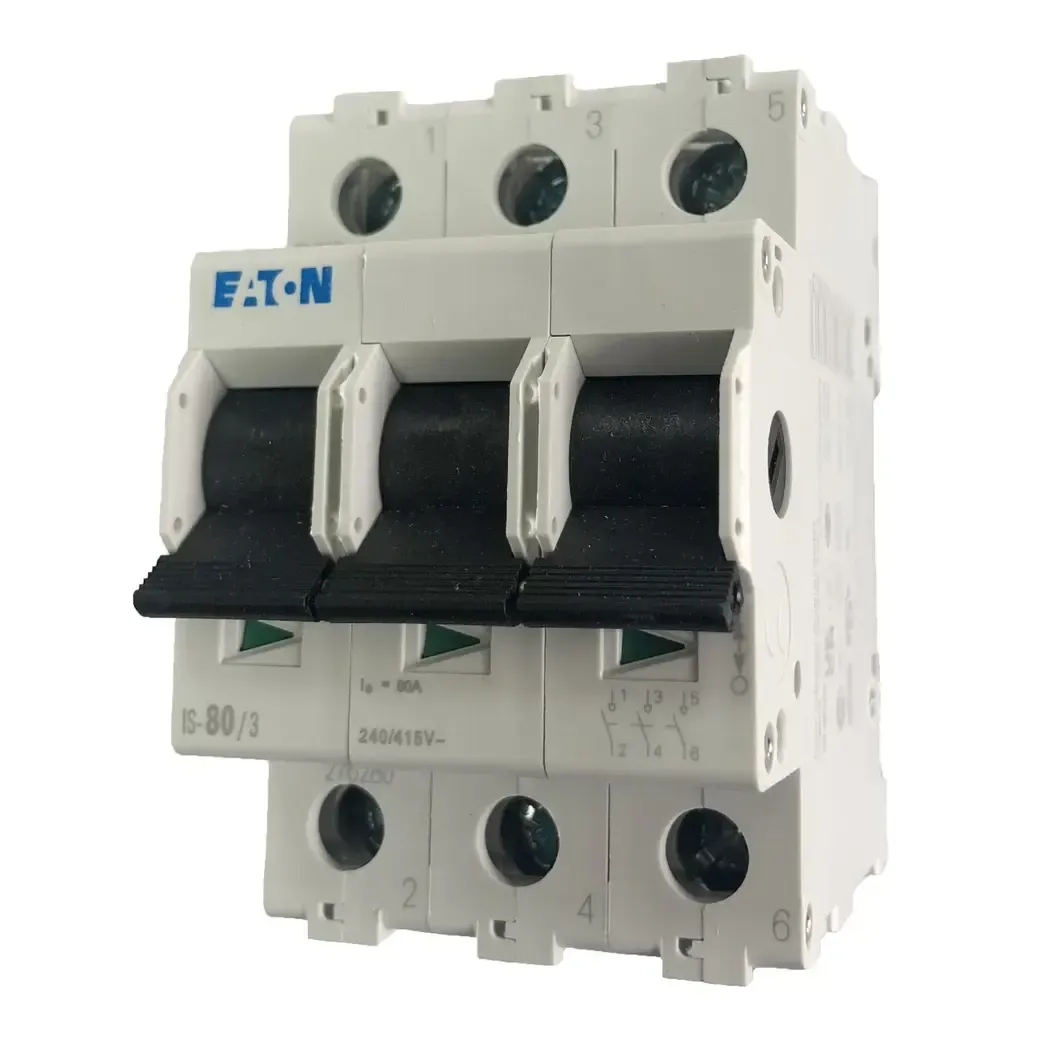

Eaton Isolator 3P 80A

The Eaton Moeller IS Disconnector is a triple pole 80 Amps main switch, suitable for 240 V systems. It has a compact size of 80x76x52.5mm, making it ideal for various electrical applications.

Stock Code: 276280
Out of stock

Product Features

  • EAN

    4015082762803

  • SKU

    276280

  • Lamp Type

    Other

  • Model Code

    IS-80/3

  • Compliances

    Contact Manufacturer for details

  • Lamp Socket

    Other

  • Product Name

    Eaton Moeller Series IS Disconnector

  • Voltage Type

    AC

  • Product Width

    52.5 mm

  • Built-in Depth

    69.5 mm

  • Certifications

    Contact Manufacturer for details

  • Product Height

    76 mm

  • Product Weight

    0.314 kg

  • Amperage Rating

    80 A

  • Number of Poles

    Three-pole

  • Voltage Rating Min

    240 V

  • Product Switch Type

    Other

  • Degree of Protection

    IP40

  • Product Length/Depth

    80 mm

  • Rated Switching Capacity

    12.5 kA

  • Rated Operational Voltage (UE) Max

    415 V

  • Width in Number of Modular Spacings

    3

  • Rated Short-Time Withstand Current (ICW)

    2 kA

  • Number of Contacts (Change-Over Contacts)

    0

  • Number of Contacts (Normally Open Contacts)

    0

  • Number of Contacts (Normally Closed Contacts)

    0

Brand

Eaton
