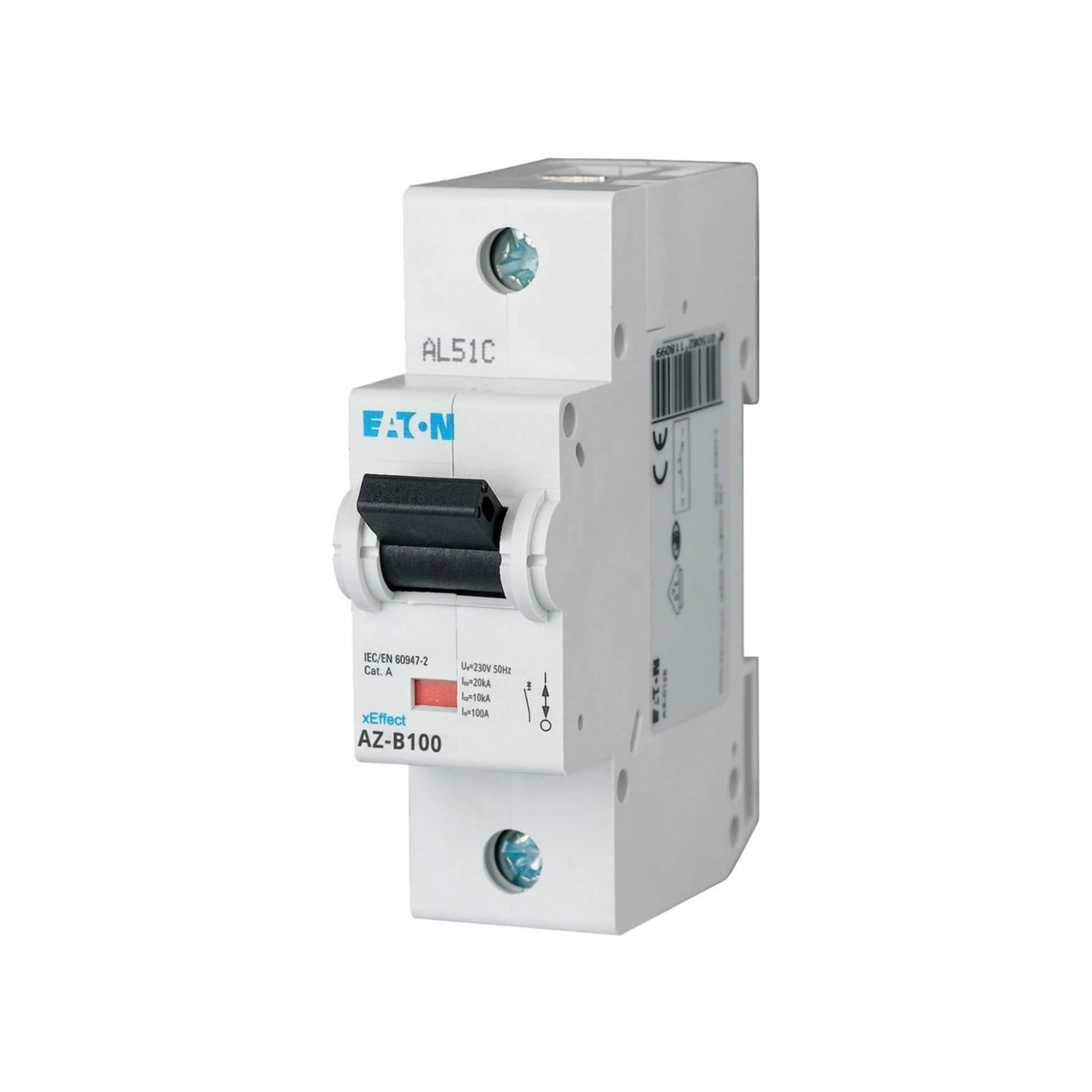

Eaton MCB 100A Type B 20kA 1P AZ-B100

Photo is representative

Eaton MCB 100A Type B 20kA 1P AZ-B100

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 174487
GTIN 4015081709434
Stock status: In stock

priced individually

More arriving soon

Net price: £40.94

Gross price

£49.12

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Eaton’s Moeller xEffect AZ series. Rated 100A Type B, designed for industrial and advanced commercial switchgear.

Rated switching capacity is 20kA to IEC/EN 60947-2. Note: Icn at 230V and 400V is 6kA under IEC/EN 60898-1. Terminals accept 2.5–50mm² solid or multi-wire conductors.

  • 100A Type B, 1P
  • 20kA switching capacity (IEC/EN 60947-2)
  • 400V AC max operational voltage
  • Cable range: 2.5–50mm²
  • Operating temp: -25°C to +55°C
Specifications

Poles

1P

Current Rating

100 A

Tripping Curve

Type B

Rated Switching Capacity (IEC/EN 60947-2)

20 kA

Icn at 230V (IEC/EN 60898-1)

6 kA

Icn at 400V (IEC/EN 60898-1)

6 kA

Current Limiting Class

3

Rated Operational Voltage (Ue)

400 V AC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4 kV

Overvoltage Category

III

Frequency

50/60 Hz

IP Rating

IP20

Terminal Cable Range

2.5–50 mm²

Operating Temperature

-25 °C to +55 °C

Pollution Degree

2

Dimensions (W x H x D)

27 x 90 x 75 mm

Weight

0.23 kg

Documents

datasheet Eaton 174487 Datasheet
