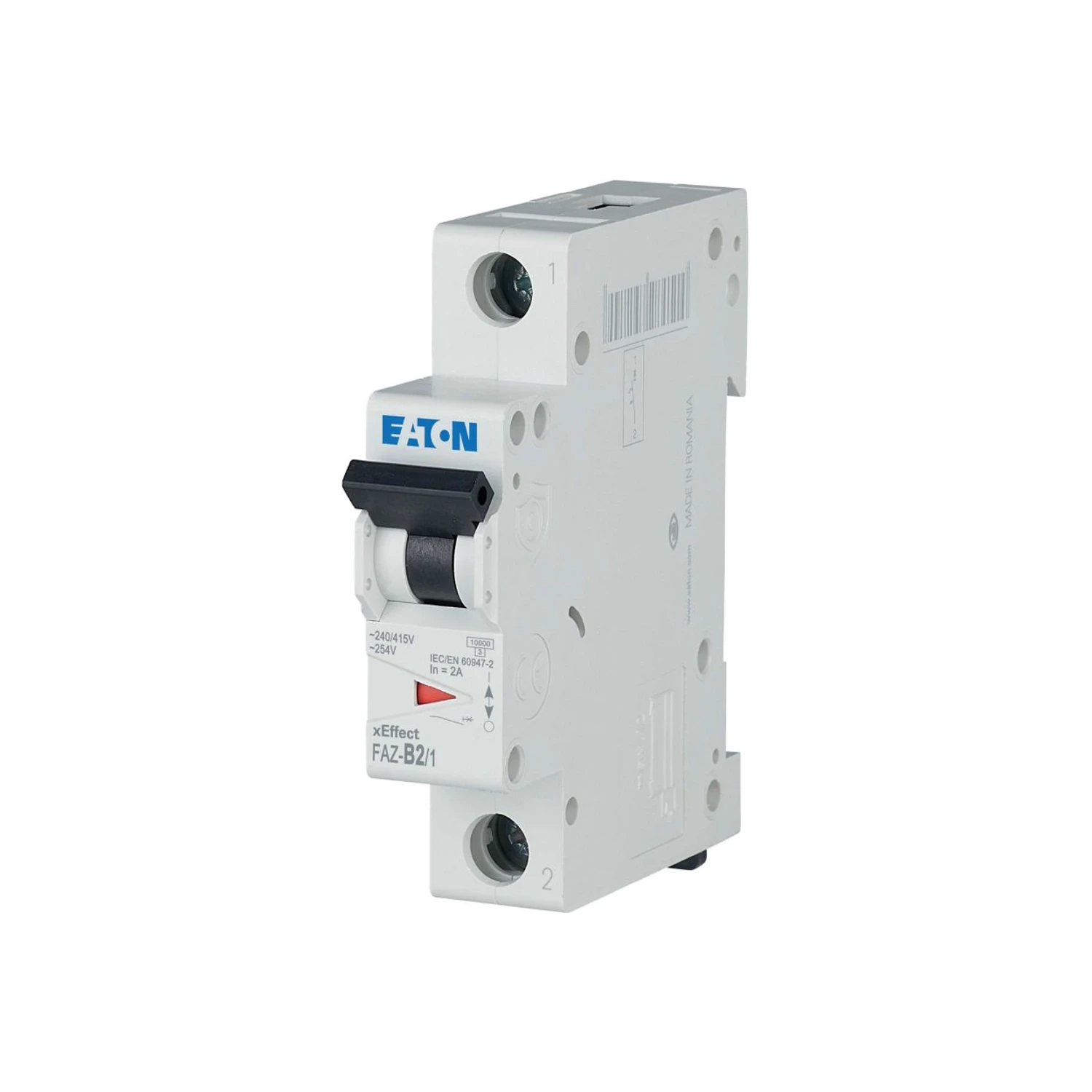

Eaton MCB 2A Type B 15kA 1P FAZ xEffect

Photo is representative

Eaton MCB 2A Type B 15kA 1P FAZ xEffect

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 278523
GTIN 4015082785239
Stock status: In stock

priced individually

More arriving soon

Net price: £20.98

Gross price

£25.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Eaton’s FAZ xEffect range. Designed for branch circuit protection in industrial and commercial switchgear — not for use as a BCPD.

Class 3 current-limiting with dual standard compliance: 10kA Icn under IEC/EN 60898-1 and 15kA Icu under IEC 60947-2 at both 230V and 400V AC.

  • 2A, Type B curve, 1P
  • Icu 15kA at 230/400V AC (IEC 60947-2)
  • Icn 10kA at 230/400V AC (IEC/EN 60898-1)
  • Terminal cable range: 1–25mm² solid or multi-strand
  • Operating temp: -25°C to +75°C
Specifications

Poles

1P

Rated Current (In)

2 A

Curve Type

Type B

Voltage Rating

240V AC / 415V AC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4 kV

Icn at 230V (IEC/EN 60898-1)

10 kA

Icn at 400V (IEC/EN 60898-1)

10 kA

Icu at 230V (IEC 60947-2)

15 kA

Icu at 400V (IEC 60947-2)

15 kA

Ics (IEC/EN 60898-1 & IEC 60947-2)

7.5 kA

Current Limiting Class

3

Frequency

50/60 Hz

IP Rating

IP20

Overvoltage Category

III

Pollution Degree

2

Terminal Cable Range

1–25 mm² (solid and multi-strand)

Operating Temperature

-25 °C to +75 °C

Module Width

1 module (17.7 mm)

Dimensions (H x W x D)

75.5 x 17.7 x 80 mm

Weight

0.113 kg

Standards

IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

Certifications

CE, UL recognized, CSA certified, RoHS
