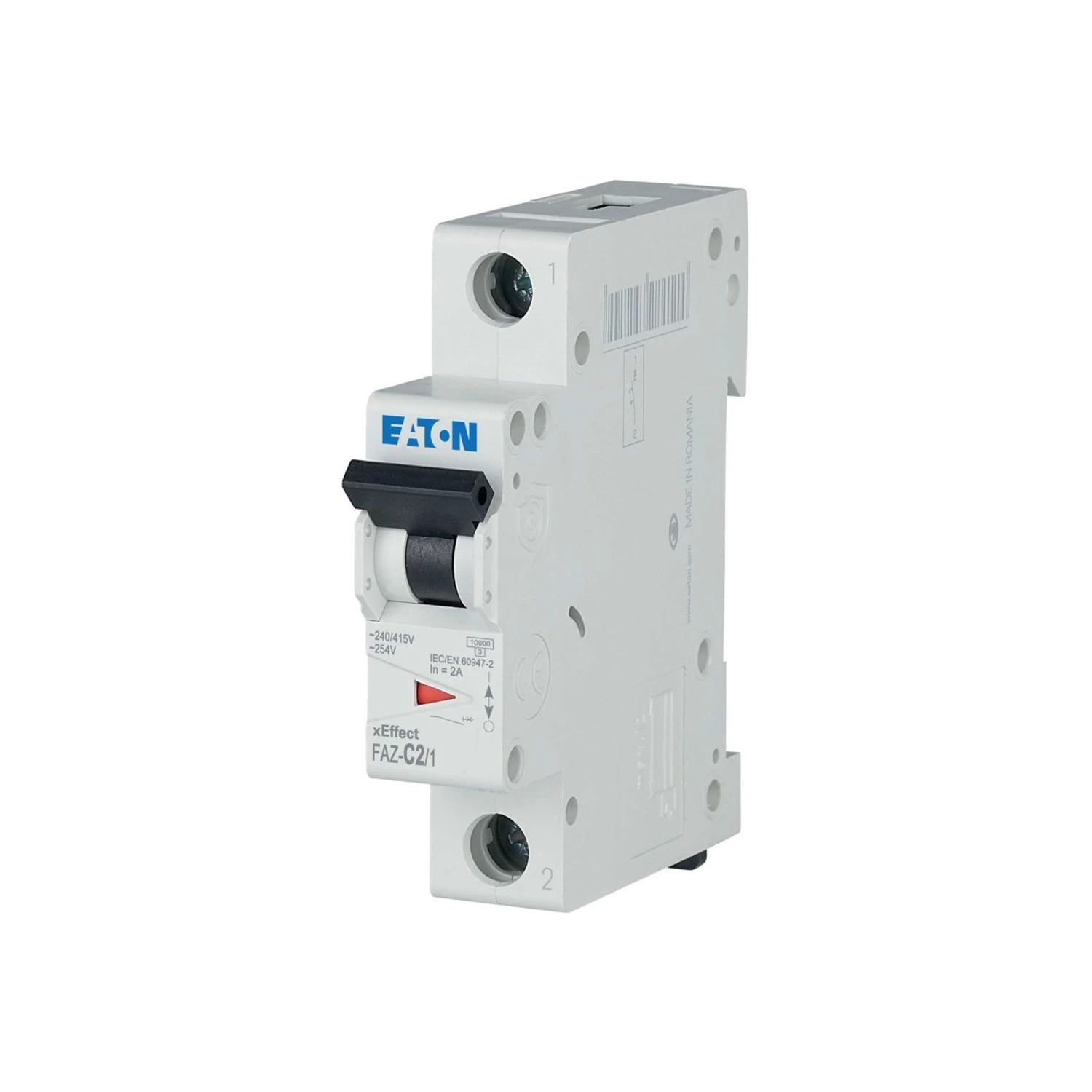

Eaton MCB 2A Type C 15kA 1P FAZ-C2/1

Photo is representative

Eaton MCB 2A Type C 15kA 1P FAZ-C2/1

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 278549
GTIN 4015082785499
Stock status: In stock

priced individually

More arriving soon

Net price: £20.98

Gross price

£25.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from the Eaton Moeller xEffect FAZ range. Rated 2A with a Type C tripping characteristic. Built for branch circuits in industrial and advanced commercial switchgear assemblies.

Rated 15kA Icu at 230/400V AC under IEC 60947-2 — not a domestic MCB. Certified to IEC/EN 60947-2 and IEC/EN 60898-1, CE marked, UL recognised and CSA certified.

  • Icn: 10kA at 230/400V (IEC/EN 60898-1)
  • Icu: 15kA at 230/400V (IEC/EN 60947-2)
  • Ics: 7.5kA
  • Terminal capacity: up to 25mm² single-core or multi-wire
  • Operating temp: -25°C to +75°C
Specifications

Poles

1P

Current Rating (In)

2 A

Tripping Curve

Type C

Voltage Rating (AC)

240V AC / 415V AC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4 kV

Icn at 230/400V (IEC/EN 60898-1)

10 kA

Icu at 230/400V (IEC/EN 60947-2)

15 kA

Ics (IEC/EN 60947-2)

7.5 kA

Current Limiting Class

3

Frequency

50/60 Hz

Mounting

DIN rail IEC/EN 60715

Module Width

17.5 mm (1 module)

Terminal Capacity

1–25 mm² solid or multi-wire

IP Rating

IP20

Operating Temperature

-25°C to +75°C

Standards

IEC/EN 60947-2, IEC/EN 60898-1, CE, UL 1077, CSA-C22.2 No. 235

Documents

datasheet Eaton 278549 Datasheet
