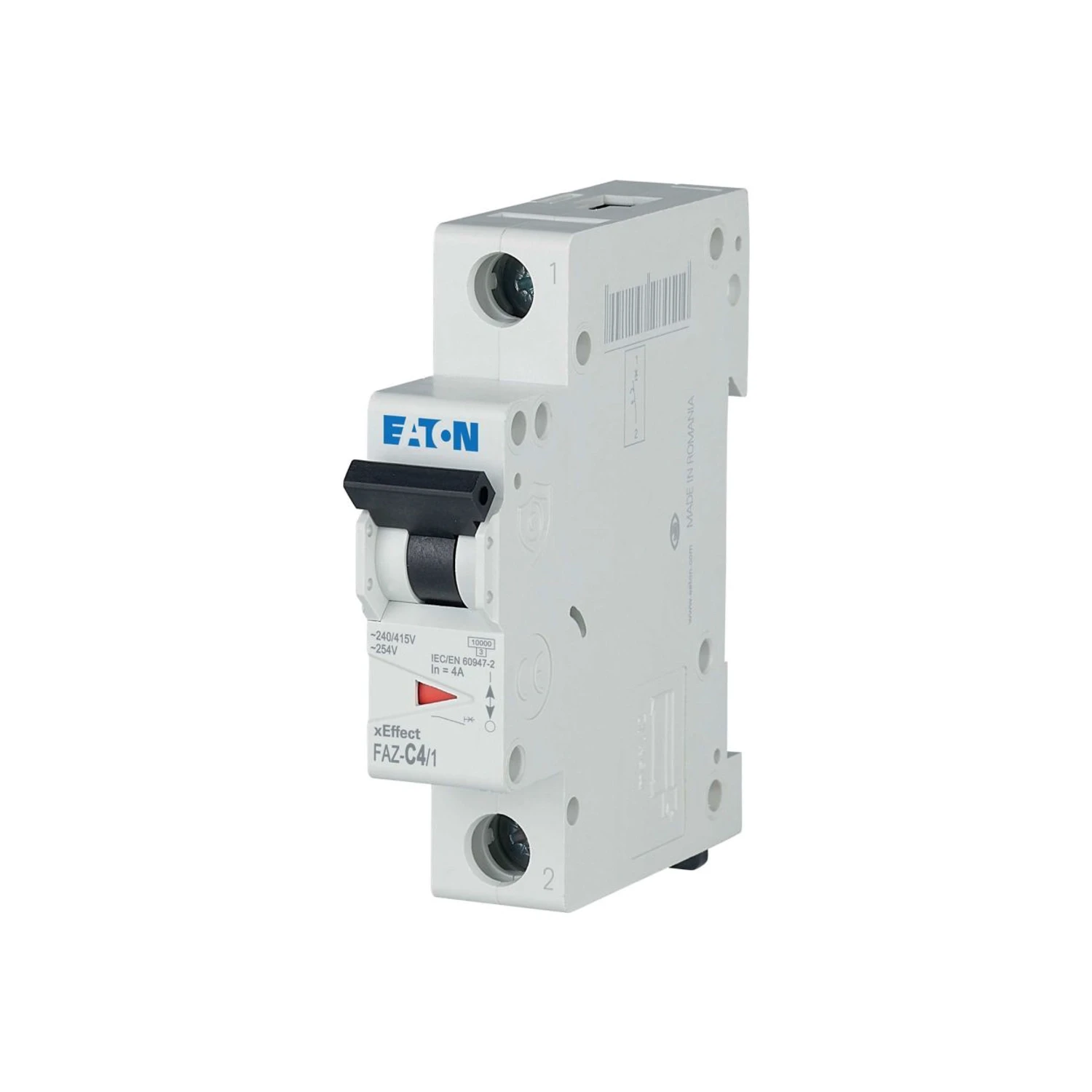

Eaton MCB 4A Type C 15kA 1P FAZ-C4/1
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
278553
GTIN
4015082785536
Stock status:
In stock
priced individually
More arriving soon
Net price: £20.98
Gross price
£25.17
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Single-pole MCB from Eaton’s FAZ xEffect range. Rated to IEC/EN 60947-2 for industrial and advanced commercial switchgear — not for use as a BCPD.
Type C characteristic with a 15kA Icu breaking capacity makes this suitable for higher fault level boards where standard 6kA or 10kA devices won’t cut it. Current limiting class 3, selectivity class 3.
- In: 4A, Type C
- Icu: 15kA at 230V and 400V (IEC/EN 60947-2)
- Icn: 10kA at 230V (IEC/EN 60898-1)
- Voltage: 240V AC / 415V AC
- Terminal capacity: up to 25mm² (single), 10mm² (twin)
- Operating temp: -25°C to +75°C
- Mounting: DIN rail, 1 module (17.5mm wide)
