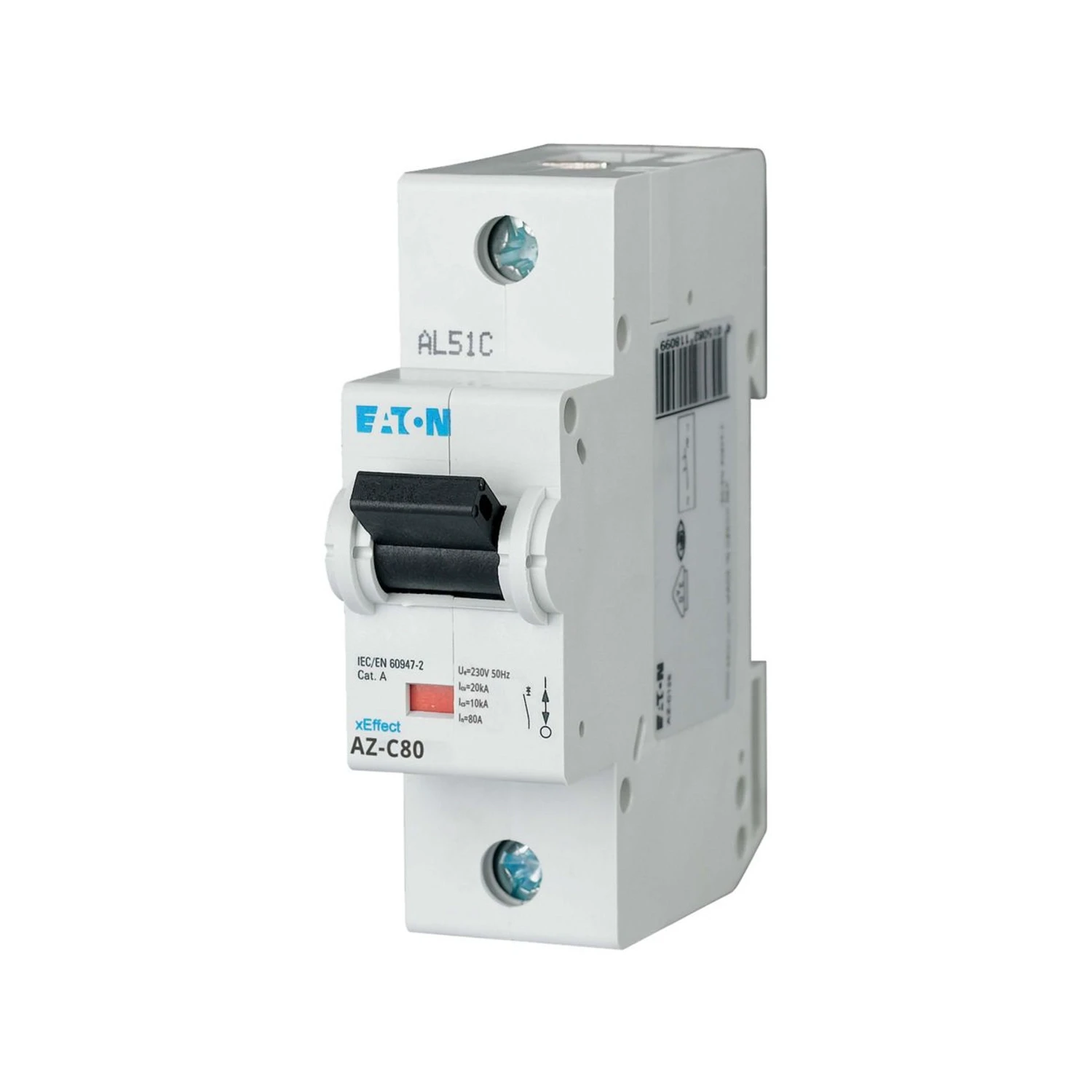

Eaton MCB 80A Type C 20kA 1P AZ xEffect

Photo is representative

Eaton MCB 80A Type C 20kA 1P AZ xEffect

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 211799
GTIN 4015082117993
Stock status: In stock

priced individually

More arriving soon

Net price: £44.09

Gross price

£52.91

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB from Eaton’s Moeller xEffect AZ range. Built for industrial and advanced commercial switchgear — not a domestic-grade device. Rated to IEC/EN 60947-2 with a 20kA Icu at both 230V and 400V AC.

Class 3 current limiting and C-curve tripping. Lift terminals accept 2.5–50 mm² solid or stranded. Mounts on top-hat DIN rail per IEC/EN 60715 at 27 mm wide (1.5 modules).

  • In: 80A, Type C curve
  • Icu: 20kA at 230V / 400V AC
  • Terminals: 2.5–50 mm²
  • Operating temp: -25°C to +55°C
  • IP40 when fitted
Specifications

Rated Current (In)

80 A

Tripping Characteristic

C

Poles

1P

Icu at 230V AC

20 kA

Icu at 400V AC

20 kA

Current Limiting Class

3

Rated Operational Voltage (AC)

230V / 400V AC

Voltage Rating (DC per pole)

60V DC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4 kV

Frequency

50–60 Hz

Terminal Capacity

2.5–50 mm²

Terminal Type

Lift terminals

Mounting

Top-hat rail IEC/EN 60715

Module Width

27 mm (1.5 modules)

Operating Temperature

-25°C to +55°C

Degree of Protection

IP40 fitted / IP20

Electrical Lifespan

10000 operations

Weight

0.224 kg

Standard

IEC/EN 60947-2

Documents

datasheet Eaton 211799 Datasheet
