195135 - Eaton RCBO 1P+N 25A 6KA 30mA B Curve Type A xPole

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

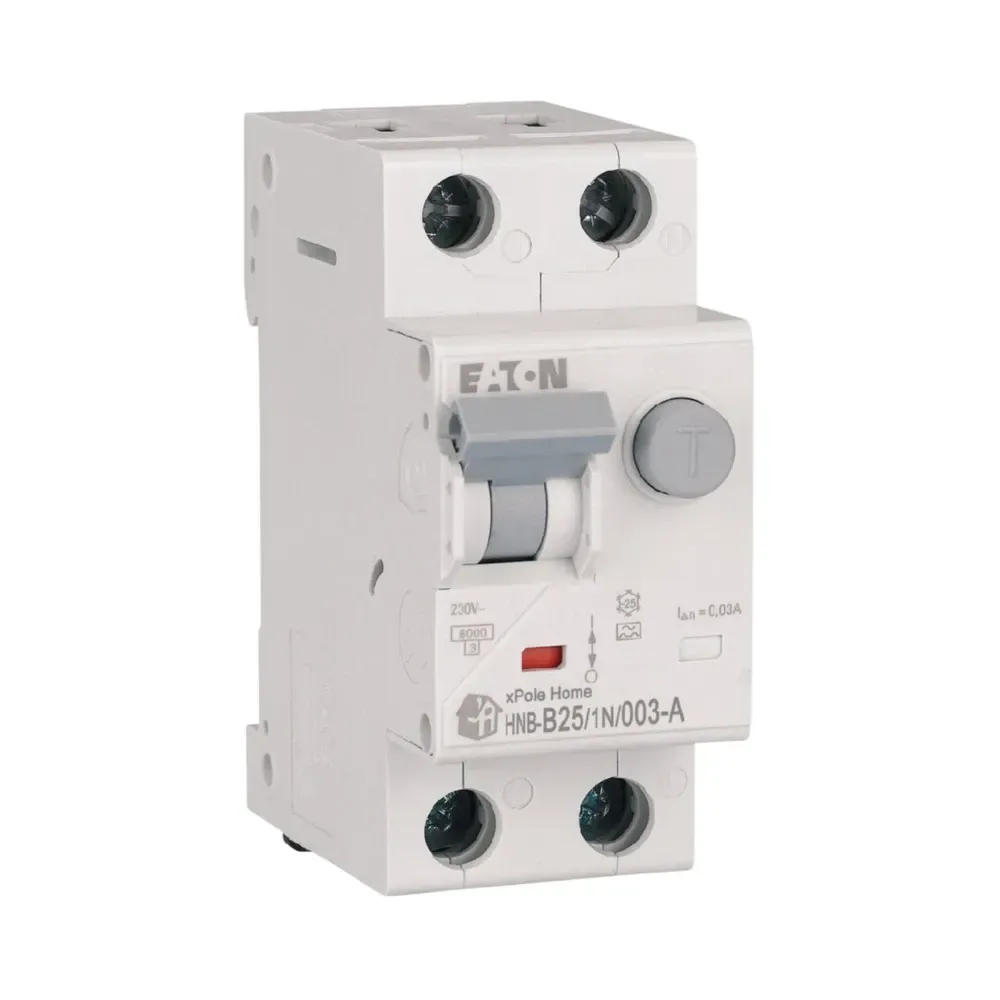

Eaton RCBO 1P+N 25A 6KA 30mA B Curve Type A xPole

The Eaton Moeller series xPole - HNB RCBO is a residual-current circuit breaker with over-current protection. This RCD/MCB has a rating of 25A, 1p+N, and 30mA, suitable for single pole+neutral setups up to 25 Amps. It has compact dimensions of 80x73x35mm.

Stock Code: 195135
In stock
Price 35.58 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Sku

    195135

  • Model Code

    HNB-B25/1N/003-A

  • Compliances

    CE Marked, RoHS conform

  • Voltage Type

    AC

  • Rated Current

    25 A

  • Certifications

    CE

  • Voltage Rating

    230 V

  • Amperage Rating

    25 A

  • Degree of Protection

    IP20

  • Release Characteristic

    B

  • Number Of Poles (Protected)

    1

  • Operating Ambient Temperature Max

    40 C

  • Operating Ambient Temperature Min

    -25 C

  • Rated Short-Circuit Breaking Capacity

    6 kA

Brand

Eaton
