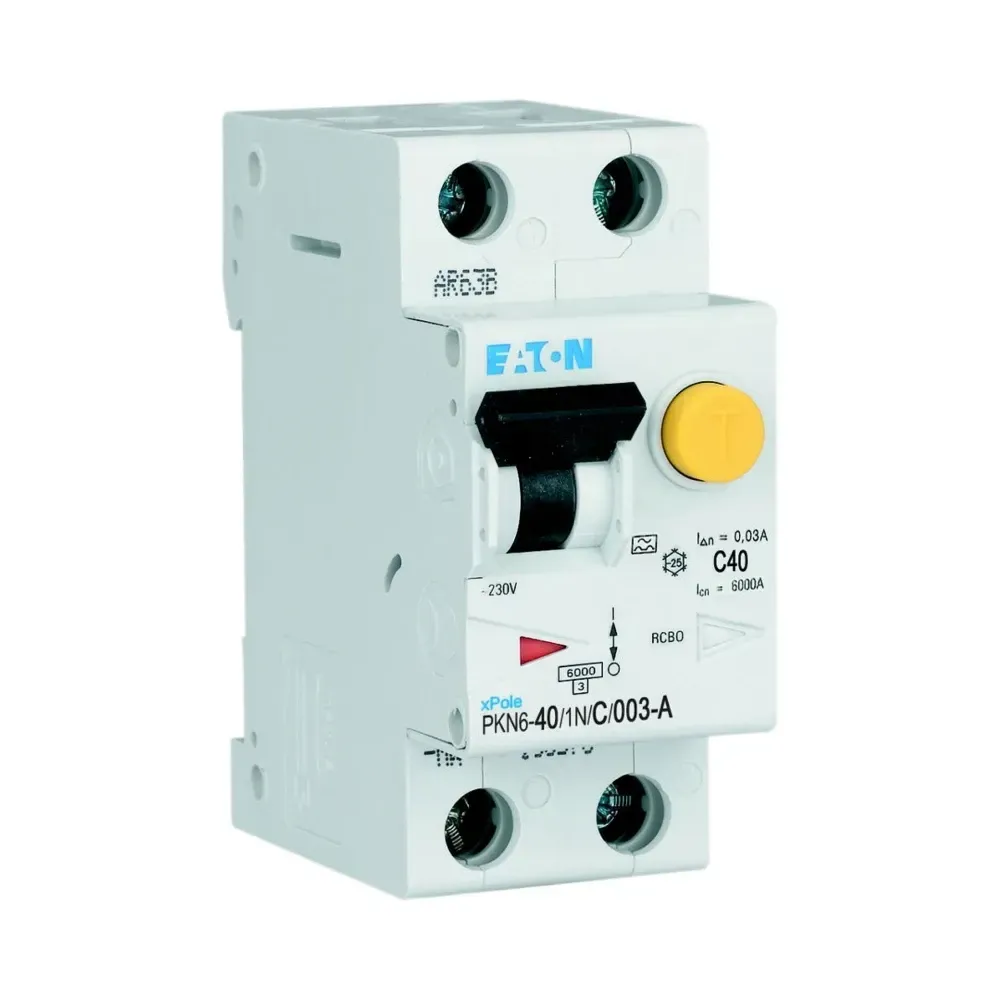

Eaton Rcbo 40A 30mA C Curve 236766
The Eaton Moeller series xPole - PKN6/M RCBO is a residual-current circuit breaker with overcurrent protection. It features a 40A 30mA MCB trip curve C 1pole+N RCCB. Suitable for up to 40 amps, the dimensions are 80x73x35mm.
Stock Code
Available
£38.78
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Ambient Operating Temperature
Min: -25°C, Max: 40°C
-
Application
Switchgear for residential and commercial applications
-
Catalog Number
236766
-
Clearances and Creepage Distances
Meets the product standard's requirements
-
Current Limiting Class
3
-
Degree of Protection
IP20
-
EAN
4015082367664
-
Electromagnetic Compatibility
Is the panel builder's responsibility
-
Features
Concurrently switching N-neutral, Connectable Conductor Cross Section (Solid-Core) Min: 1 mm
-
Impulse Withstand Voltage
Is the panel builder's responsibility
-
Leakage Current Type
A
-
Model Code
PKN6-40/1N/C/003-A-MW
-
Number of Poles
Single-pole + N
-
Overvoltage Category
III
-
Pollution Degree
2
-
Product Name
Eaton Moeller Series xPole - PKN6/M RCBO - Residual-Current Circuit Breaker
-
Product Range
PKN6
-
Rated Current
40 A
-
Rated Impulse Withstand Voltage (UIMP)
4 kV
-
Rated Operational Current
40 A
-
Rated Switching Capacity
6 kA
-
SKU
236766
-
Short-Circuit Rating
Is the panel builder's responsibility
-
Type
RCBO
-
Voltage Rating
230 V
-
Voltage Type
AC
-
Width in Number of Modular Spacings
2
