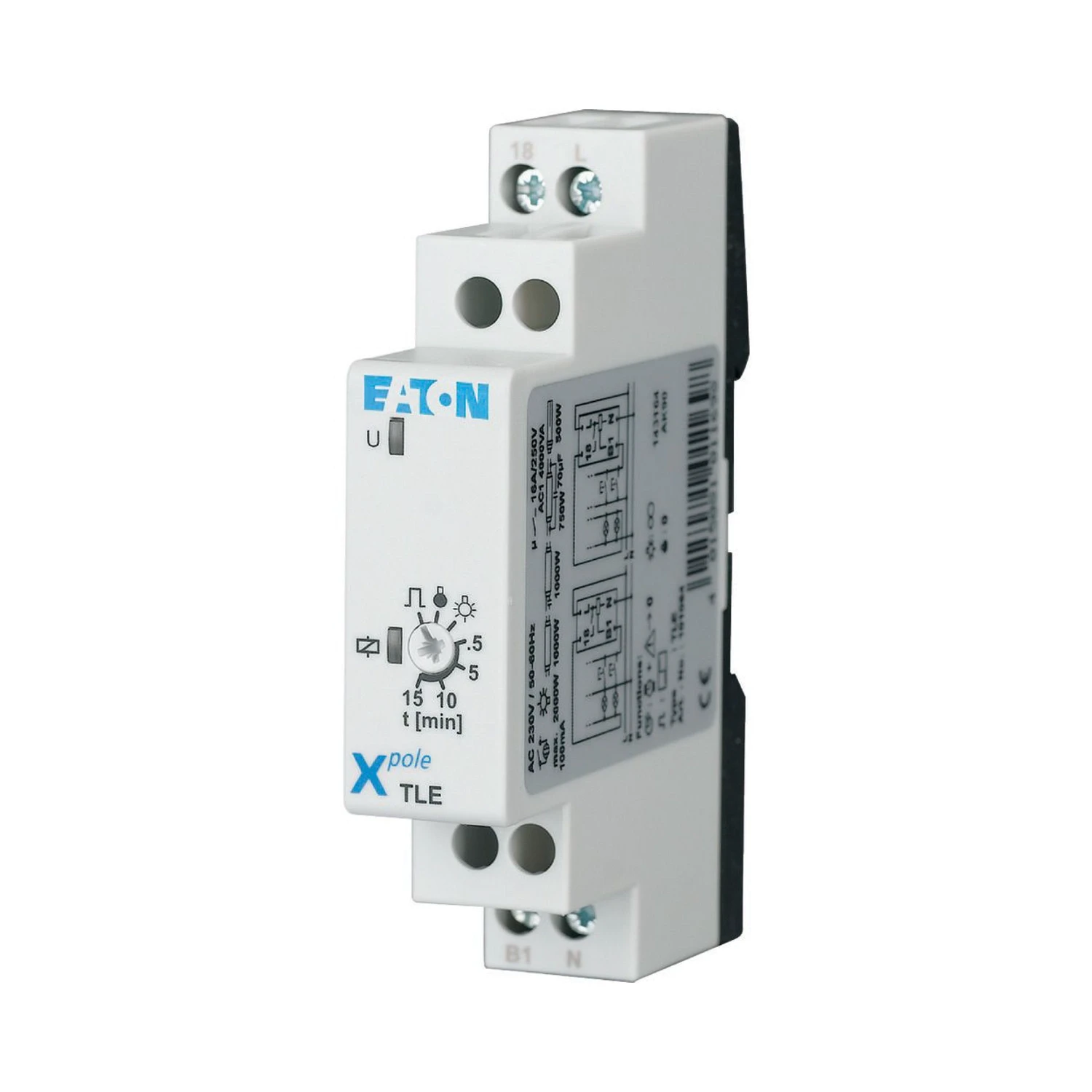

Eaton TLE Staircase Impulse Relay 230V AC 16A 1-20 Min DIN Rail 1M

Photo is representative

Eaton TLE Staircase Impulse Relay 230V AC 16A 1-20 Min DIN Rail 1M

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 101064
GTIN —
Stock status: 3 in stock

priced individually

Net price: £77.04

Gross price

£92.45

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

DIN rail timing relay for stairwell lighting control. Fits standard top-hat rail or front mounts in a distribution board at 1 module (17.5mm) wide.

Delay on de-energization function with adjustable time range. One normally open delayed output contact.

  • Supply: 230V AC 50⁄60 Hz (operating range 203–262V)
  • Contact rating: 16A nominal, 80A max starting current
  • Time range: 30 s – 720 s (1–20 min)
  • Dimensions: 17.5 × 87 × 65 mm
  • Operating temp: -25 °C to +55 °C
Specifications

Rated Supply Voltage

230V AC

Frequency

50/60 Hz

Operating Voltage Range

203–262V AC

Nominal Current

16 A

Max Starting Current

80 A

Function

Delay on de-energization

Time Range

30 s – 720 s

Output

1 × normally open delayed contact

Mounting

DIN rail (top-hat) or front mount

Width

1 module (17.5 mm)

Dimensions (W × H × D)

17.5 × 87 × 65 mm

Weight

0.061 kg

IP Rating

IP20

Operating Temperature

-25 °C to +55 °C

Documents

datasheet Eaton 101064 Datasheet
