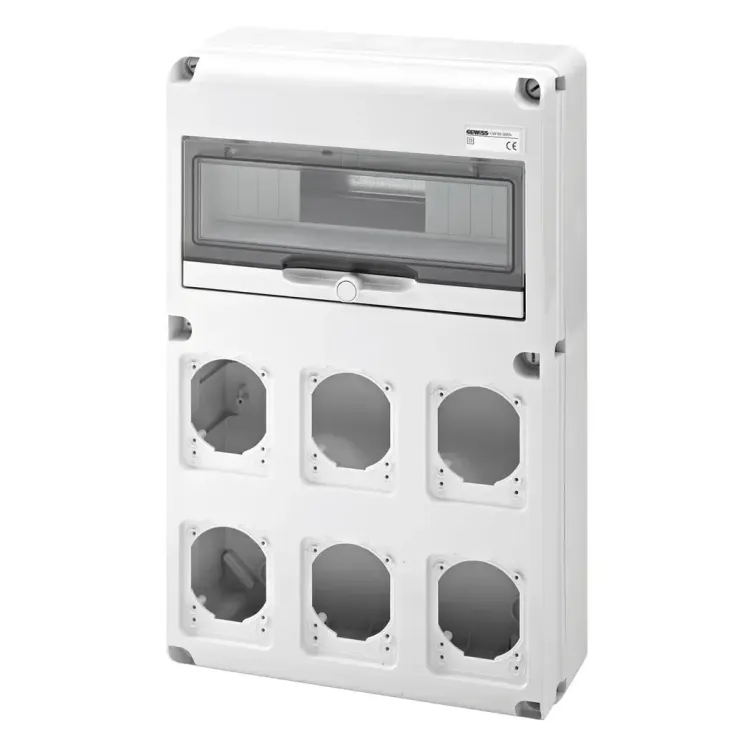

Photo is representative

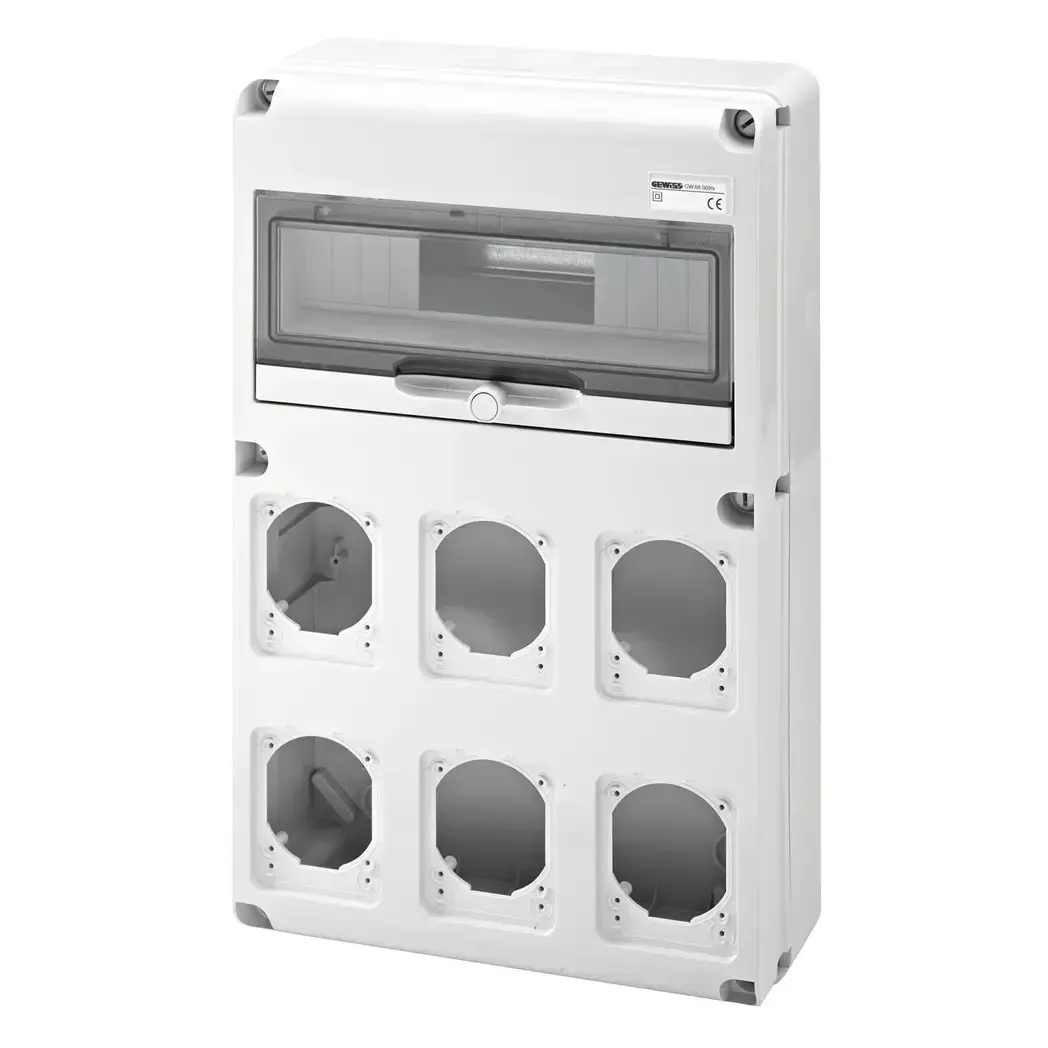

Gewiss Combi Unit 14 Module 6 Flange 16/32A IP65 GW68008N
The Gewiss Combi Unit is a 14 module system suitable for surface mounting in a grey RAL 7035 color. It is designed for distributing energy in the commercial sector, accommodating socket-outlets up to 63A. The unit is IP65 rated and can be combined with various accessories.
Online:
Product Features
SKU | GW68008N |
---|---|
Colour | Grey RAL 7035 |
Version | Empty |
IP Degree | IP65 |
Ware Number | 85381000 |
Glow Wire Test | 650 C |
Houseable Socket | 6 |
IEC 309 Amperage | 16/32A |
Insulation Class | II |
Installation Type | Surface-mounting |
Mechanical Resistance | IK08 |
Operating Temperature | -25 to +40 C |
Dispersible Power A (W) | 24 |
Dispersible Power B (W) | 64 |
No. of Modules EN 50022 | 14 |
Accordance with Standards | EN 62208 |
Thermo-pressure with Ball | 70 C |
