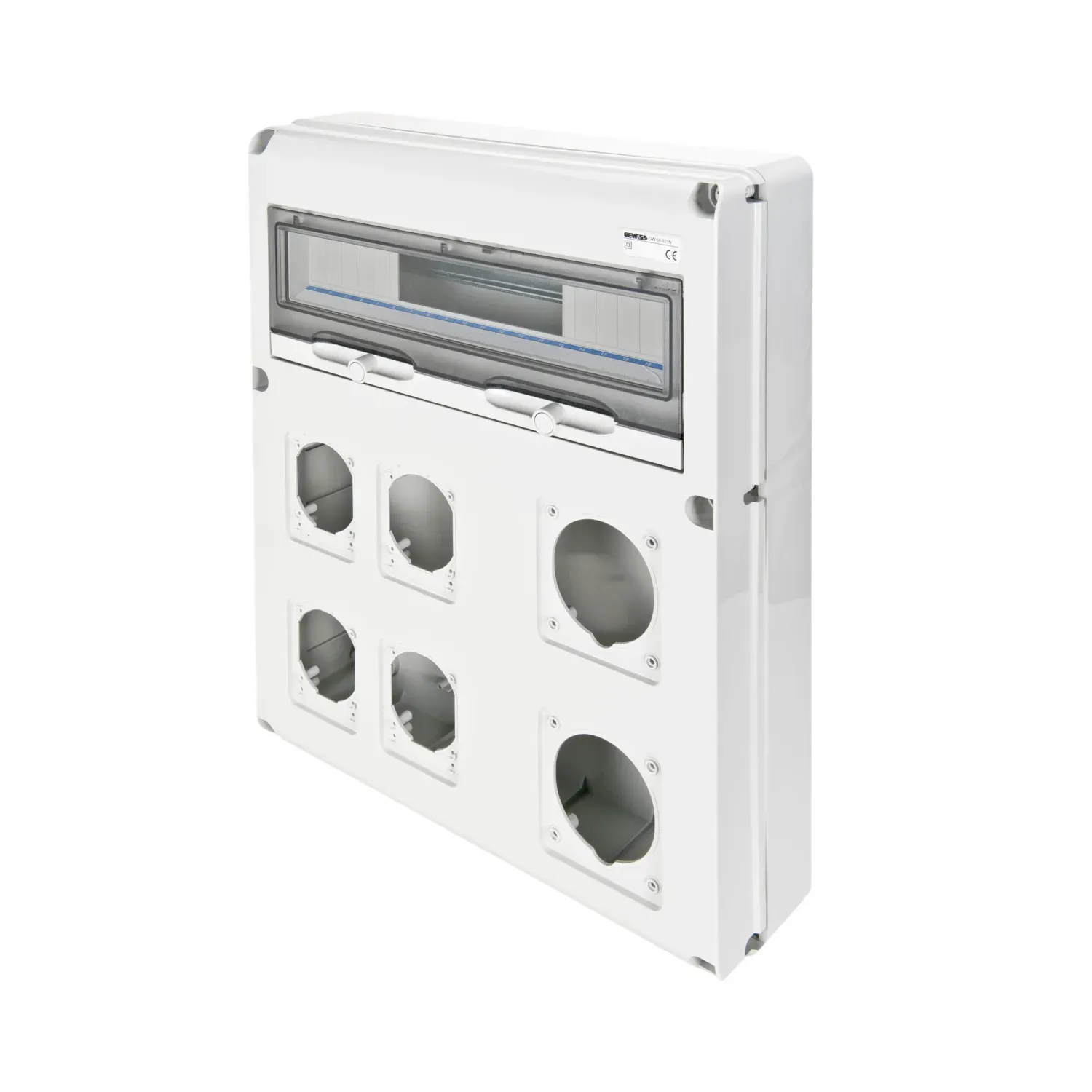

Gewiss GW68021N 20 Module IP65 Surface-Mounting Enclosure Grey RAL 7035

Photo is representative

Gewiss GW68021N 20 Module IP65 Surface-Mounting Enclosure Grey RAL 7035

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW68021N
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £155.84

Gross price

£187.00

Gewiss Q-DIN IP65 distribution board for energy distribution in commercial and building applications. Supplied empty, surface-mounting or pole-mounting configuration.

Key specs: - 20 DIN module capacity per EN 50022 - IP65 rated, UV resistant (EN 62208) - Houses 2x IEC 309 63A or 4x IEC 309 16/32A socket-outlets - Transparent door with ergonomic handle, hinged screws for easy access - IK08 mechanical resistance rating - Grey RAL 7035 polyester powder coat finish

Specifications

Product Code

GW68021N

DIN Modules

20

IP Rating

IP65

Colour

Grey RAL 7035

Installation Type

Surface-mounting

Socket Capacity

2x IEC 309 63A or 4x IEC 309 16/32A

Operating Temperature

-25 to +40°C

Insulation Class

II

Mechanical Resistance

IK08

Glow Wire Test

650°C

Thermo-pressure with Ball

70°C

Compliance Standards

EN 61439-3, EN 61439-4, EN 62208

Dimensions

560 x 450 x 120 mm

Version

Empty

Documents
