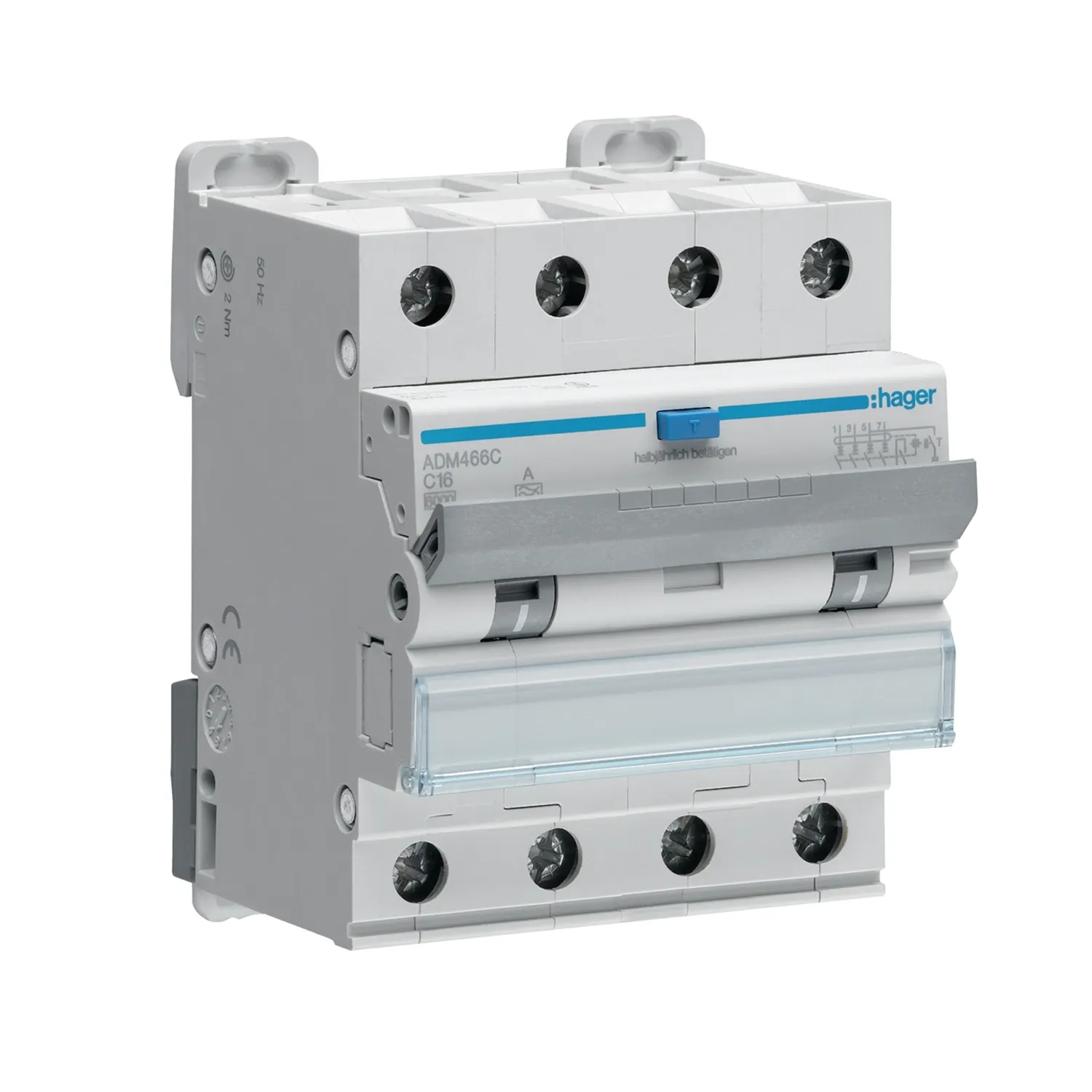

Hager RCBO 4P 16A 30mA C Curve Type A

Photo is representative

Hager RCBO 4P 6kA C-16A 30mA Type A 4 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM466C
GTIN 3250611020301
Stock status: 5 in stock

priced individually

Net price: £106.32

Gross price

£127.59

Hager 4-pole RCBO for three-phase circuits needing combined overload and earth fault protection. Straight DIN rail mount, takes up 4 modules in the board.

  • 6kA breaking capacity to IEC 60898-1
  • 30mA Type A residual current protection
  • 230-400V AC rated, 50Hz
  • IP20 enclosure rating
  • Operating range: -25°C to +40°C
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Trip Curve

C

Current Rating

16 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230–400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

4 modules

Power Loss

10.90 W

Overvoltage Category

III (IEC 60947-1)

Energy Limitation Class

I²t Class 3

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM466C Datasheet
