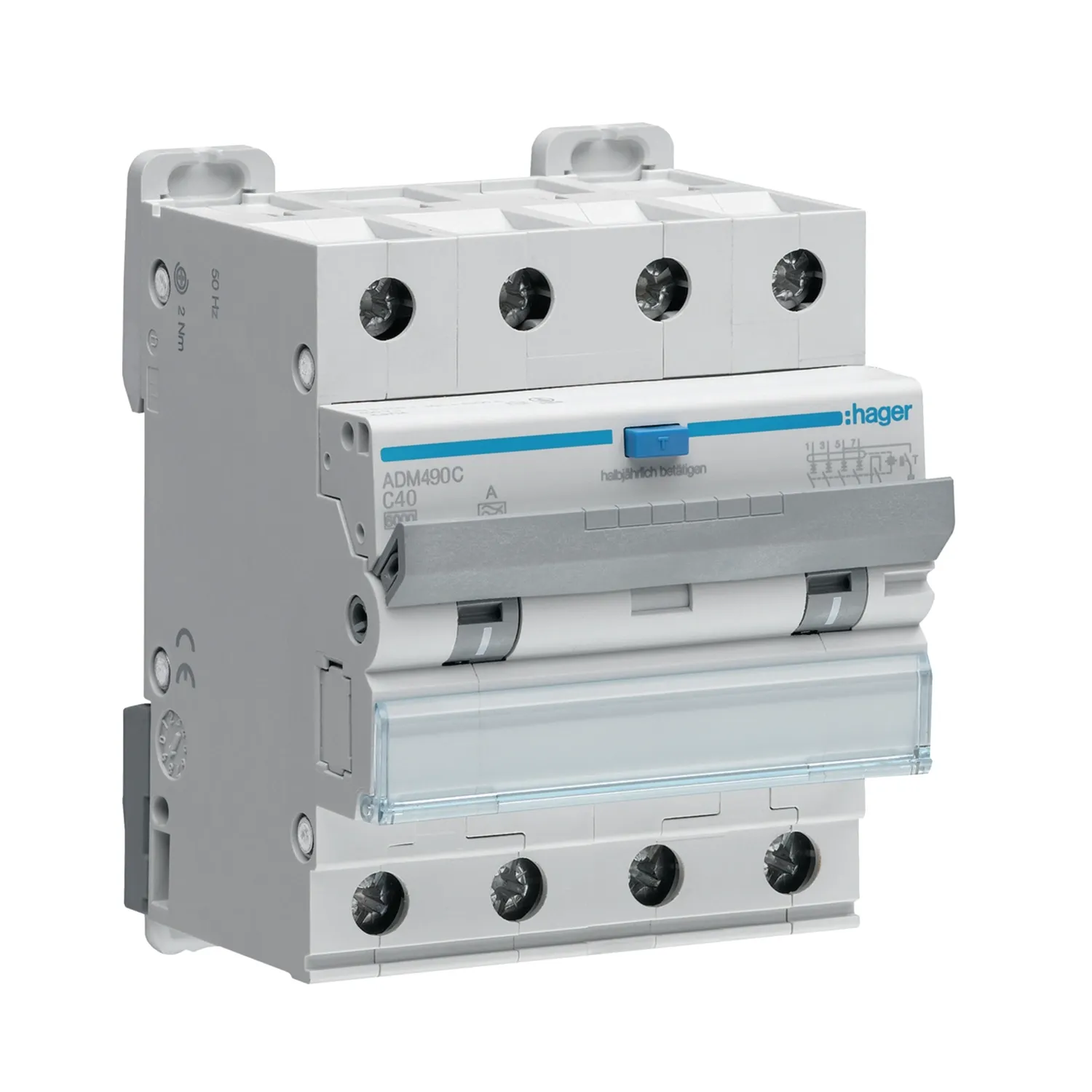

Hager RCBO 4P 40A 30mA C Curve Type A

Photo is representative

Hager 40A 4P RCBO C-curve 30mA Type A 4 Module 230-400V IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM490C
GTIN 3250611020349
Stock status: 4 in stock

priced individually

Net price: £106.32

Gross price

£127.59

Hager 4P RCBO with 40A C-curve and 30mA Type A protection. Four-pole RCBO for three-phase circuits with neutral protection. Clips onto DIN rail, takes up 4 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 230-400V AC rated voltage
  • IP20 enclosure rating
  • 360° mounting capability
  • Operating range: -25°C to +40°C
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Curve

C

Current Rating

40 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Rated Voltage

230-400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Modules

4

Power Loss

17.70 W

Overvoltage Category

III (IEC 60947-1)

Energy Limitation Class

I²t Class 3

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1-16 mm²

Rigid Conductor

1-25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM490C Datasheet
