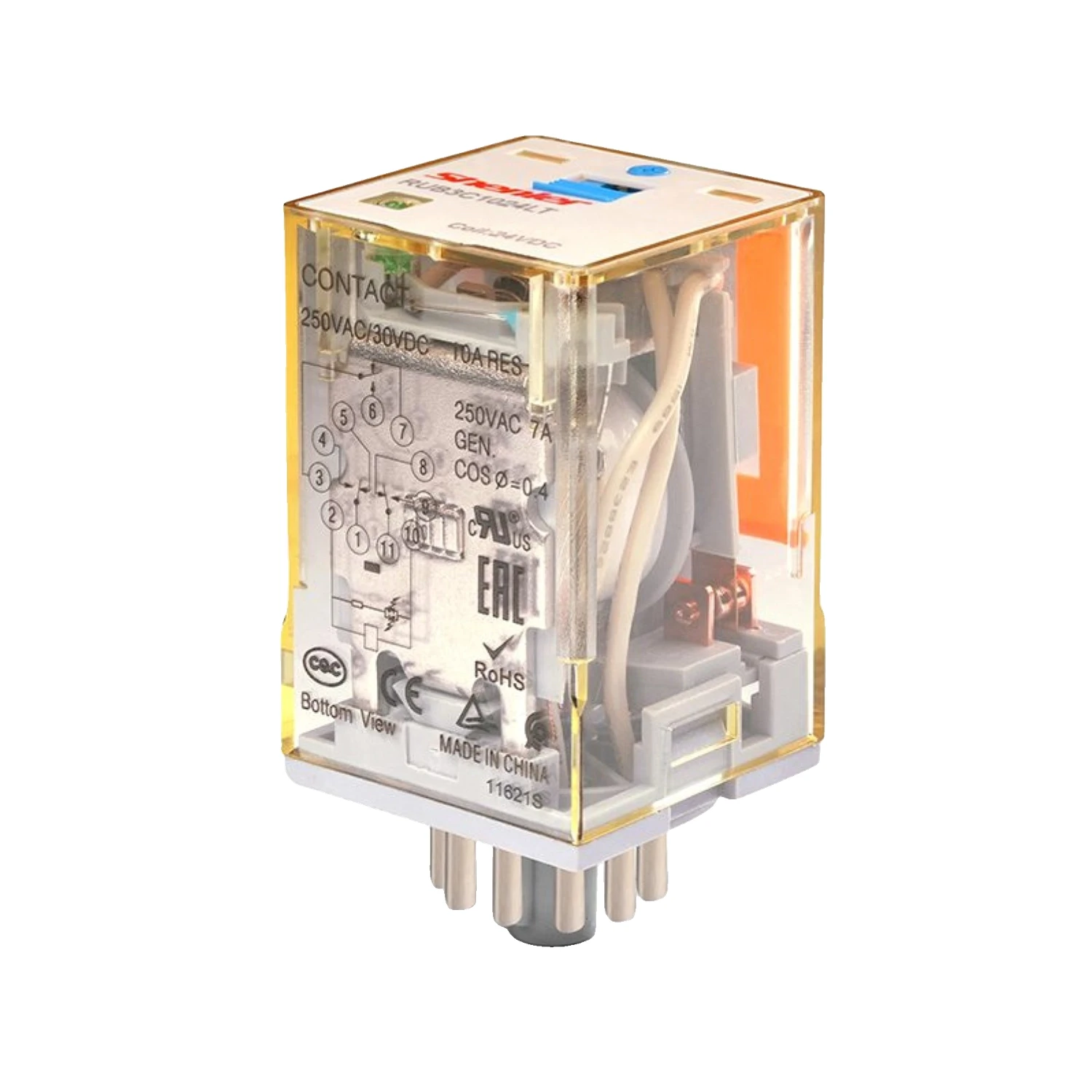

Shenler RUB 110V AC 11 Pin 10A 3CO General Purpose Relay IP20

Photo is representative

Shenler RUB 110V AC 11 Pin 10A 3CO General Purpose Relay IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11P110VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £17.26

Gross price

£20.72

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

11-pin plug-in relay from Shenler’s RUB series. Suits standard 11-pin relay bases used in industrial control panels and automation boards.

Three changeover contacts (3CO) rated at 10A/250VAC resistive. Coil picks up at ≤80% of rated voltage and drops out at ≥30% AC. Fitted with a non-polarity LED indicator, lockable test button, and inspection window for on-site functional testing.

  • Coil voltage: 110V AC
  • Contact rating: 10A, 250VAC / 30VDC
  • Max switching capacity: 2500VA (resistive)
  • Electrical durability: ≥10⁵ cycles at 1800 ops/h
  • Operating temp: -10 to +55°C
  • Protection: IP20
  • Certifications: UL, CE, UKCA, RoHS
Specifications

Coil Voltage

110V AC

Contact Form

3CO (3 changeover contacts)

Rated Current

10A

Rated Voltage

250VAC / 30VDC

Max Switching Capacity

2500VA (resistive) / 300W

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage

≥30% of rated voltage AC (50/60Hz) at 23°C

Electrical Durability

≥10⁵ cycles at 1800 ops/h

Mechanical Durability

≥2000 x 10⁵ cycles at 18000 ops/h

Operate Time

≤30ms

Release Time

≤20ms

Impulse Withstand Voltage

4000V (1.2/50μs waveform, 2000m altitude)

Insulation Resistance

≥100MΩ at 500VDC

Protection

IP20

Operating Temperature

-10 to +55°C, 5–85% RH (no condensation)

Storage Temperature

-55 to +85°C, ≤85% RH (18 months)

Mounting

Plug-in (11-pin)

Contact Material

Ag alloy

Unit Weight

approx. 85g

Certifications

UL, CE, UKCA, RoHS, CEC, EAC
