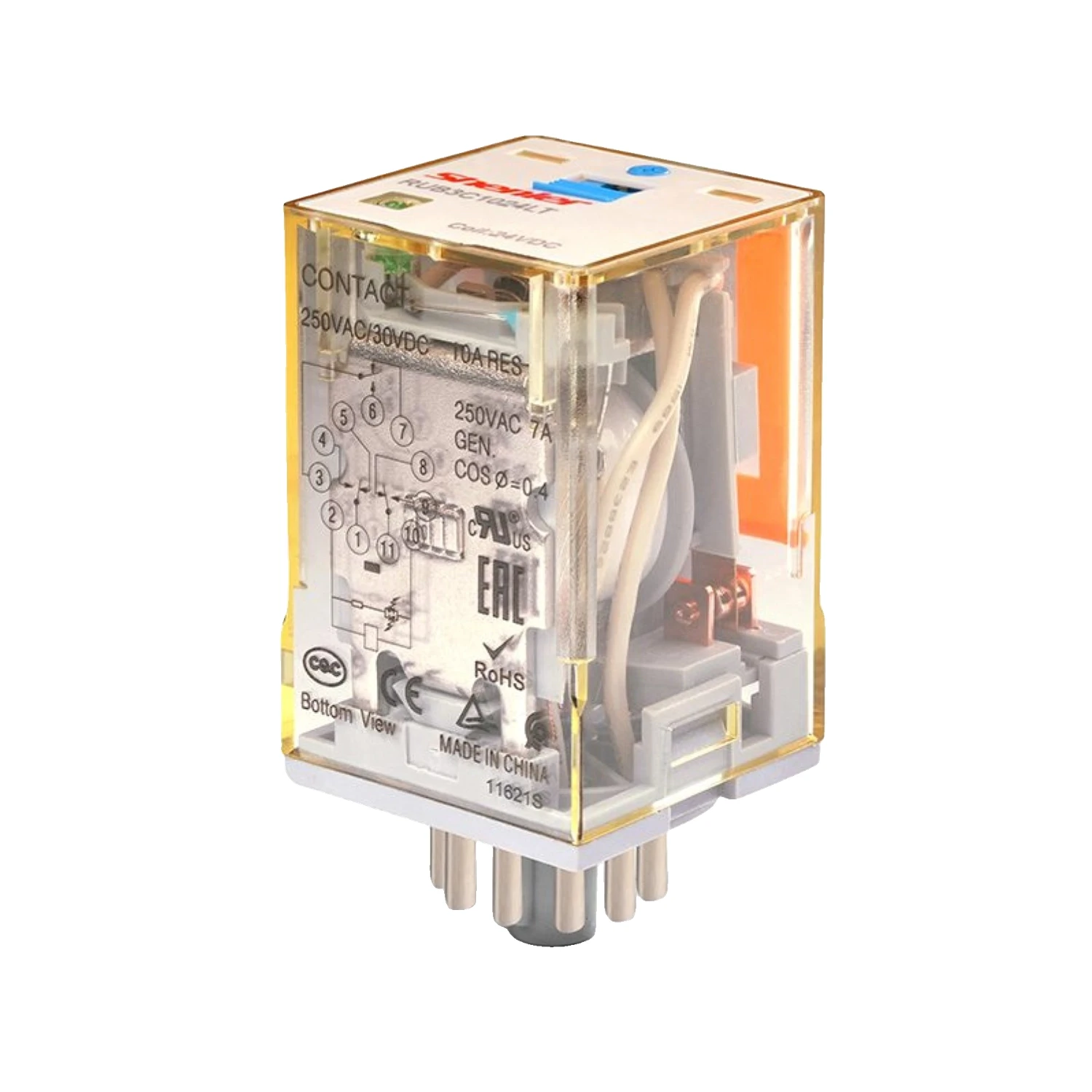

Shenler RUB 12V DC 11 Pin 10A General Purpose Relay IP20

Photo is representative

Shenler RUB 12V DC 11 Pin 10A General Purpose Relay IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11P12VDC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £16.59

Gross price

£19.91

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

11-pin plug-in relay from the Shenler RUB series. Designed for industrial control applications — plugs into a standard 11-pin socket base. Three changeover contacts (3C) handle up to 10A resistive at 250VAC.

Comes with an integrated non-polarity LED indicator (DC blue), a lockable test button with inspection window, and a metal clip for secure socket attachment.

  • Coil voltage: 12V DC
  • Contact rating: 10A, 250VAC / 30VDC
  • Max switching capacity: 2500VA / 300W (resistive)
  • Operate time: ≤30ms, Release time: ≤20ms
  • Operating temp: -10 to +55°C
Specifications

Coil Voltage

12V DC

Contact Form

3C (3 changeover contacts)

Contact Rating

10A, 250VAC / 30VDC

Max Switching Capacity

2500VA / 300W (resistive)

Contact Material

Ag alloy

Initial Contact Resistance

≤50 mΩ

Coil Resistance

96Ω at 12V DC

Coil Operating Power

approx. 1.5W (DC)

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage

≥10% DC / ≥30% AC at 23°C

Operate Time

≤30 ms

Release Time

≤20 ms

Impulse Withstand Voltage

4000V (1.2/50 μs waveform, 2000m altitude)

Insulation Resistance

≥100 MΩ at 500VDC

Breakdown Voltage (contacts to coil)

2500VAC / 1 min

Electrical Durability

≥10⁶ cycles at 1800 ops/h

Mechanical Durability

≥2000 × 10⁴ cycles at 18000 ops/h

Protection Level

IP20

Pollution Level

3

Operating Temperature

-10 to +55°C

Storage Temperature

-55 to +85°C

Mounting

Plug-in (11-pin socket)

Weight

approx. 85g

Compliance

RoHS Directive
