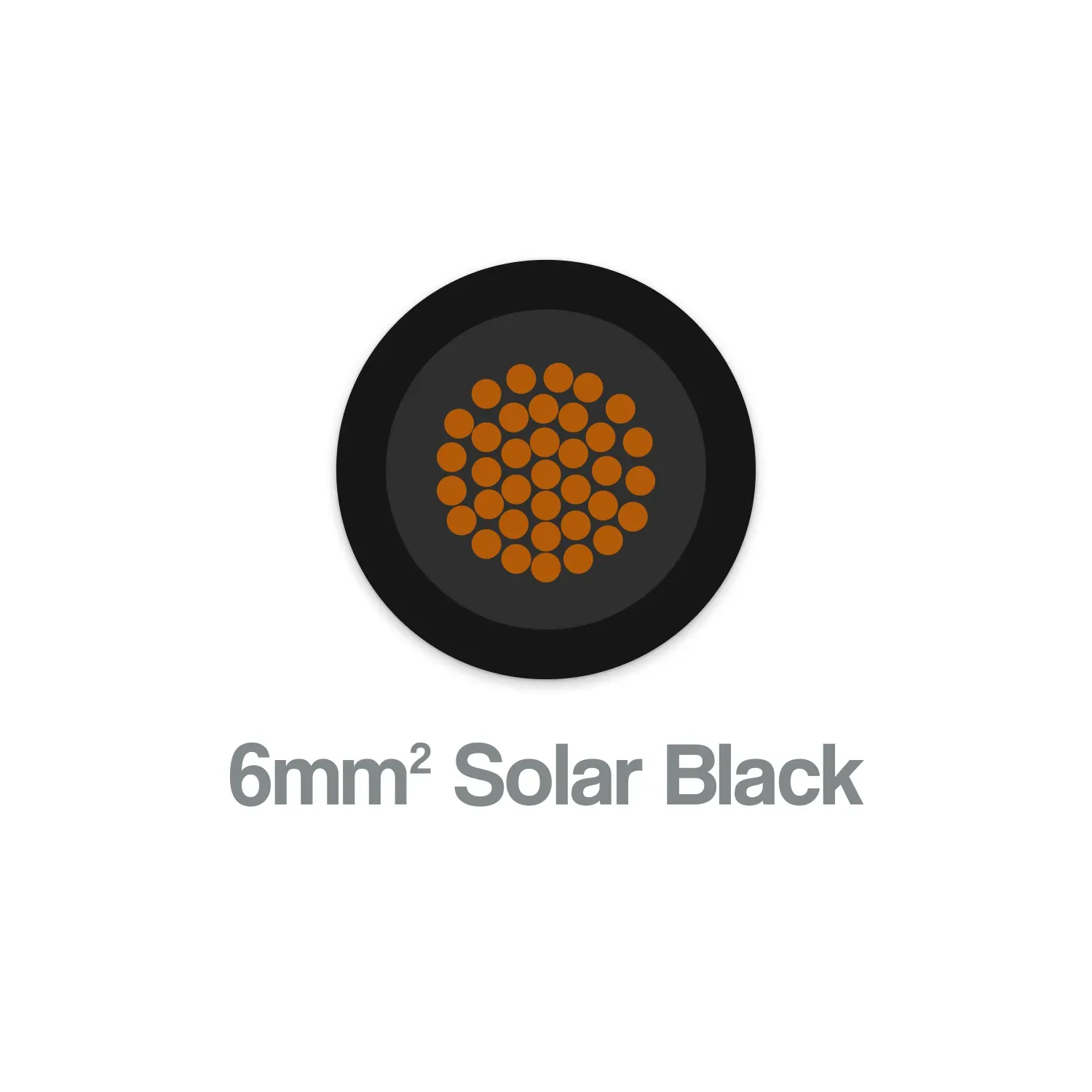

Solar PV Cable 6mm2 1C Black H1Z2Z2-K DC 1500V 500m Drum

Photo is representative

Solar PV Cable 6mm2 1C Black H1Z2Z2-K DC 1500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6SOLARBLACK-KU5
GTIN —
Stock status: In stock

priced per metre

Net price: £1.20

Gross price

£1.45

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-core 6mm2 DC solar cable with black XLPO jacket. Rated DC 1500V / AC 1.0/1.0kV. Suits PV array wiring, DC combiner boxes, and inverter connections.

Double insulated, electron-beam cross-linked XLPO — UV, ozone, and hydrolysis resistant. Halogen free and flame retardant to EN 60332-1-2. Tinned fine copper Class 5 strands. 25-year anticipated service life.

  • Rated DC 1500V / AC 1.0/1.0kV
  • 70A current-carrying capacity at 60°C
  • Operating temp -40°C to +90°C, conductor max +120°C
  • Outer diameter 6.3mm, bending radius 4x OD
  • Metre marking on jacket
Specifications

Rated Voltage

DC 1500 V, AC 1.0/1.0 kV

Current-Carrying Capacity

70 A at 60°C

Conductor Cross-Section

6.0 mm²

Number of Cores

1

Conductor Material

Tinned fine copper strands, Class 5

Insulation Material

XLPO, flame retardant, halogen free, electron-beam cross-linked

Jacket Material

XLPO, flame retardant, halogen free, electron-beam cross-linked

Jacket Colour

Black

Outer Diameter

6.3 mm

Bending Radius

4 x outer diameter

Temperature Range

-40°C to +90°C, conductor max +120°C

Short Circuit Temperature

250°C for 5 s

Conductor Resistance at 20°C

3.39 Ω/km

Weight

68 kg/km

Cable Standard

EN 50618, IEC 62930

Conductor Standard

VDE 0295 / IEC 60228 Class 5

Flame Retardancy

EN 60332-1-2

Fire Classification

Cca-s1b,d2,a1

Service Life

25 years

Drum Length

500m
