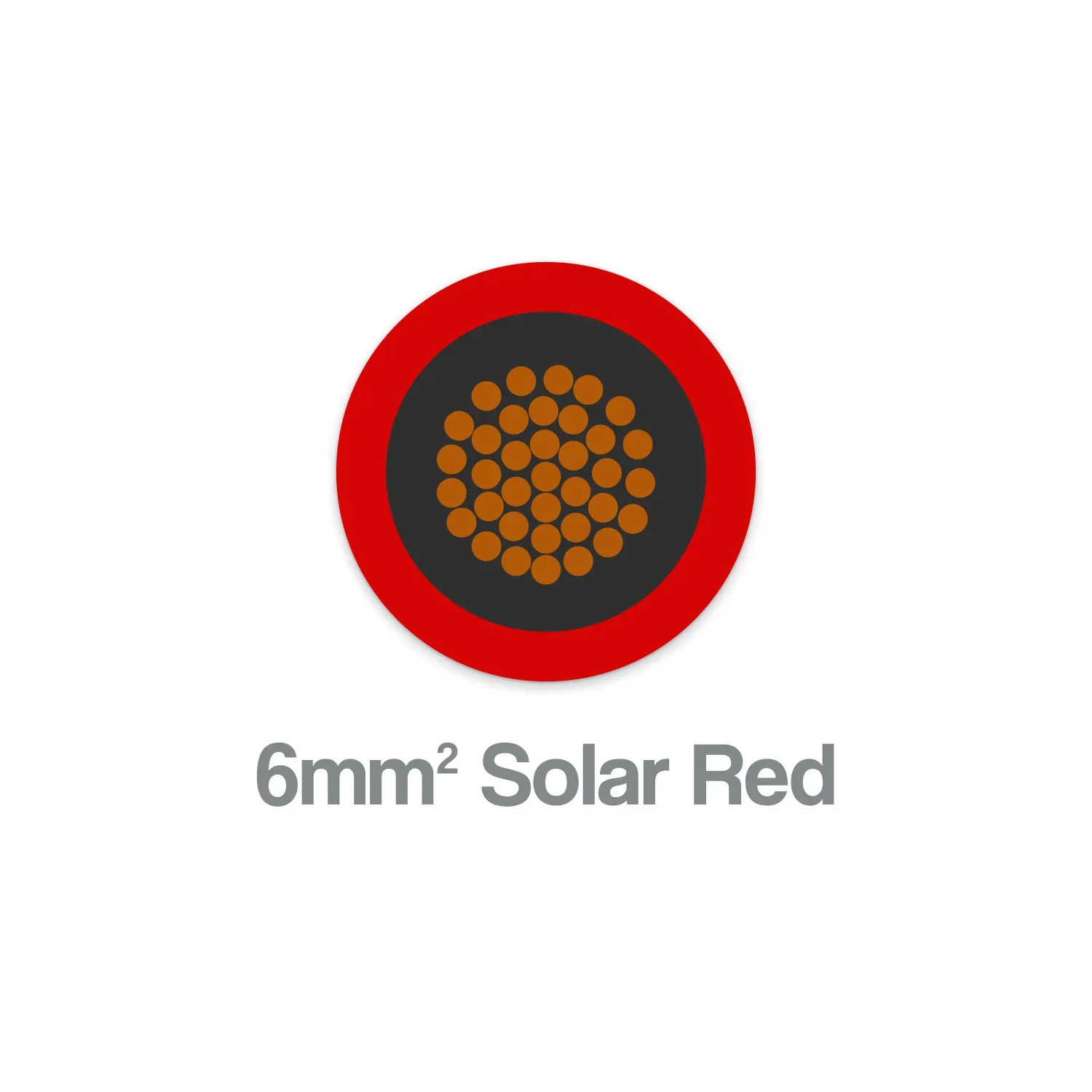

Solar PV Cable 6mm2 Red 1500V DC H1Z2Z2-K EN50618 500m Drum

Photo is representative

Solar PV Cable 6mm2 Red 1500V DC H1Z2Z2-K EN50618

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6SOLARRED-KU5
GTIN —
Stock status: In stock

priced per metre

Net price: £1.20

Gross price

£1.45

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-core 6mm² solar PV cable in red, designated H1Z2Z2-K. Built for DC array wiring, combiner box connections, and inverter feeds in photovoltaic installations.

Double insulated with electron-beam cross-linked XLPO — both insulation and jacket are halogen free and flame retardant. UV, ozone, and hydrolysis resistant. Rated for 25-year service life. Metre marked throughout the drum.

  • 1500V DC / 1.0/1.0 kV AC rated
  • 70A current-carrying capacity at 60°C
  • Operating temp: -40°C to +90°C, conductor max +120°C
  • Tinned fine copper strands, Class 5 flexible
  • Flame retardant to EN 60332-1-2, Cca-s1b,d2,a1 fire classification
Specifications

Designation

H1Z2Z2-K

Rated Voltage DC

1500 V

Rated Voltage AC

1.0/1.0 kV

Current Capacity (60°C)

70 A

Conductor Cross-Section

6.0 mm²

Number of Cores

1

Conductor Material

Tinned fine copper strands, Class 5

Insulation Material

XLPO, flame retardant, halogen free, electron-beam cross-linked

Jacket Material

XLPO, flame retardant, halogen free, electron-beam cross-linked

Jacket Colour

Red

Outer Diameter

6.3 mm

Weight

68 kg/km

Conductor Resistance at 20°C

3.39 Ω/km

Temperature Range

-40°C to +90°C, conductor max +120°C

Short Circuit Temperature

250°C for 5 s

Minimum Bending Radius

4 x outer diameter

Fire Classification

Cca-s1b,d2,a1

Standards

EN 50618, IEC 62930, VDE 0295 / IEC 60228 Class 5, EN 60332-1-2

Service Life

25 years

Drum Length

500 m
