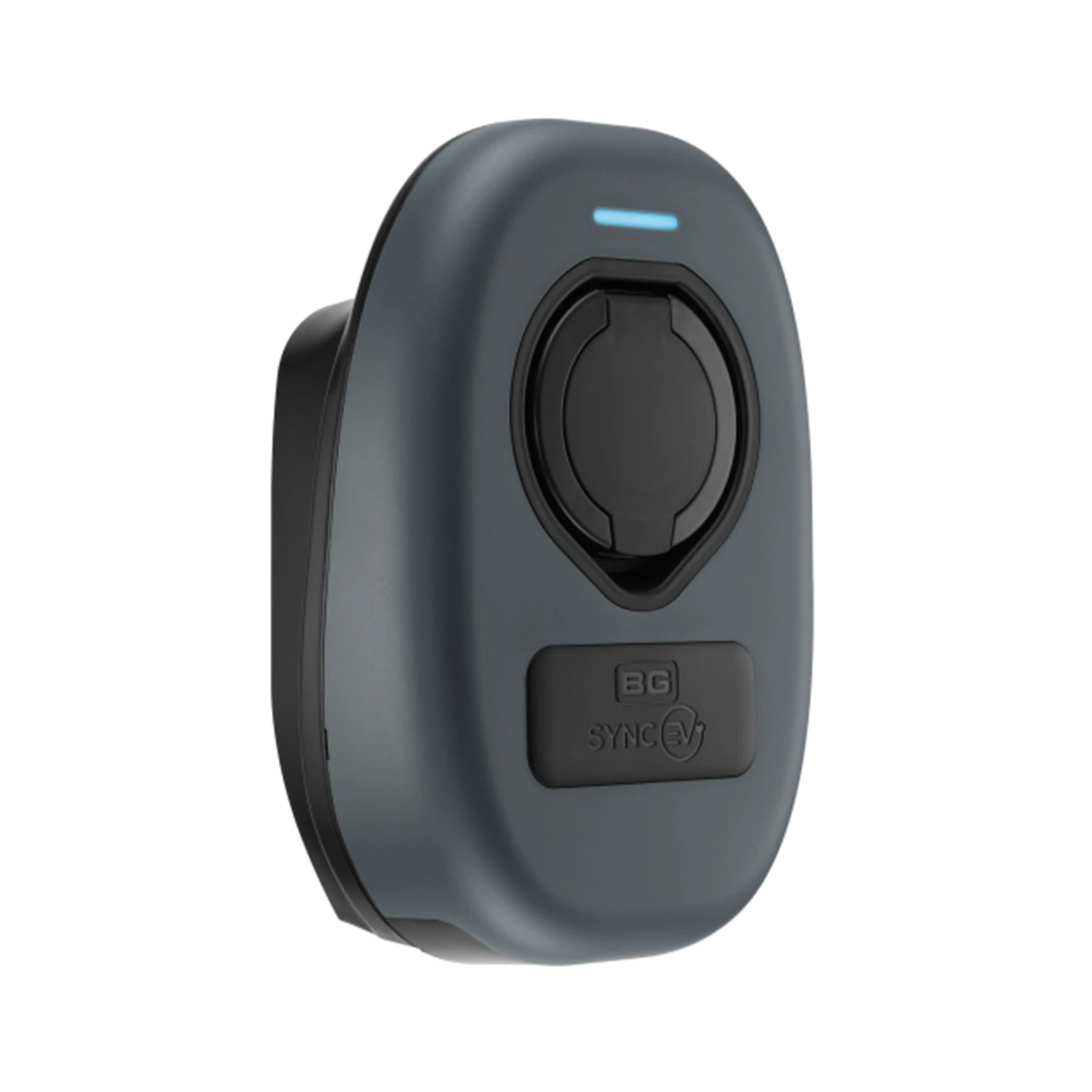

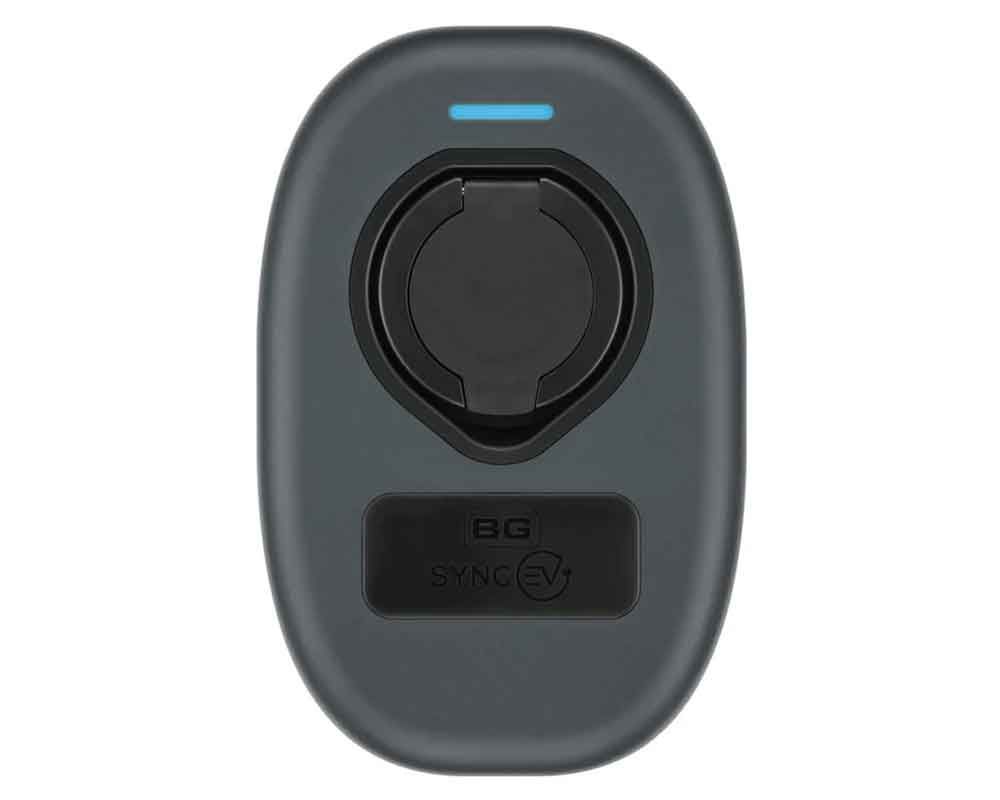

Photo is representative
BG SyncEV 22kW Socketed Wall Charger | WiFi, 4G, LAN, RFID, Smart PEN Protection
The BG SyncEV 22kW Socketed EV Wall Charger delivers high-performance charging with dynamic 22kW (32A) output, integrated open PEN protection, and full smart control via WiFi, LAN, 4G, and RFID. With built-in Type A RCD, no earth rod required, and compliance to smart charging regulations, this unit ensures reliable, future-proof installation for professional settings. Ideal for three-phase environments, it provides secure auto-locking and flexible cable management—engineered for electrical pros.
Product Information
Product Features
Applications & Uses
Commercial Charging Points
Ideal for office car parks and commercial settings requiring three-phase high-power EV charging with network control and secure RFID access management.
Shared Residential Blocks
Suitable for multi-user environments such as apartment complexes with dynamic charging, smart scheduling, and integrated safety compliance for residents.
Installation Guidelines
No Earth Rod Needed
The integrated open PEN protection removes the need for a separate earth rod, streamlining professional installation and enhancing safety compliance.
Three-Phase Supply
Requires connection to a three-phase 400-415V supply. Ensure mounting location provides network coverage for WiFi, LAN, or 4G connection as needed.
Standards & Compliance
EV Smart Charge Points 2021
Complies with UK Electric Vehicles (Smart Charge Points) Regulations 2021, including mandatory smart features and electrical safety requirements.
OCPP 1.6J Support
Supports Open Charge Point Protocol 1.6J for secure, interoperable, and remote management of charging sessions – suitable for fleet and networked use.
Frequently Asked Questions
-
Is a separate earth rod required for BG SyncEV 22kW socketed wall charger installations?
No, a separate earth rod is not required. The charger has integrated open PEN conductor protection, ensuring compliance with professional installation safety standards.
-
What type of socket and maximum current does the SyncEV charger support?
This model uses a Type 2 socket with an auto-lock feature and supports dynamic charging up to 22kW (32A), suitable for three-phase 400-415V installations.
-
How is smart functionality accessed and managed on this charger?
Smart charging and control functions are accessible via WiFi, LAN, 4G, RFID, and the Monta app. It also supports OCPP 1.6J and lifetime over-the-air updates.
-
What safety devices are included in the charger for professional use?
The BG SyncEV includes an integrated Type A RCD and open PEN conductor protection to meet safety and regulatory requirements in commercial and industrial environments.
-
Is this charger compliant with current smart charging regulations?
Yes, it is fully compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021, including all requirements of Schedule 1 for safe professional installations.
