Photo is representative

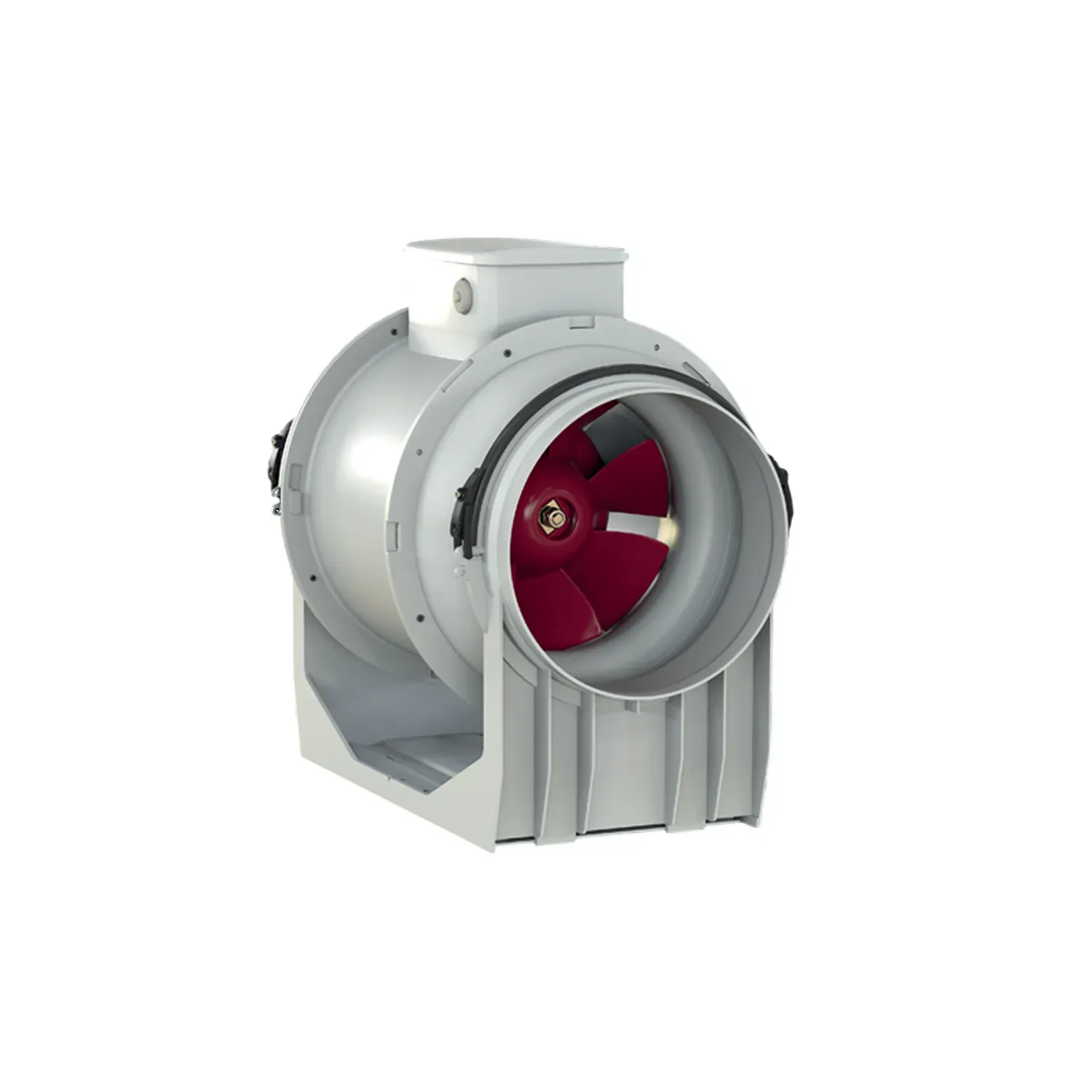

Vortice Lineo 100 T 100mm Inline Centrifugal Fan with Timer 220-240V
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
17185
GTIN
—
Stock status:
8 in stock
priced individually
More arriving soon
Net price: £103.43
Gross price
£124.11
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
The Vortice Lineo 100 T is a 100mm inline centrifugal fan designed for ductwork installation. Centrifugal impeller driven by a thermally protected induction motor on ball bearing supports — suited to longer duct runs where axial fans won’t cut it.
Fitted with an electronic timer for automatic operation at max speed. Timer is field-adjustable between 3 and 20 minutes, defaulting to 3 minutes at installation. Speed is also adjustable via compatible Vortice speed control devices.
- Max airflow: 255 m³/h at max speed
- Max static pressure: 161.9 Pa at max speed
- Breakout sound pressure at 3m (max speed): 29.5 dB(A)
- IP44 rated; IPX5 if installed in duct
- Insulation Class II
