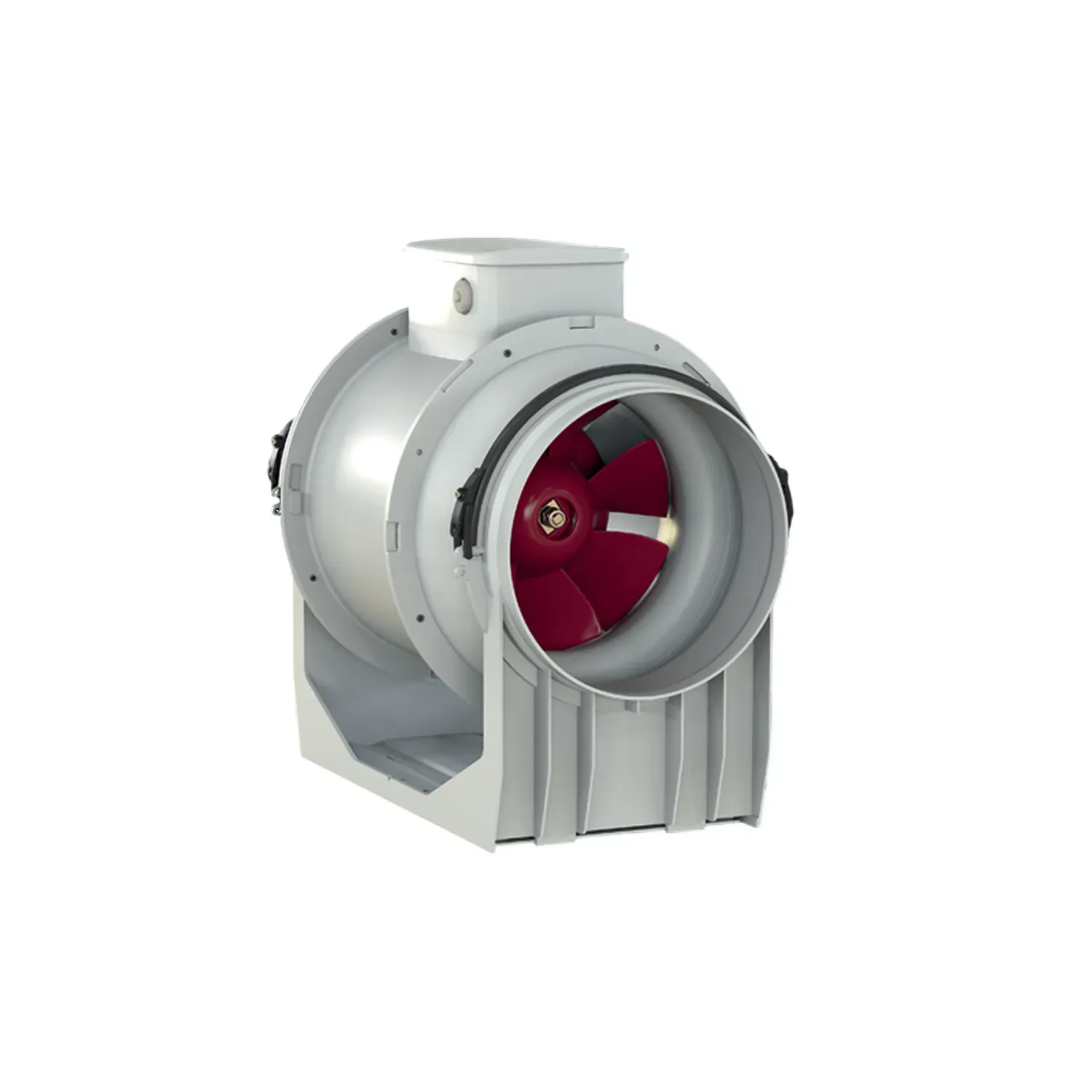

Vortice Lineo 150 Inline Centrifugal Fan 150mm 550m3h IP44 220-240V

Photo is representative

Vortice Lineo 150 Inline Centrifugal Fan 150mm 550m3h IP44 220-240V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 17146
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £128.76

Gross price

£154.51

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Vortice Lineo 150 is a 150mm inline centrifugal fan for ductwork integration. Centrifugal impeller on a thermally protected induction motor with ball bearing supports. Two-speed operation — speed adjustable via compatible Vortice speed control devices.

Fire-resistant plastic resin enclosure (E2 class, ISO EN 11925-2:2010) around motor and electrical components. High water resistance rated IPX5 when installed in duct.

  • Max airflow: 550 m³/h at max speed
  • Max static pressure: 264.9 Pa (27 mmH₂O) at max speed
  • Breakout sound pressure at 3m: 35.0 dB(A) at max speed, 24.9 dB(A) at min speed
  • Supply: 220–240V, 50Hz, Class II insulation
  • Weight: 2.5 kg
Specifications

Nominal Diameter

150 mm

Voltage

220-240 V

Frequency

50 Hz

Insulation Class

II

IP Rating

IP44 (IPX5 when installed in duct)

Max Airflow (Max Speed)

550 m³/h / 152.8 l/s

Airflow at 1st Speed

385 m³/h / 106.9 l/s

Max Static Pressure (Max Speed)

264.9 Pa / 27 mmH₂O

Static Pressure at 1st Speed

206 Pa / 21 mmH₂O

Max Absorbed Power (Max Speed)

58 W

Power at 1st Speed

40 W

Max Absorbed Current (Max Speed)

0.26 A

Max Absorbed Current (Min Speed)

0.18 A

Max RPM

2100

Min RPM

1580

Max Continuous Operating Temperature

60°C

Breakout Sound Pressure at 3m (Max Speed)

35.0 dB(A)

Breakout Sound Pressure at 3m (Min Speed)

24.9 dB(A)

Breakout Sound Power LWA (Max Speed)

55.6 dB(A)

Breakout Sound Power LWA (Min Speed)

45.4 dB(A)

Weight

2.5 kg

Certifications

CE, CCC, G-Mark, UKCA, CB Test Certificate

Motor Type

Induction motor, thermally protected, ball bearing

Impeller Type

Centrifugal

Documents

datasheet 17146 Datasheet
