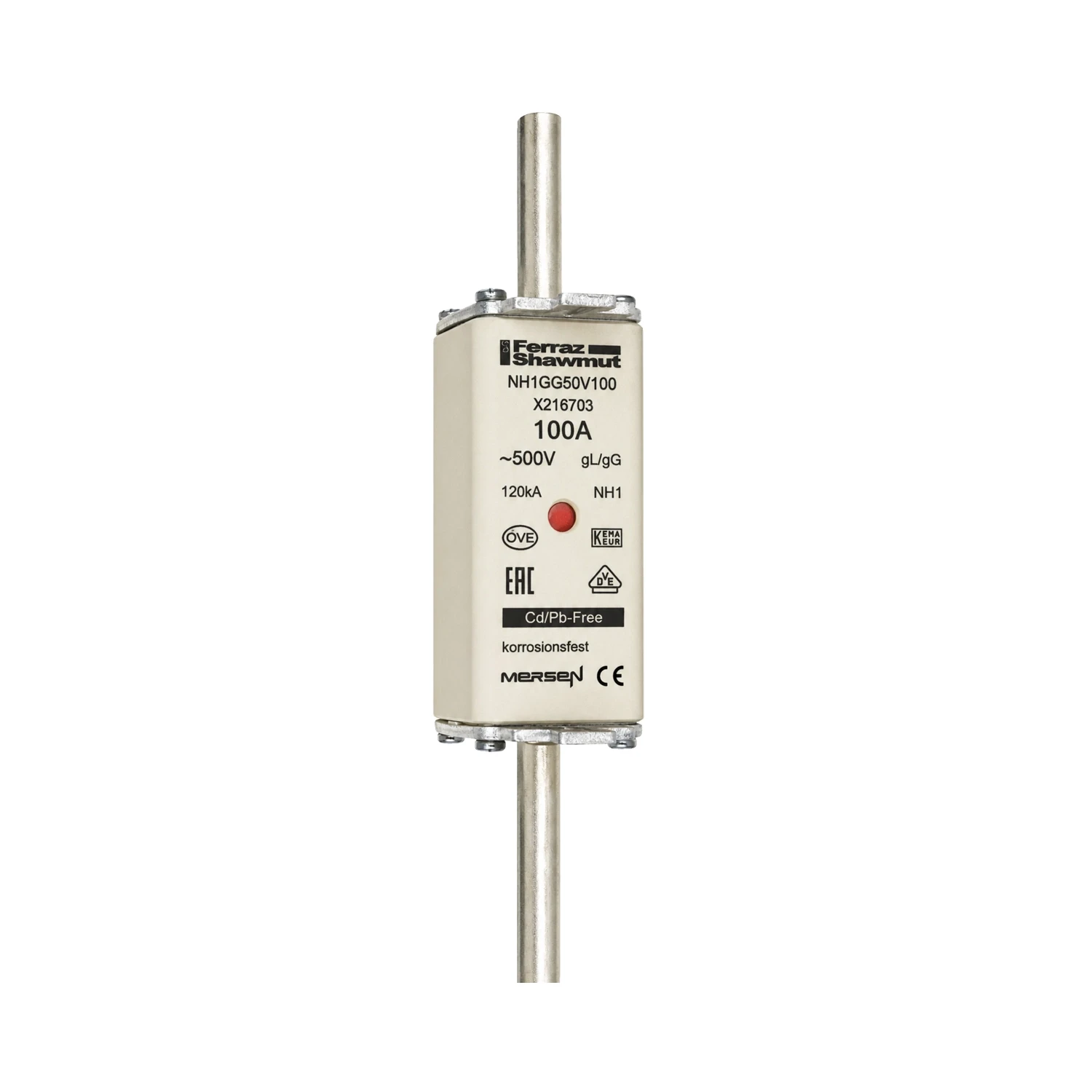

NH1 gG 100A 500VAC Ceramic Fuse-Link Size 1

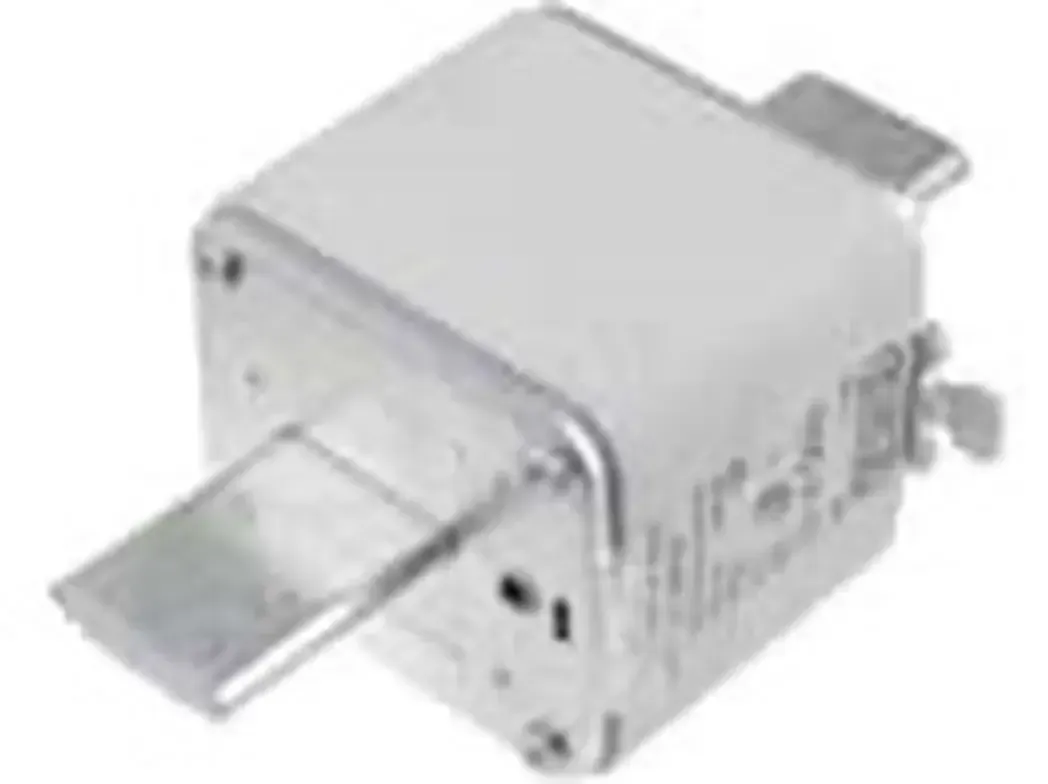

Photo is representative

NH1 gG 100A 500VAC Ceramic Fuse-Link Size 1

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH1100
GTIN —
Stock status: In stock

priced individually

Net price: £6.80

Gross price

£8.16

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH Size 1 gG fuse-link rated 100A for general purpose cable and line protection in LV systems. Suits distribution boards and industrial switchgear up to 500VAC.

Full-range breaking capacity — handles fault currents from overload through to short-circuit. Double indicator fitted as standard. Gripping lugs are non-isolated.

  • Rated current: 100A
  • Rated voltage: 500VAC / 250VDC
  • Breaking capacity: 120kA AC / 80kA DC
  • Body: ceramic
  • Contacts: copper, silver-plated
Specifications

Fuse Class

gG

Size

1

Rated Current

100 A

Rated Voltage AC

500 V

Rated Voltage DC

250 V

Breaking Capacity AC

120 kA

Breaking Capacity DC

80 kA

Power Dissipation

9.4 W

Width

29.5 mm

Body Material

Ceramic

Contact Material

Copper, silver-plated

Indication

Double indicator

Gripping Lugs

Non-isolated, live

Standards

IEC 60269-1, IEC 60269-2, VDE 0636 Part 201
