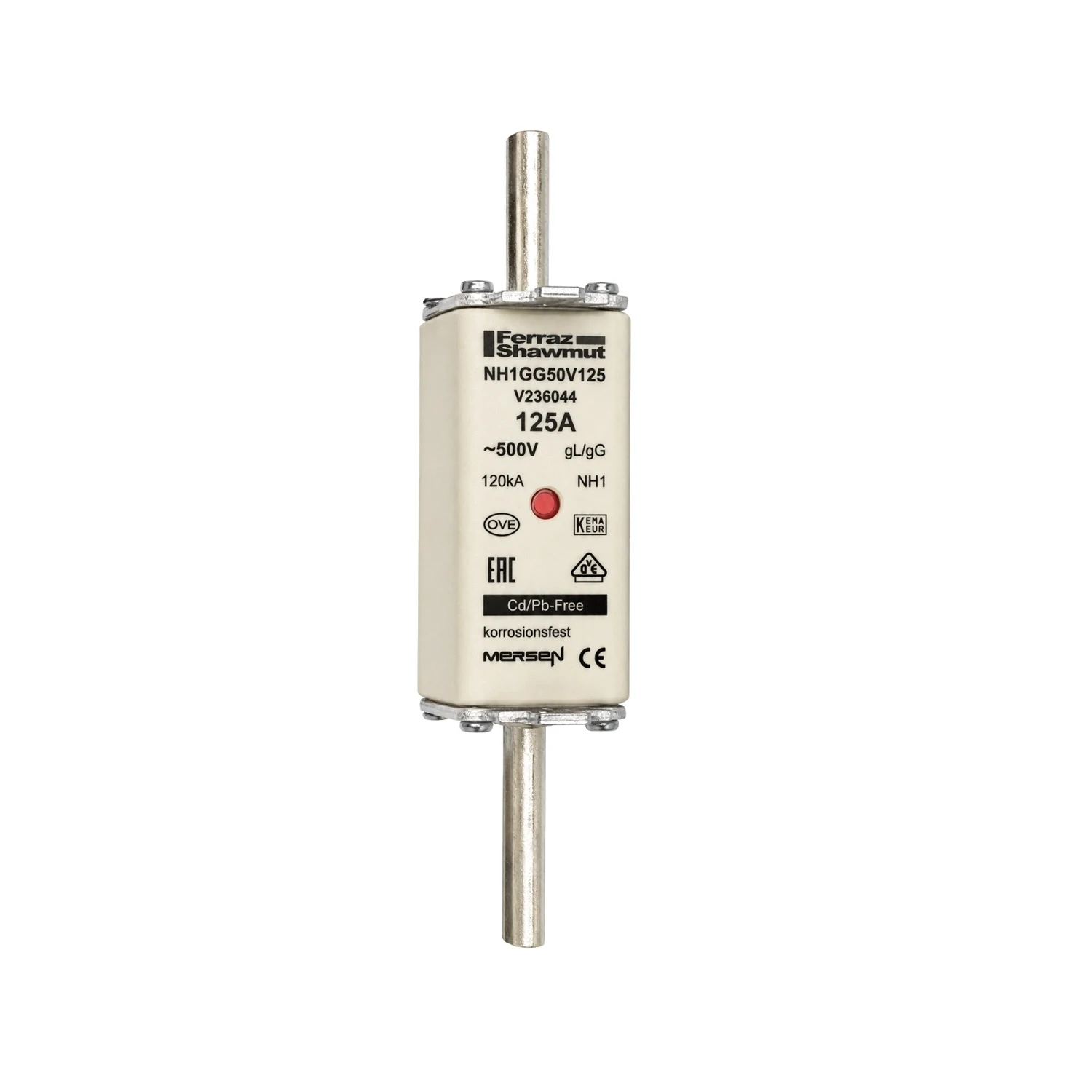

NH1 gG 125A 500V AC Fuse-Link Size 1 Ceramic

Photo is representative

NH1 gG 125A 500V AC Fuse-Link Size 1 Ceramic

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH1125
GTIN —
Stock status: In stock

priced individually

Net price: £6.05

Gross price

£7.26

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH1 gG fuse-link for general purpose cable and line protection. Size 1, suits standard NH1 fuse carriers and switch-disconnectors.

Full range breaking capacity — handles short-circuit currents up to 120 kA AC. Double indicator fitted as standard. Gripping lugs are non-isolated and live.

  • Rated current: 125A
  • Voltage: 500V AC / 250V DC
  • Breaking capacity: 120 kA AC / 80 kA DC
  • Body: ceramic, contacts copper with silver-plated finish
  • Standards: IEC 60269-1 and -2, VDE 0636 Part 201
Specifications

Rated Current

125 A

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

250 V

Breaking Capacity AC (IEC)

120 kA

Breaking Capacity DC (IEC)

80 kA

Fuse Class

gG

Size

Size 1

Width

29.5 mm

Body Material

Ceramic

Contact Material

Copper, silver-plated

Indication System

Double indicator

Gripping Lugs

Non-isolated, live

Power Dissipation at In

11.8 W

Standards

IEC 60269-1 and -2, VDE 0636 Part 201
