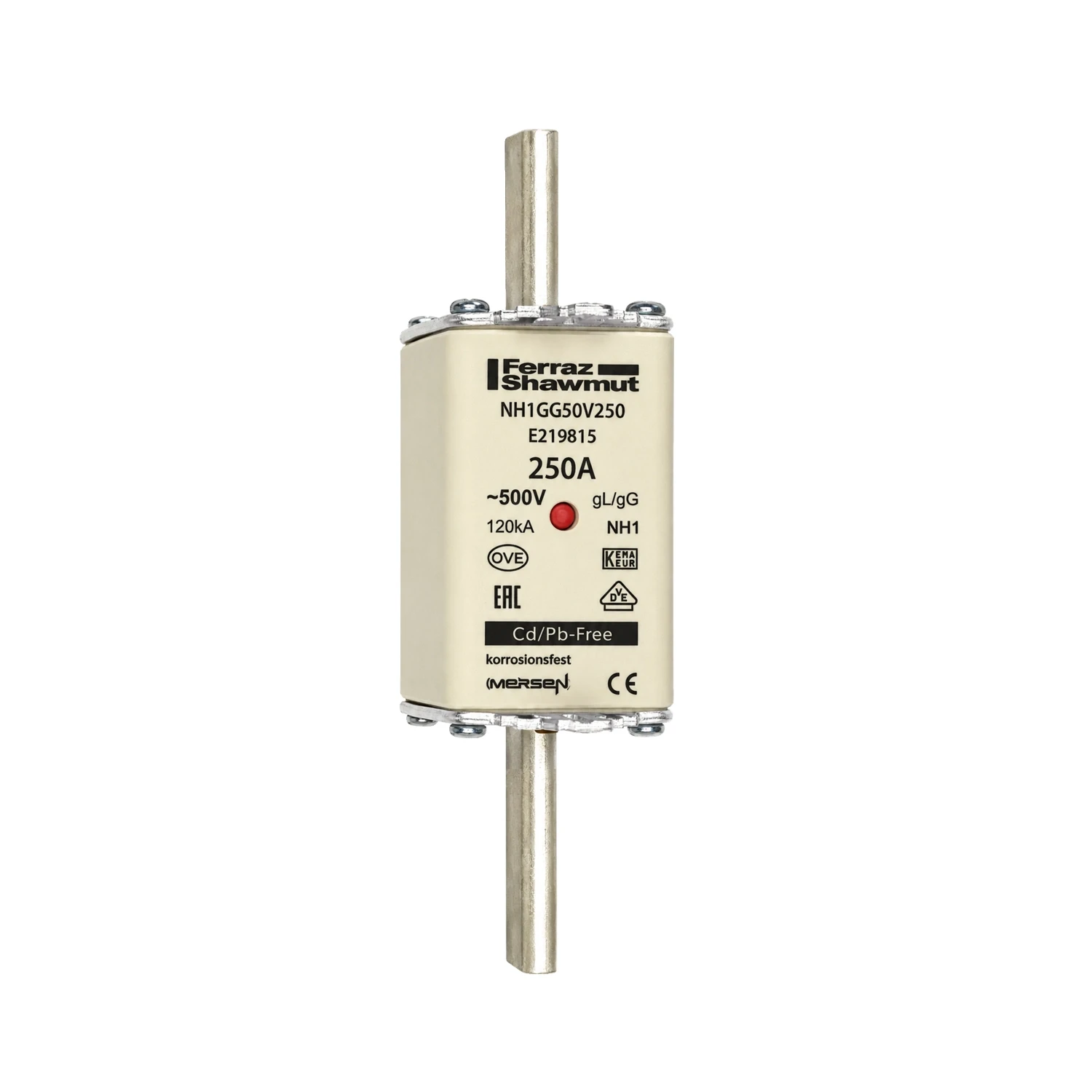

NH1 250A gG 500VAC Fuse-Link Double Indicator Live Gripping Lugs

Photo is representative

NH1 250A gG 500VAC Fuse-Link Double Indicator Live Gripping Lugs

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH1250
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £20.86

Gross price

£25.04

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Size 1 NH fuse-link, gG class. Rated 250A at 500VAC — suits general purpose cable and line protection in industrial distribution and motor control panels.

  • Rated current: 250A
  • AC breaking capacity: 120kA
  • DC breaking capacity: 80kA at 250V DC
  • Power dissipation at In: 20W
  • Standards: IEC 60269-1 and -2, VDE 0636 Part 201
Specifications

Rated Current

250 A

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

250 V

Breaking Capacity AC

120 kA

Breaking Capacity DC

80 kA

Fuse Class

gG

Size

NH1

Power Dissipation at In

20 W

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Indication System

Double indicator

Gripping Lugs

Non-isolated, live

Width

39.5 mm

Weight

0.42 kg

Standards

IEC 60269-1 and -2, VDE 0636 Part 201
