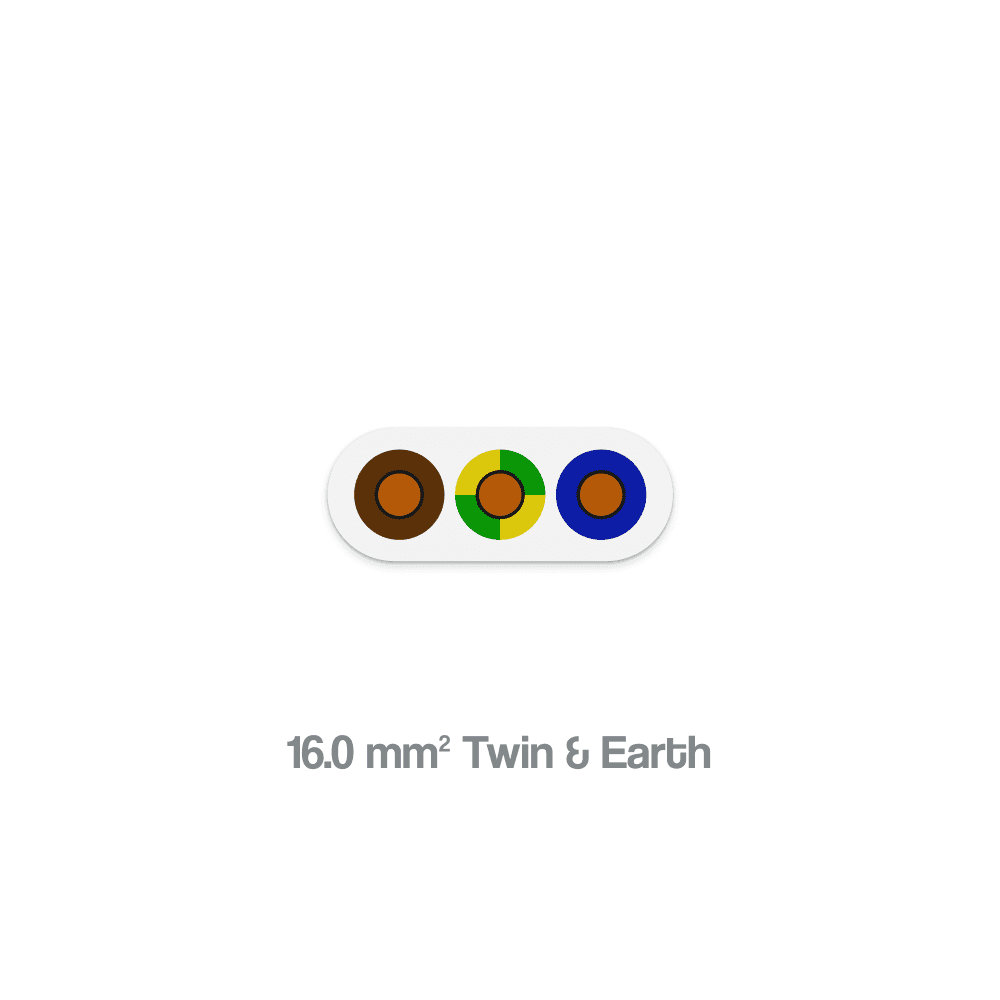

16.0 sqmm Twin & Earth

Photo is representative

Twin and Earth 16mm2 LSZH 300 500V White 100m Drum N16TE1

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code N16TE1
GTIN —
Stock status: In stock

per metre

More arriving soon

Net price: £9.83

Gross price

£11.79

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

16mm² T&E with LSZH outer sheath and XLPE insulation. Meets Republic of Ireland National Rules for Electrical Installations ET 101 Amendment No. 2.2, rated to I.S. 201-4:2013 N05Z1ZH4. Insulated G/Y earth is the same cross-section as the line cores.

Suited to fixed wiring in dry or damp premises — clip direct, cable tray, free air, or pull into conduit or trunking where mechanical protection is needed.

  • 300/500V rated, 90°C operating temp
  • Class 2 stranded Cu conductors, 7⁄1.70 mm stranding
  • LSZH sheath: low smoke, zero halogen
  • Overall dimensions: 9.40 x 23.00 mm
Specifications

Standard

I.S. 201-4:2013 N05Z1ZH4

Voltage Rating

300/500 V

Temperature Range

-5°C to +90°C

Conductor Material

Class 2 stranded copper

Conductor Size

16 mm²

No. of Cores

3

Stranding

7/1.70 mm

Overall Diameter

9.40 x 23.00 mm

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

White

Core Colours

Brown, Blue, Green/Yellow Earth

Earth Conductor

Insulated, same size as line cores
