10.0 sqmm Twin & Earth

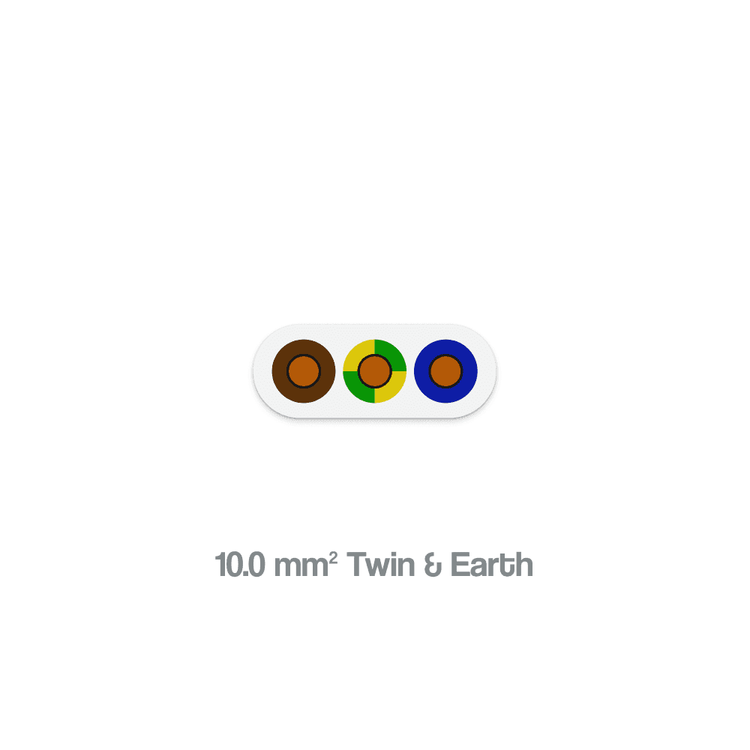

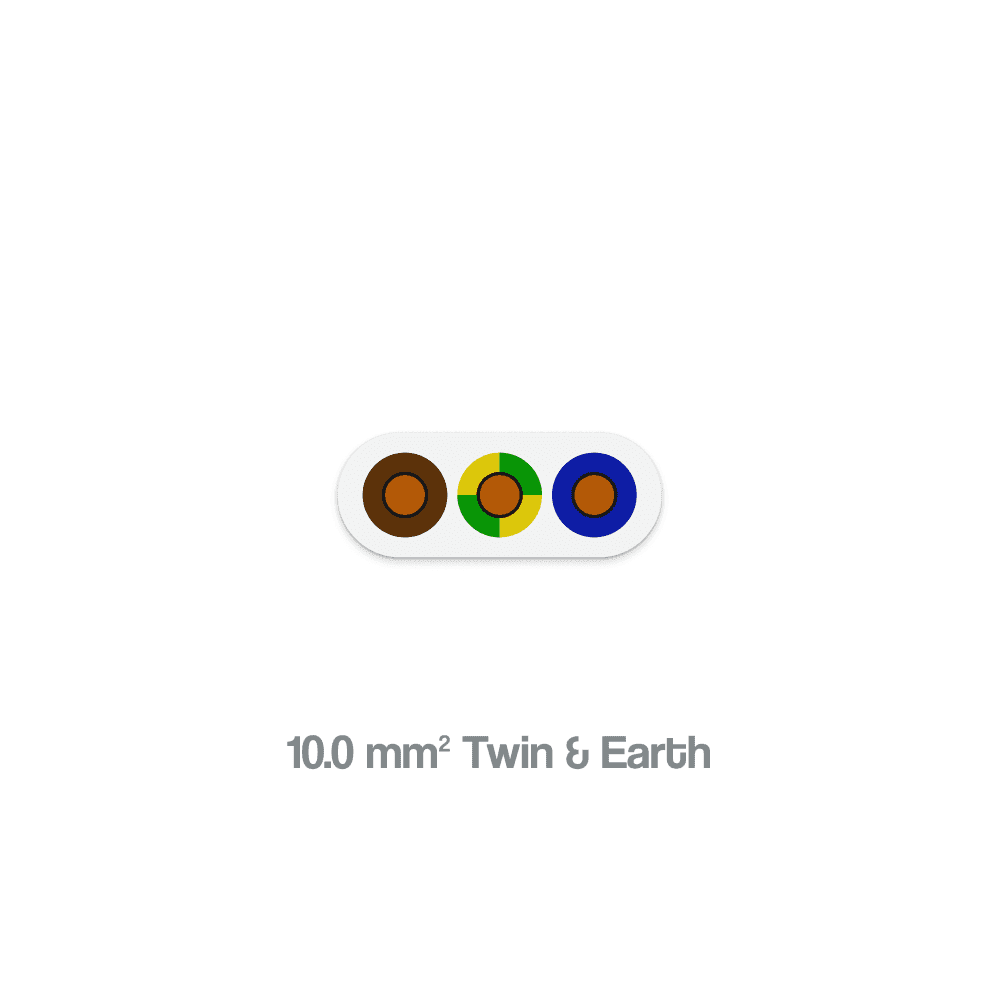

Photo is representative

Twin and Earth 10mm2 LSZH 300 500V White 3 Core 100m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code N10TE1
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £6.48

Gross price

£7.78

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

10mm² T&E with XLPE insulation and LSZH outer sheath. Rated to I.S. 201-4:2013 N05Z1ZH4 — meets Republic of Ireland National Rules for Electrical Installations ET 101 Amendment No. 2.2.

Suitable for fixed wiring in dry or damp premises. Can be clipped direct, run on cable tray, in free air, or pulled into conduit or trunking where mechanical protection is needed.

  • Class 2 stranded Cu conductors: 7⁄1.35mm stranding
  • Insulated G/Y CPC — same cross-section as line and neutral
  • Overall dimensions: 8.30 x 20.00mm
  • Rated -5°C to +90°C
Specifications

Standard

I.S. 201-4:2013 N05Z1ZH4

Voltage Rating

300/500 V

Temperature Range

-5°C to +90°C

Conductor Size

10 mm²

Number of Cores

3

Conductor Type

Class 2 stranded copper

Stranding

7/1.35 mm

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

White

Core Colours

Brown, Blue, Green/Yellow Earth

Earth Conductor

Insulated, same size as line and neutral

Overall Dimensions

8.30 x 20.00 mm

Drum Length

100 m
