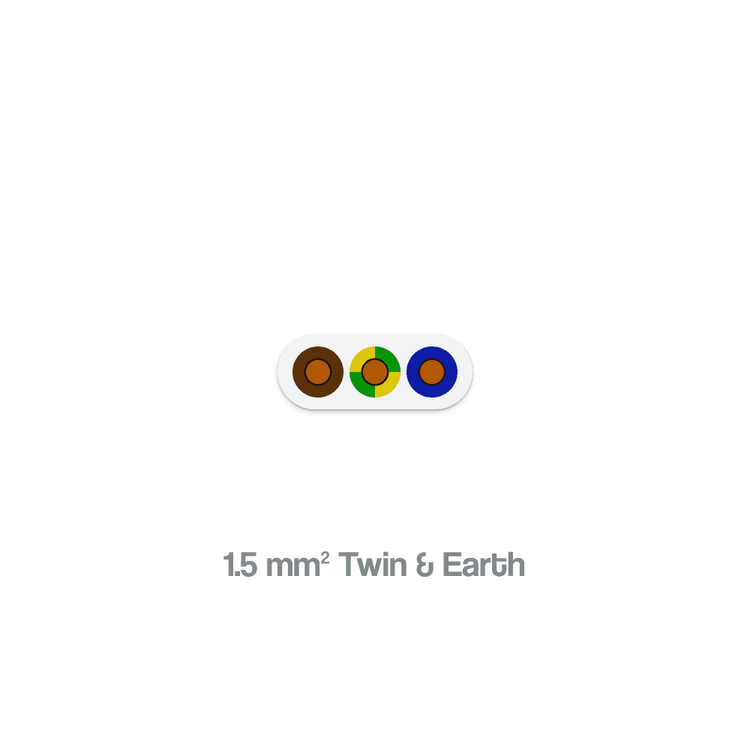

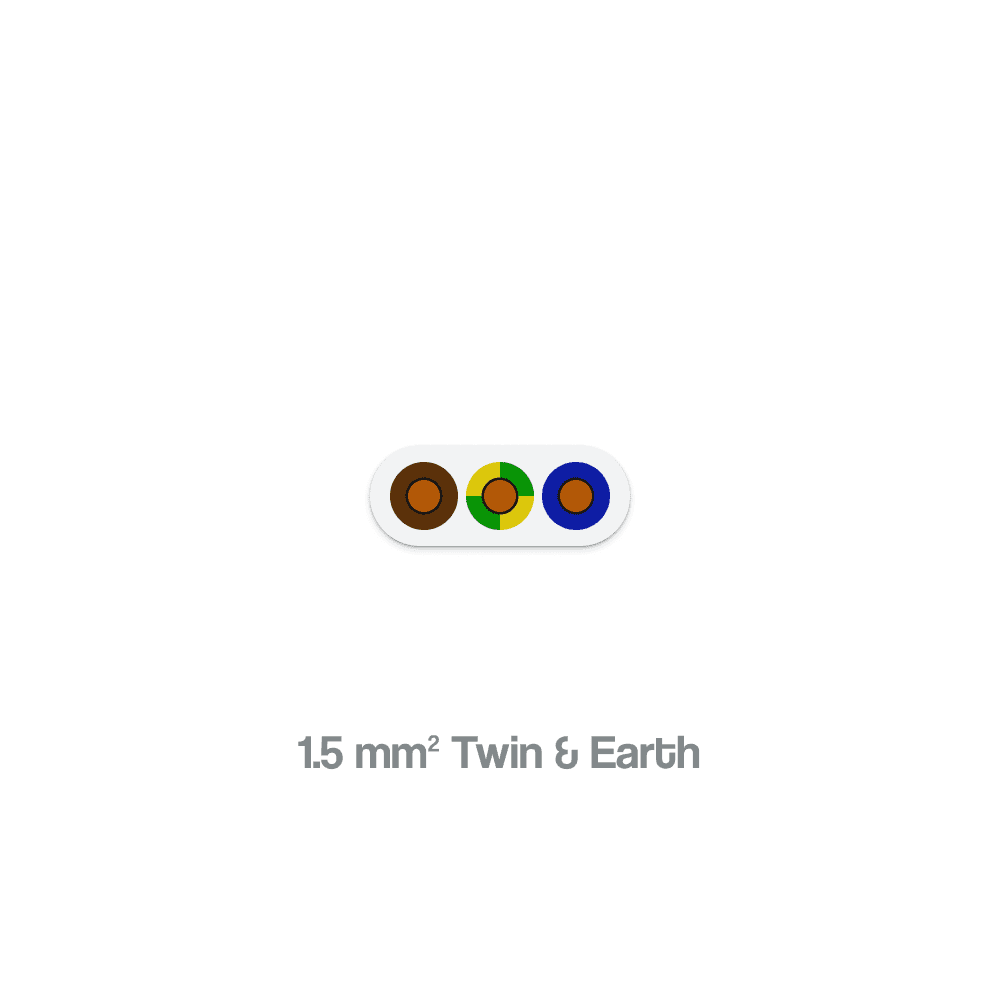

1.5 sqmm Twin & Earth

Photo is representative

Twin Earth 1.5mm2 XLPE LSZH 300 500V White 100m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code N15TE1-ROLL
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.05

Gross price

£1.26

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

1.5mm² T&E with XLPE insulation and LSZH outer sheath. Meets Republic of Ireland standard I.S. 201-4:2013 and Amendment No. 2.2 to ET 101. Suitable for fixed wiring in dry or damp premises.

Can be clipped direct, run on cable tray, in free air, or pulled through conduit or trunking where mechanical protection is needed. Insulated CPC is the same cross-section as the line and neutral cores.

  • Conductor: Class 1 solid copper, 1⁄1.38mm stranding
  • Insulation: XLPE
  • Sheath: LSZH, white
  • Overall dimensions: 4.75 x 10.08mm
  • Cores: Brown, Blue, Green/Yellow earth
Specifications

Standard

I.S. 201-4:2013 N05Z1ZH4

Voltage Rating

300/500 V

Temperature Range

-5°C to +90°C

Conductor Material

Class 1 solid copper

Conductor Size

1.5 mm²

Stranding

1/1.38 mm

Number of Cores

3

Core Colours

Brown, Blue, Green/Yellow

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

White

Overall Diameter

4.75 x 10.08 mm

Drum Length

100 m
