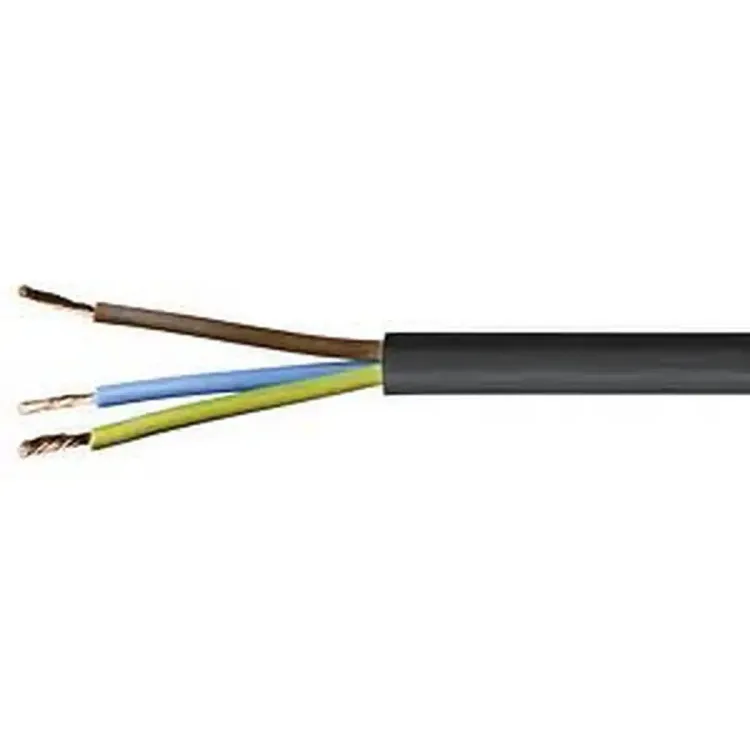

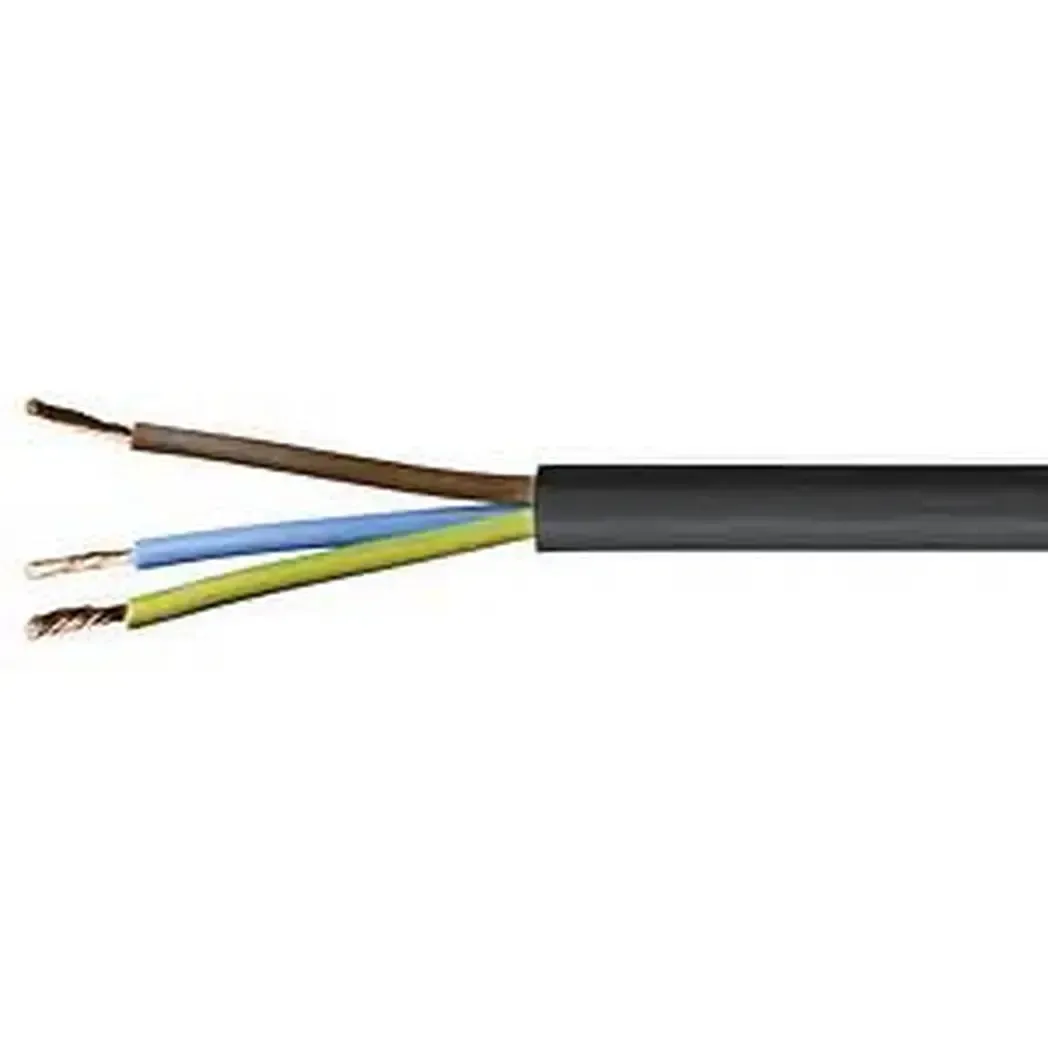

H05RN-F 3G 0.75mm2 Flexible Rubber Cable 300 500V Black

Photo is representative

H05RN-F 3G 0.75mm2 Flexible Rubber Cable 300 500V Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 375TRS
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.64

Gross price

£0.77

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

H05RN-F 3-core flexible rubber cable in 0.75mm². Rated 300/500V — suits light mechanical stress applications: hoovers, portable tools, kitchen and garden appliances.

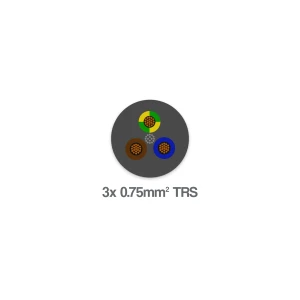

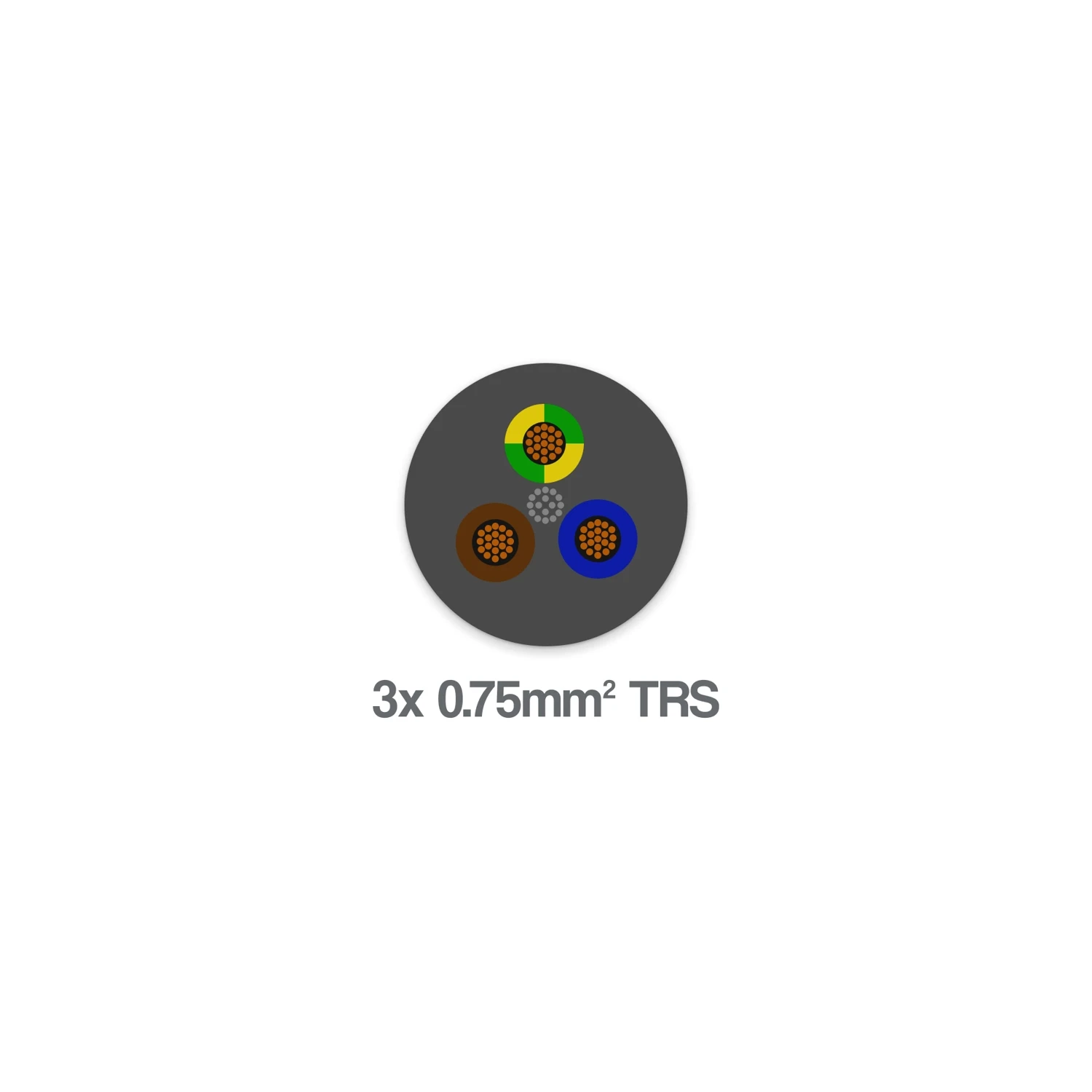

Finely stranded Class 5 bare copper conductors with rubber insulation and black rubber outer sheath. Rated for use in dry, damp, wet rooms and outdoors.

  • 3G 0.75mm² — includes GN-YE CPC
  • Operating temp: –25°C to +60°C (flexible use)
  • OD: 6.2–8.1mm, min. bend radius 7.5 × OD
  • Flame-retardant: IEC 60332-1-2
  • HAR and EAC approved
Specifications

Cable Type

H05RN-F

Cores x Cross-Section

3 G 0.75 mm²

Nominal Voltage

300/500 V AC

Max Operating Voltage (AC L-E)

318 V

Max Operating Voltage (AC L-L)

550 V

Max Operating Voltage (DC L-E)

413 V

Max Operating Voltage (DC L-L)

825 V

Test Voltage Core/Core

2000 V

Conductor

Bare copper, finely stranded, Class 5 (IEC 60228)

Core Insulation

Rubber compound type EI4

Outer Sheath

Rubber compound type EM2, black

Operating Temperature (Flexible)

–25°C to +60°C

Operating Temperature (Fixed)

–30°C to +60°C

Outer Diameter

6.2–8.1 mm

Minimum Bending Radius

7.5 × outer diameter

Flame Retardant

IEC 60332-1-2

Approvals

HAR, EAC

Cable Weight

90.0 kg/km
