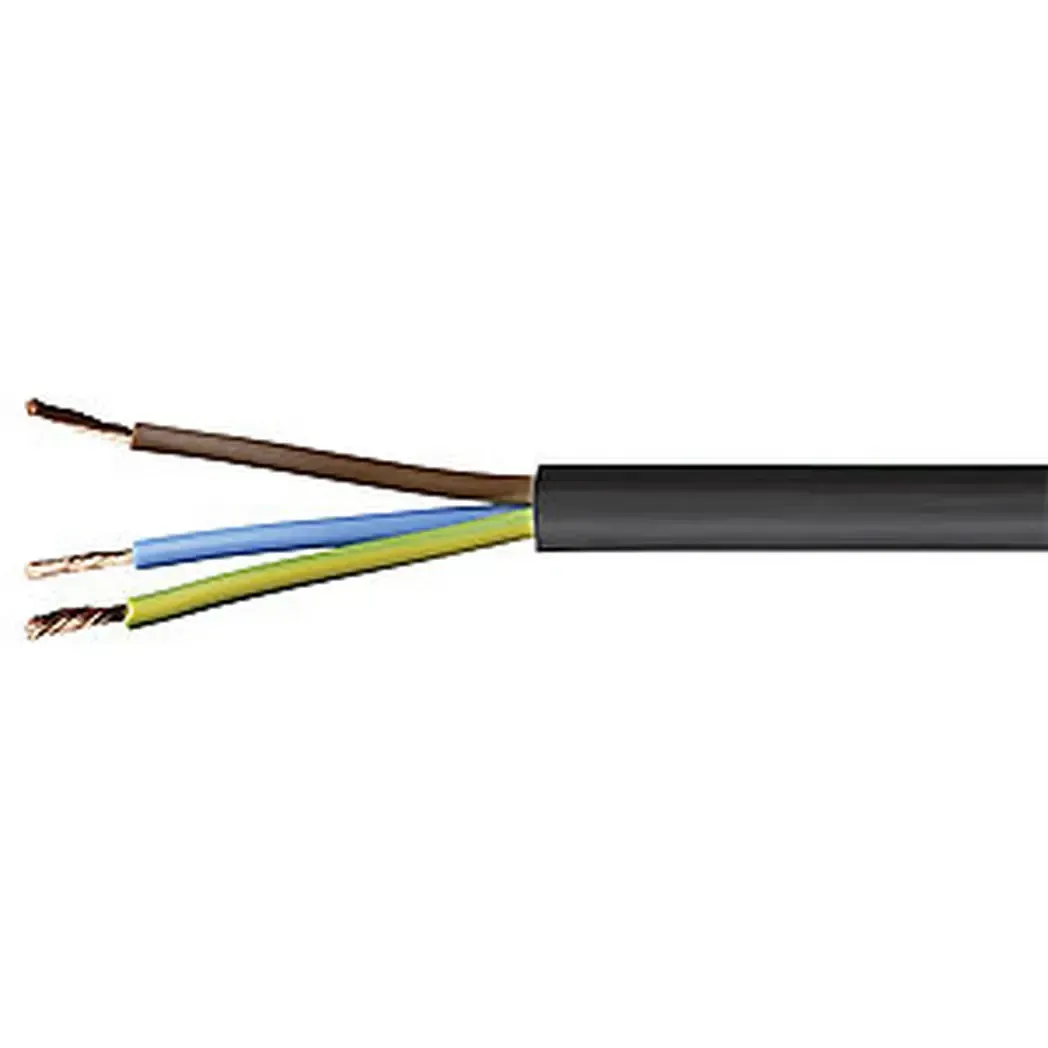

H07RN-F 3 Core 1.5mm2 Flexible EPR PCP Rubber Cable Black 0.6 1kV

Photo is representative

H07RN-F 3 Core 1.5mm2 Flexible EPR PCP Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.69

Gross price

£2.02

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

TRS flexible rubber cable to H07RN-F. EPR insulation with polychloroprene (PCP) outer sheath — built for trailing leads, site supplies, and industrial environments where mechanical abuse and temperature extremes are a factor.

Suitable for portable power supplies, site equipment, industrial machinery, and AV equipment. Rated for fixed and flexing applications.

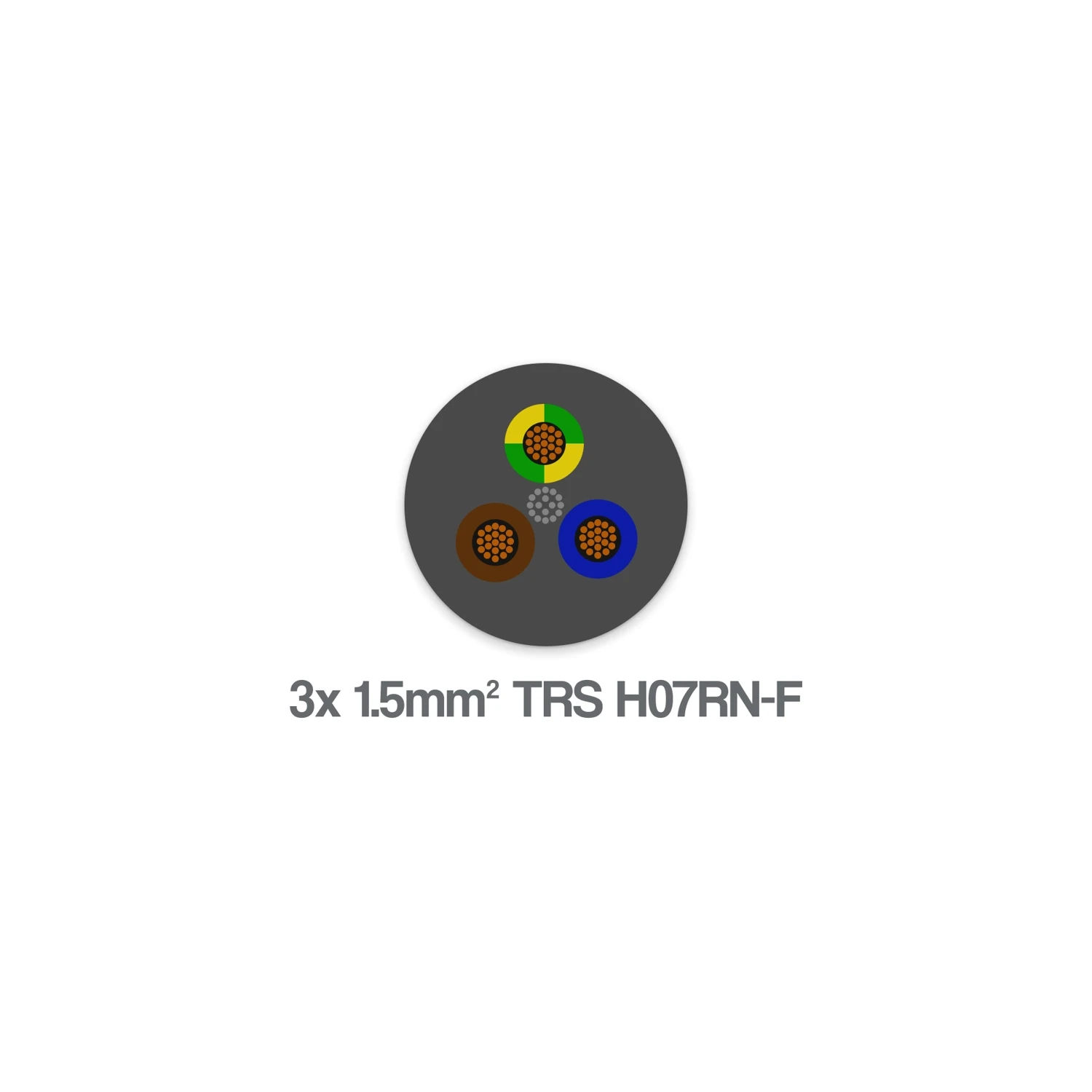

  • 3-core: Brown, Blue, Green/Yellow
  • Class 5 stranded copper, 30⁄0.25mm
  • OD: 8–10.4mm
  • Temp range: -30°C to +90°C fixed / -15°C to +90°C flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Conductor Type

Class 5 flexible stranded copper

Stranding

30/0.25 mm

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

8 mm – 10.4 mm

Weight

165 kg/km

Voltage Rating (Fixed)

0.6/1 kV

Voltage Rating (Flexing)

450/750 V

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
