SYL-Flex 3 Core 1.5mm2 300 500V Clear Screened Control Cable

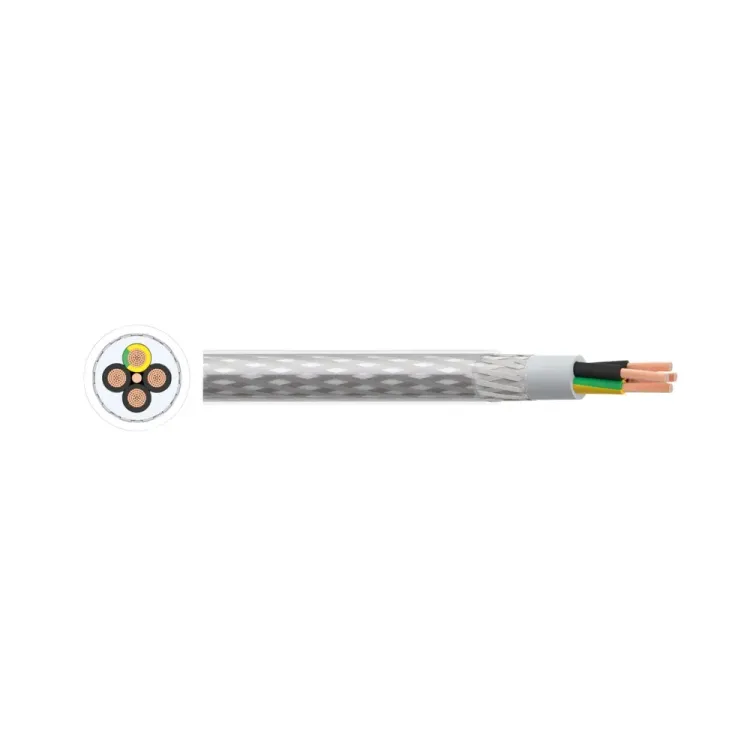

Photo is representative

SYL-Flex 3 Core 1.5mm2 300 500V Clear Screened Control Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3X1.5SYL
GTIN —
Stock status: In stock

priced per meter

Net price: £1.41

Gross price

£1.69

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SYL-Flex 3x1.5mm² screened control cable for interconnecting fixed and mobile equipment. Suits conveyors, assembly lines, production lines, and machine tool installations. Indoor and outdoor rated — protect from direct sunlight outdoors.

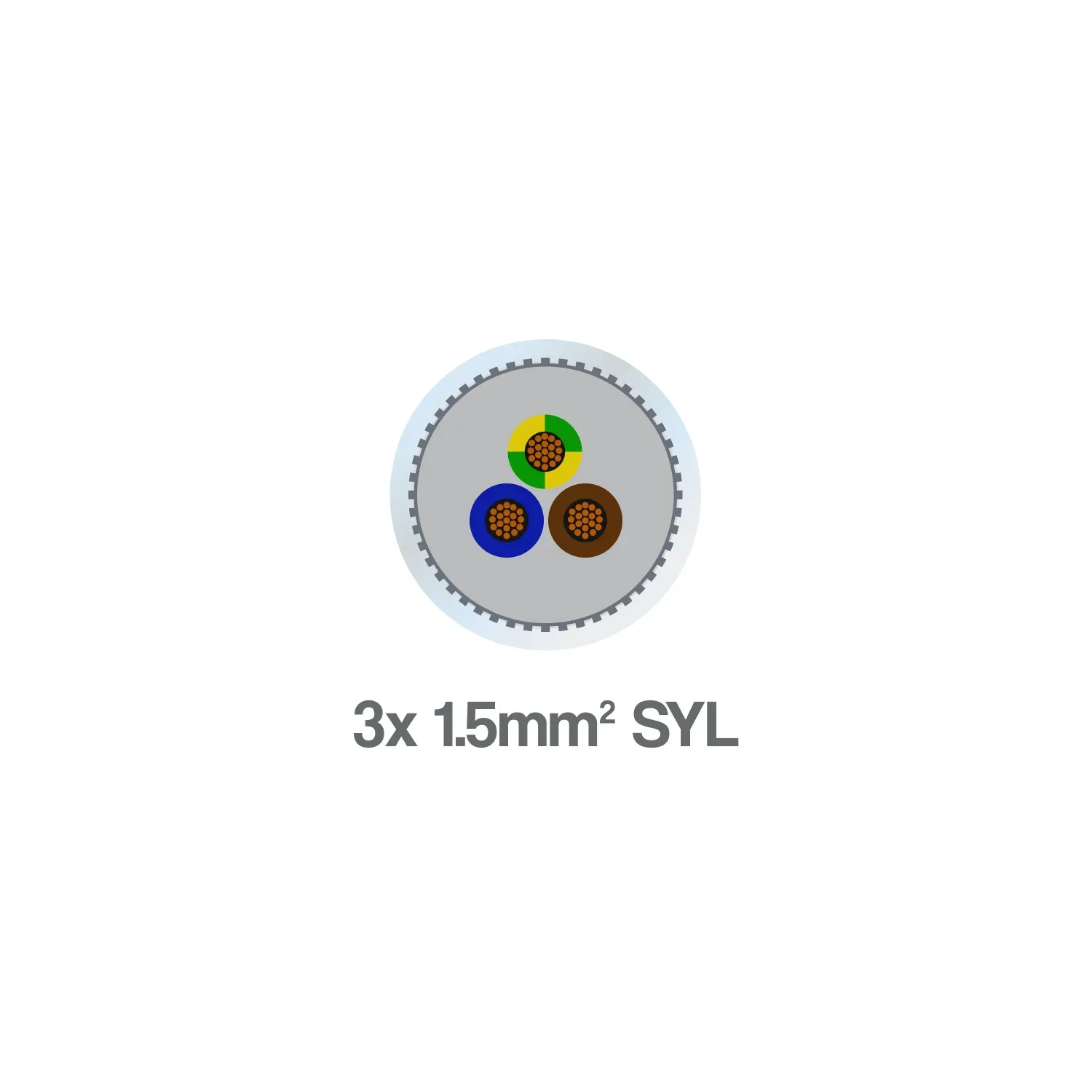

Galvanised steel wire braid provides mechanical protection. Transparent PVC outer sheath. Core IDs: Brown, Blue, Green/Yellow.

  • 18A current capacity at 30°C in air
  • Static temp range: -20°C to +80°C — flexing: -5°C to +70°C
  • 20mm/16mm gland size
  • Compliant with BS EN 50525-2-11 / VDE 0250
Specifications

Number of Cores

3

Conductor CSA

1.5mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

30/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

18A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Outside Diameter

8.60mm

Weight

143 kg/km

Gland Size

20/16mm

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Blue, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
