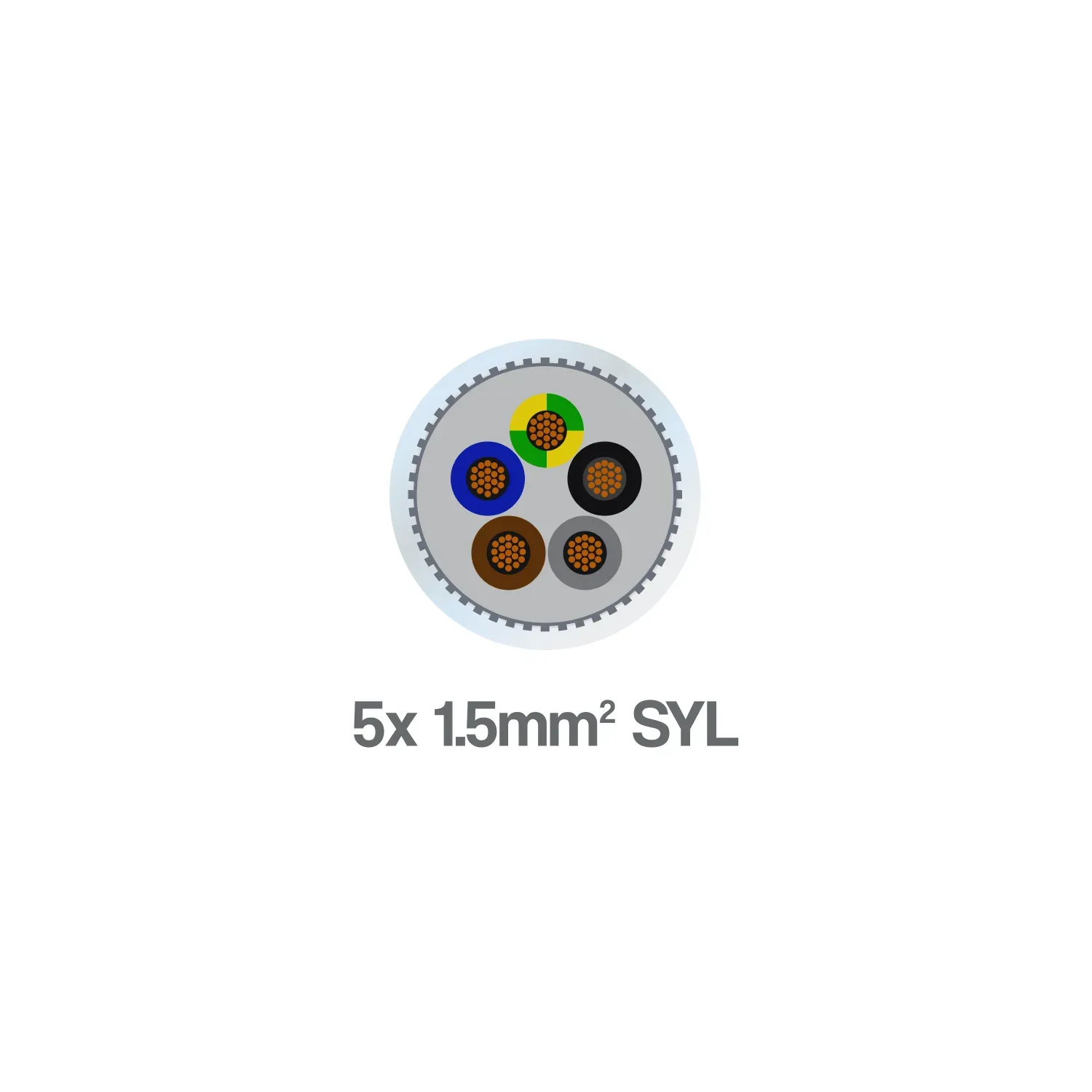

SYL-Flex 5 Core 1.5mm² 300 500V Clear PVC Screened Control Cable

Photo is representative

SYL-Flex 5 Core 1.5mm² 300 500V Clear PVC Screened Control Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 5X1.5SYL
GTIN —
Stock status: In stock

priced per metre

Net price: £2.25

Gross price

£2.70

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5-core 1.5mm² SYL-Flex screened cable for interconnecting fixed and mobile equipment — conveyors, assembly lines, machine tool manufacture. Galvanised steel wire braid armour gives mechanical protection. Suitable for indoor and outdoor use when protected from direct sunlight.

Transparent PVC sheath with PVC bedding and PVC core insulation. Plain annealed stranded copper conductors, 30⁄0.25mm stranding.

  • 300/500V rated, 18A current capacity (30°C, in air)
  • Static: -20°C to +80°C / Flexing: -5°C to +70°C
  • Cores: Brown, Black, Grey, Blue, Green/Yellow
  • Gland size: 20/16mm
Specifications

Number of Cores

5

Conductor Size

1.5mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

30/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

18A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Outside Diameter

10.00mm

Weight

173 kg/km

Gland Size

20/16mm

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
