SYL-Flex 4 Core 1.5mm2 300 500V Clear Screened Galvanised Steel Braid Control Cable

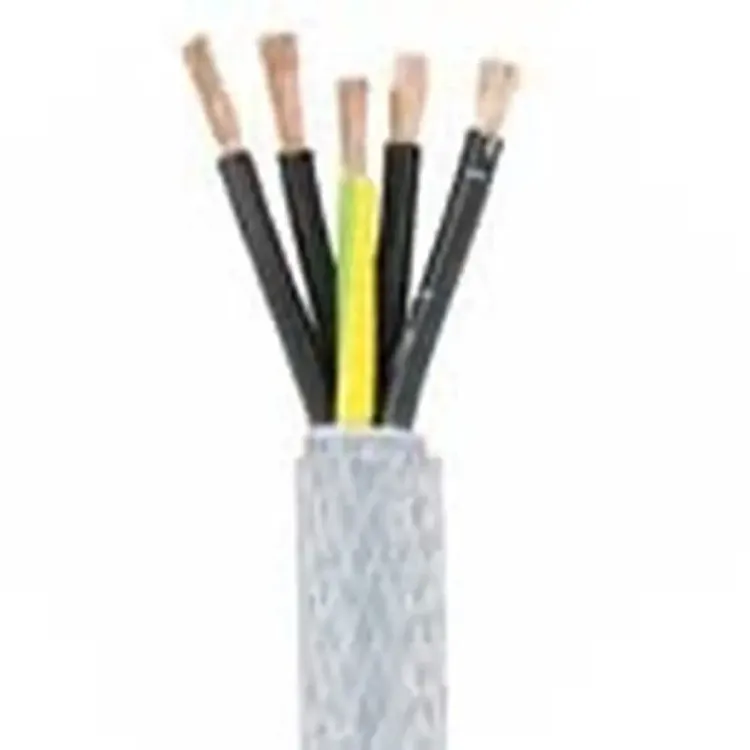

Photo is representative

SYL-Flex 4 Core 1.5mm2 300 500V Clear Screened Galvanised Steel Braid Control Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4X1.5SYL
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.77

Gross price

£2.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

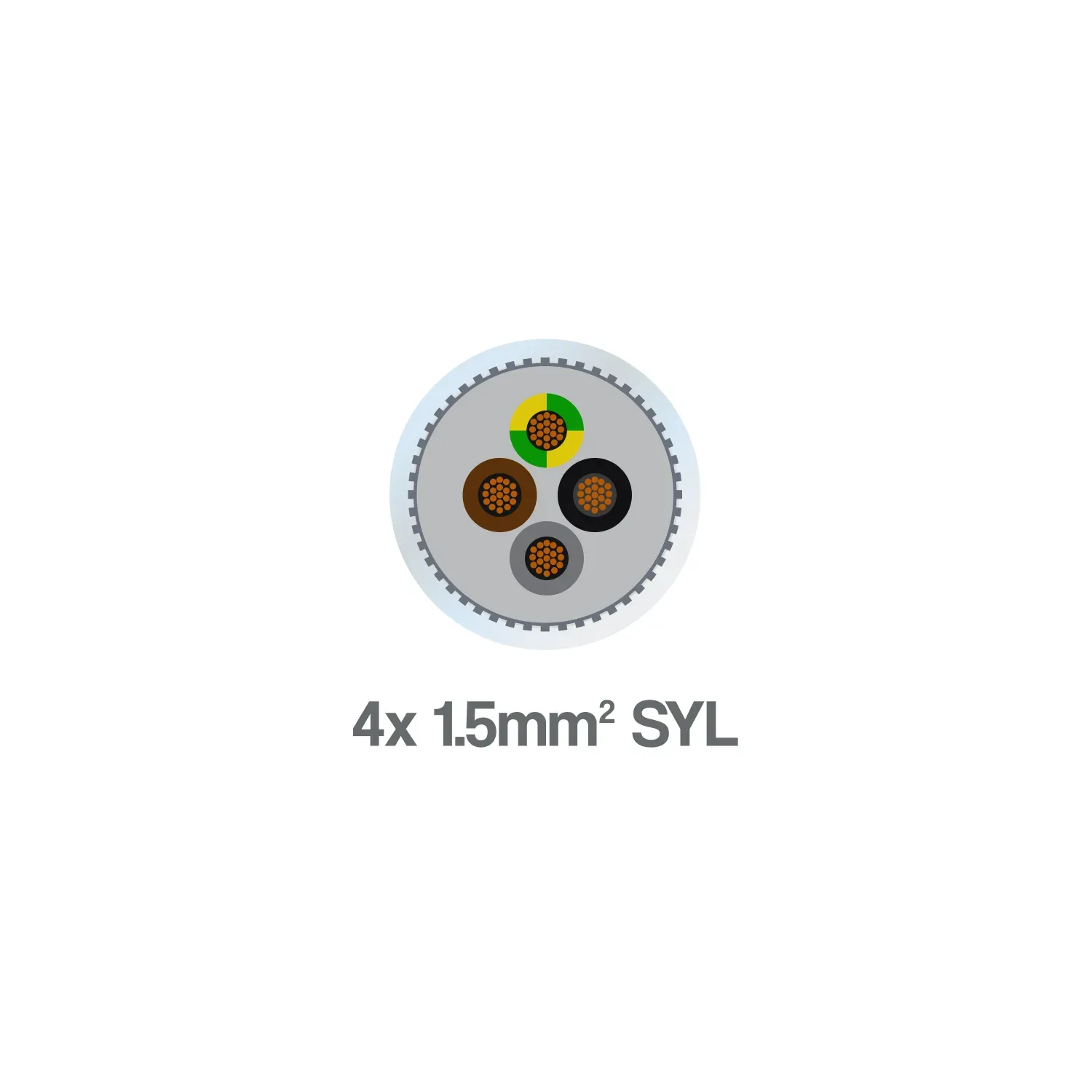

4-core 1.5mm² SYL-Flex armoured control cable with galvanised steel wire braid over PVC bedding and transparent PVC outer sheath. Rated 300/500V.

Suited to interconnecting fixed and mobile equipment — conveyors, assembly lines, machine tools, production lines. Rated for indoor use and outdoor use when shielded from direct sunlight.

  • Conductors: Plain annealed stranded Cu, 30⁄0.25mm (Class 5 flexible)
  • Current capacity: 18A at 30°C in air
  • Static operating temp: -20°C to +80°C | Flexing: -5°C to +70°C
  • OD: 9.30mm | Gland size: 20/16mm
  • Core ID: Brown, Black, Grey, Green/Yellow
Specifications

Number of Cores

4

Conductor Size

1.5mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

30/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

18A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Outside Diameter

9.30mm

Weight

170 kg/km

Gland Size

20/16mm

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Black, Grey, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
