3 Core 2.5mm LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

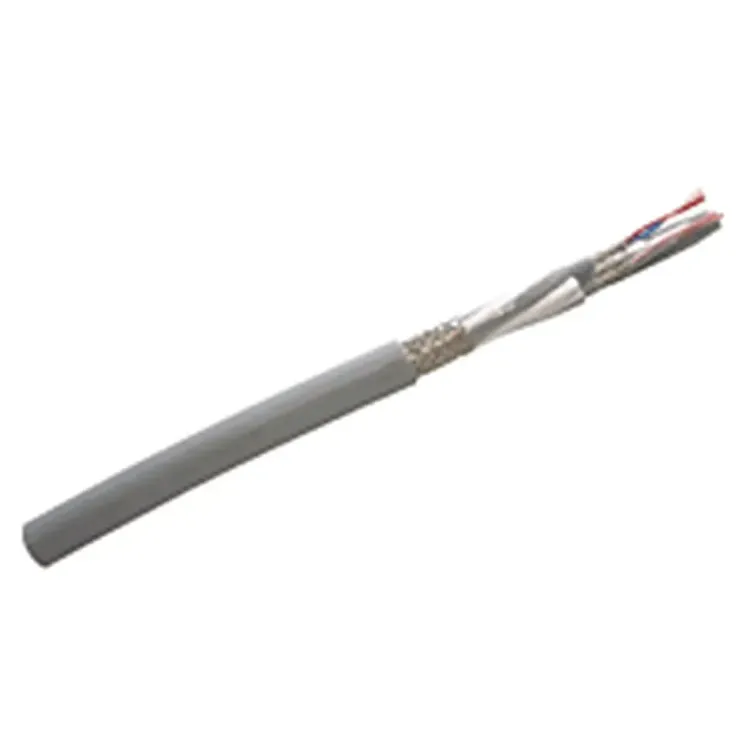

Photo is representative

3 Core 2.5mm LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.48

Gross price

£2.97

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LIYCY screened flexible control cable, 3 core 2.5mm², grey LSZH sheath. Rated 300/500V to BS EN 50525-3-11 / VDE 0250.

Suited to EMC-sensitive control and signal circuits where fire safety matters — LSZH construction cuts toxic gas and smoke output in a fire. Tinned Cu braid screen provides interference protection. Includes green/yellow earth core.

  • 32A CCC (in air at 30°C)
  • OD 8.40mm — gland size 20/16mm
  • Flex temp range: -5°C to +70°C
  • Conductor resistance: 7.98 Ω/km at 20°C
  • Voltage drop (3⁄4 core AC): 15 mV/A/m
Specifications

Voltage Rating

300/500V

Cores

3

Conductor CSA

2.5mm²

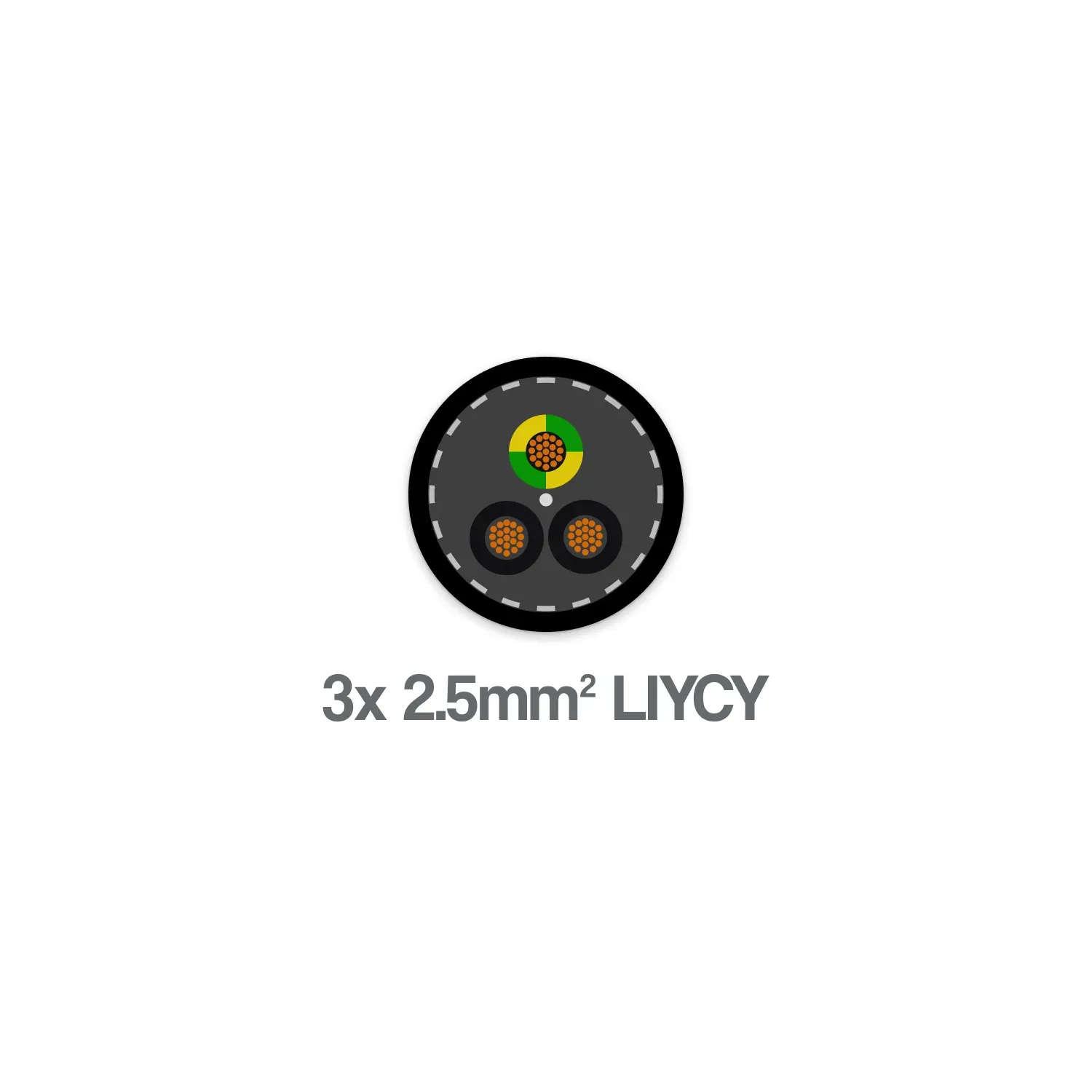

Core ID

2 black numbered cores + earth (green/yellow)

Stranding

50/0.25mm

Conductor Material

Plain annealed flexible copper

Insulation

LSZH

Screen

Tinned copper wire braid

Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

8.40mm

Gland Size

20/16mm

Current Carrying Capacity

32A (in air at 30°C)

Conductor Resistance at 20°C

7.98 Ohm/km

Voltage Drop (3/4 core AC)

15 mV/A/m

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Weight

117 kg/km

Standard

BS EN 50525-3-11 / VDE 0250
