5-Core 2.5sqmm LIYCY Cable

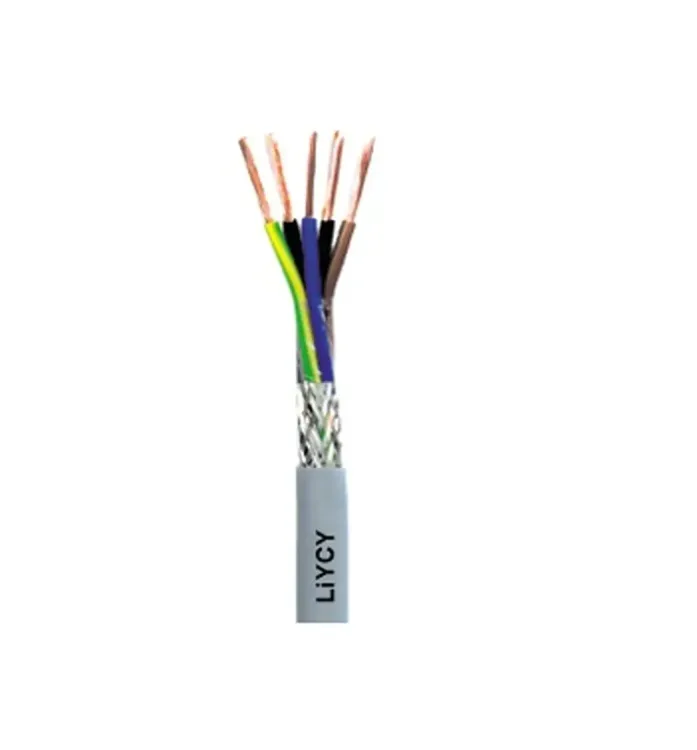

Photo is representative

5 Core 2.5mm LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525LIYCY
GTIN —
Stock status: In stock

priced per metre

Net price: £3.71

Gross price

£4.46

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

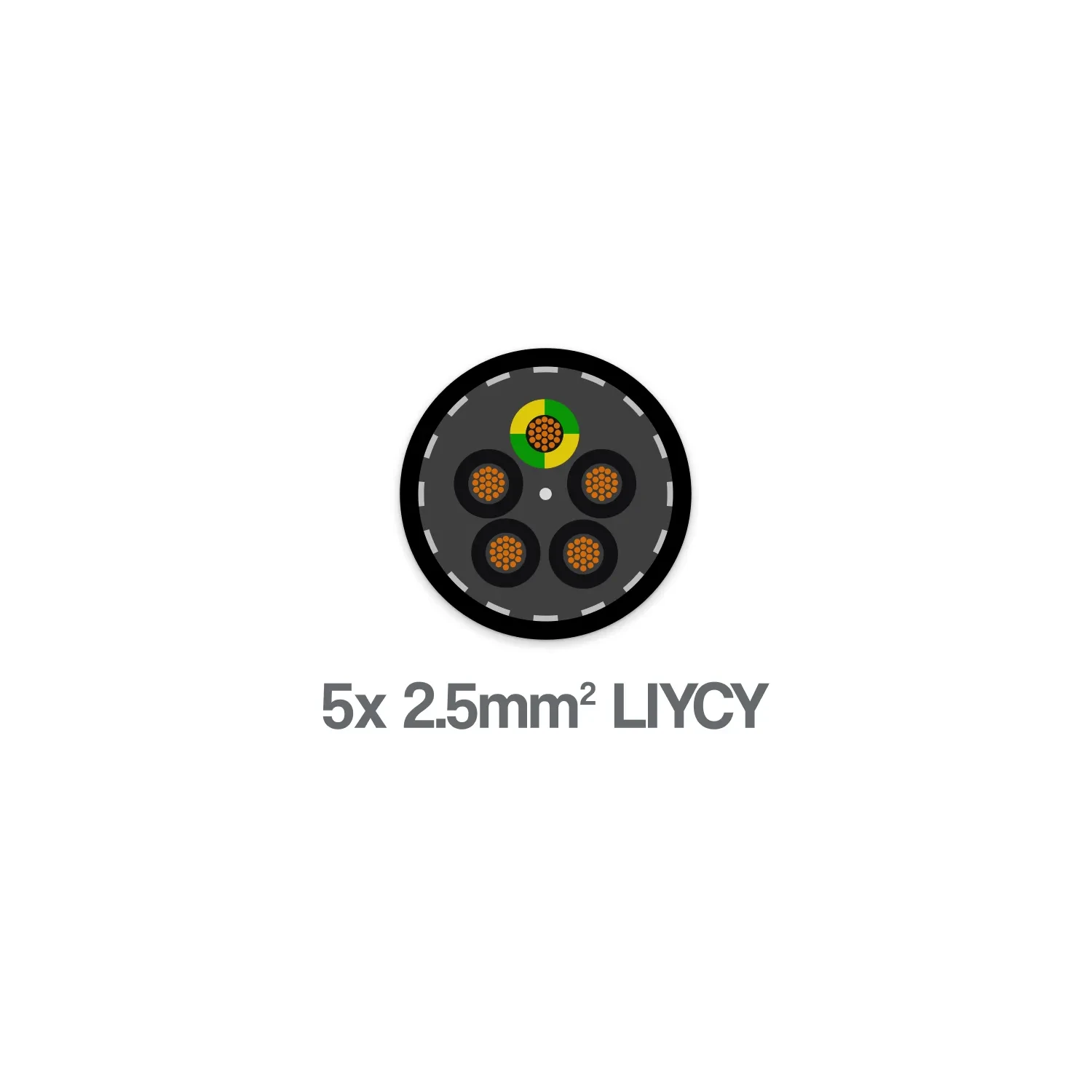

LIYCY screened flexible control cable, 5 core 2.5mm². Four black numbered cores plus green/yellow earth. LSZH insulation and sheath throughout — suitable for fire-critical areas where smoke and toxic gas emission must be minimised.

Tinned copper wire braid screen provides interference protection for signal and control circuits in EMC-sensitive environments — measuring, checking, and control equipment.

  • 300/500V rated
  • 32A current carrying capacity (in air at 30°C)
  • Flex temp range: -5°C to +70°C
  • Conductor resistance: 7.98 Ω/km at 20°C
  • Voltage drop (3⁄4 core AC): 15 mV/A/m
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Number of Cores

5

Conductor Size

2.5mm²

Stranding

50/0.25mm

Core Identification

4 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Current Carrying Capacity

32A (in air at 30°C)

Conductor Resistance at 20°C

7.98 Ohm/km

Voltage Drop (3/4 core AC)

15 mV/A/m
