LIY-CY 4 Core 2.5mm LSZH Screened Flexible Control Cable 300 500V Grey

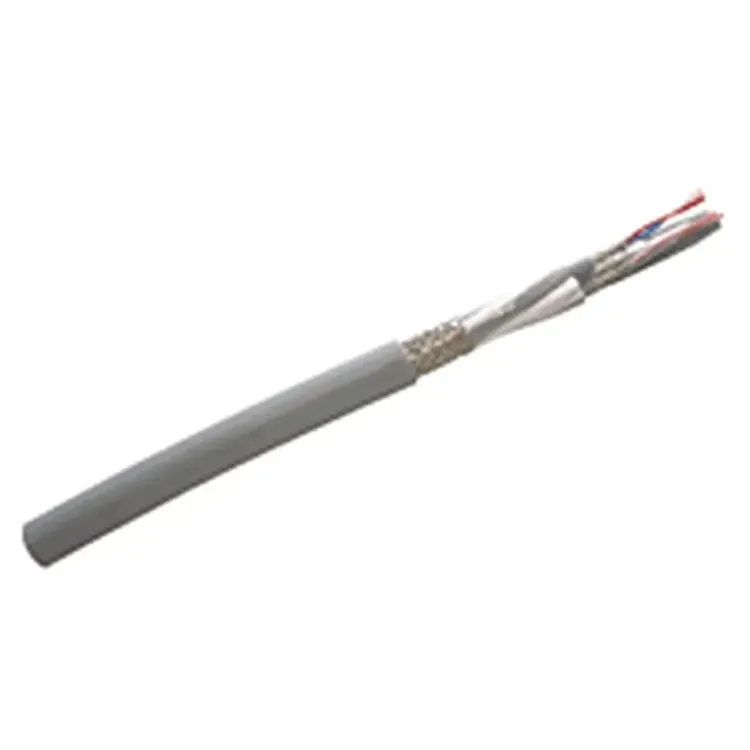

Photo is representative

LIY-CY 4 Core 2.5mm LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.17

Gross price

£3.81

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LIY-CY screened flexible control cable, 4x2.5mm², LSZH insulation and sheath. Rated 300/500V to BS EN 50525-3-11 / VDE 0250.

Suited to control and instrumentation circuits in areas where fire safety is a requirement — LSZH construction limits smoke and toxic gas output in a fire. Tinned copper braid screen provides interference protection for signal and data lines.

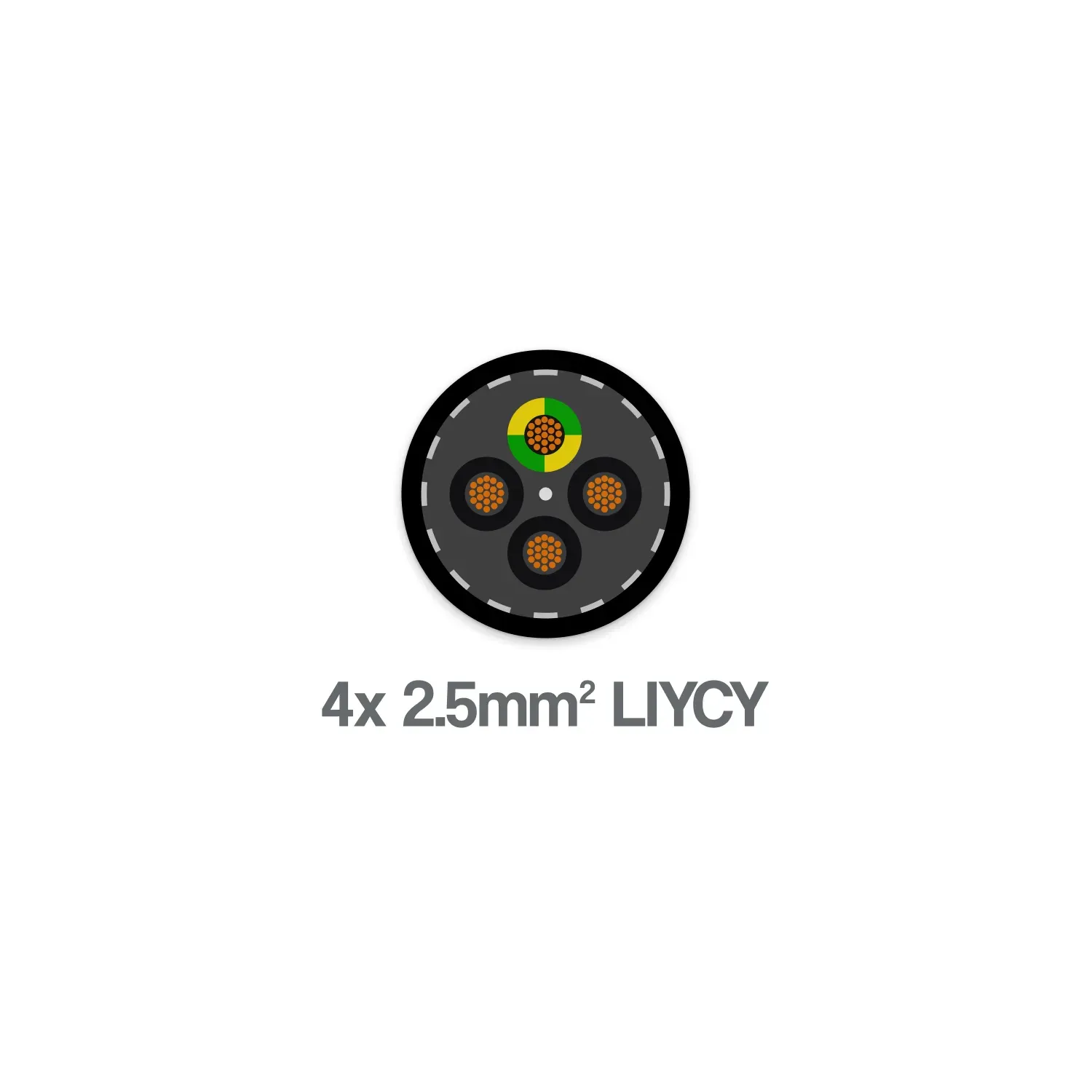

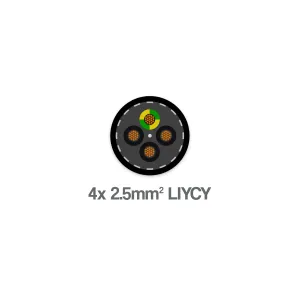

Cores are 3 black numbered plus green/yellow earth, so you’re not spending time re-identifying at termination.

  • 32A current carrying capacity in air at 30°C
  • 9.19mm OD — gland size 20S
  • Flexing temp range: -5°C to +70°C
  • Conductor resistance: 7.98 Ω/km at 20°C
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Number of Cores

4

Conductor Size

2.5mm²

Stranding

50/0.25mm

Core Identification

3 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Outside Diameter

9.19mm

Gland Size

20S mm

Current Carrying Capacity

32A (in air at 30°C)

Conductor Resistance at 20°C

7.98 Ohm/km

Voltage Drop (3/4 core AC)

15 mV/A/m

Weight

168 kg/km
